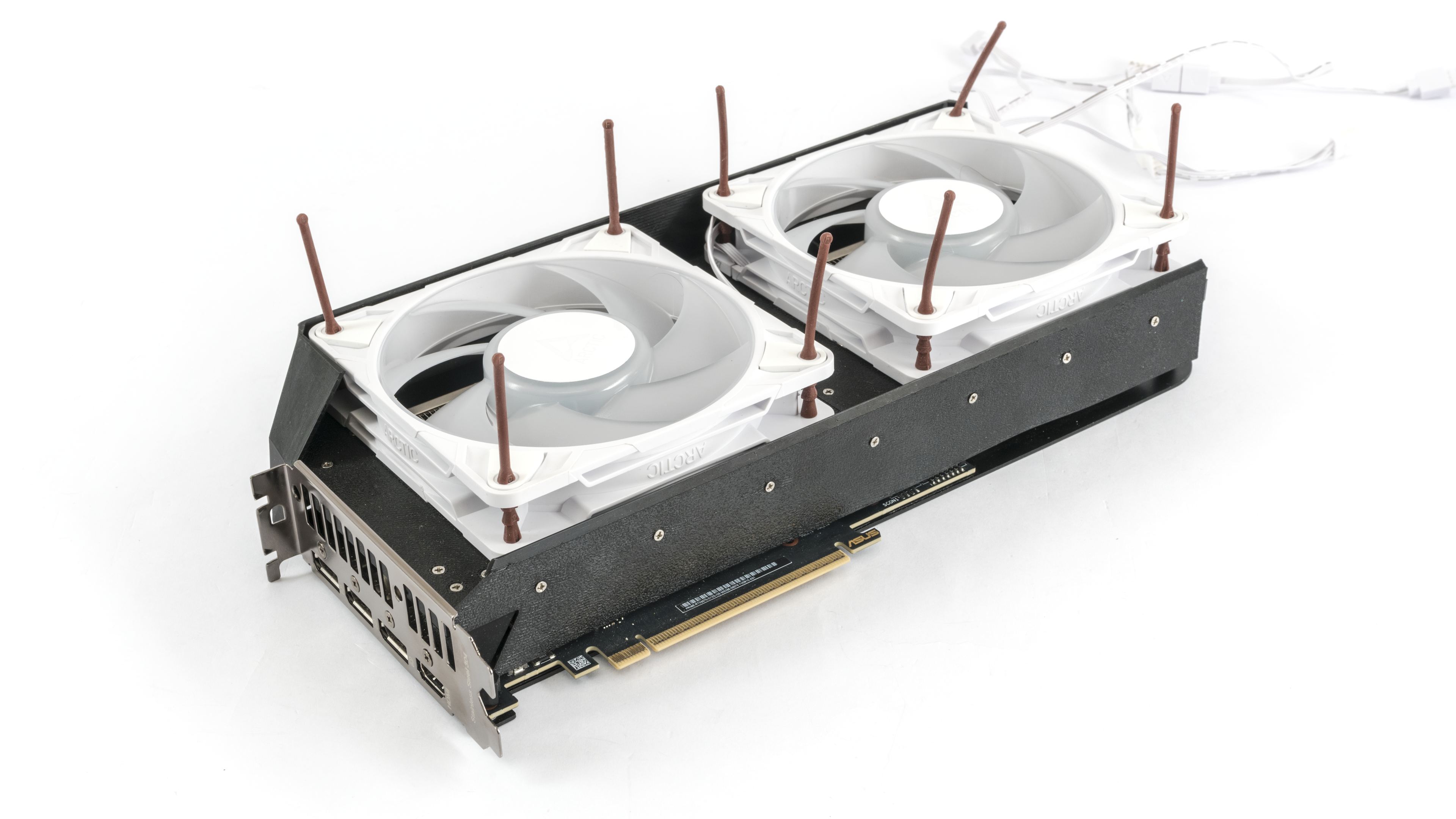

Asus cards such as the Prime GeForce RTX 5070 allow easy removal of the shroud with the fans, without removing the heatsink itself. This opens room for experimentation with cooling.We will find out how much you can gain by replacing stock fans with a pair of 120mm Arctic P12 Pro A-RGB fans. We will measure operating characteristics from 20 to 100% fan speed and see how much the card’s noise level drops at identical temperatures.
In the next set of tests, we will measure the results of the card with a trio of Noctua NF-A9 fans. Before the entire batch, one warm-up loop runs with three passes and fan output set to 40%. This is not visible in the graphs below; they start only with the first measurement with fans set to 100% output. Their performance is then gradually reduced down to 20%. Below that it usually no longer makes sense, because at low fan speeds and GPU temperatures above 85 °C, regulation already begins to significantly throttle GPU power and with it clocks and performance. Between individual test runs there are delays of only a few seconds, so the system remains warmed up during testing.
Manual fan settings, Fan Speed from 100 % to 20 %, increments 5 %
How the operating characteristics of the card change after replacing the fans will be measured across the entire fan performance range. For time reasons, I will use short loops of the Cyberpunk benchmark with the RT Medium profile and a resolution of 2560 × 1440 pixels with DLAA.
Measured values will be taken from the third loop, exceptionally from another one if there is some problem with the last measurement.
In this chapter, we will look at a summary of operating characteristics across the entire fan performance range. These are only simple images; detailed results for individual settings are available in the interactive graphs in the following chapter.

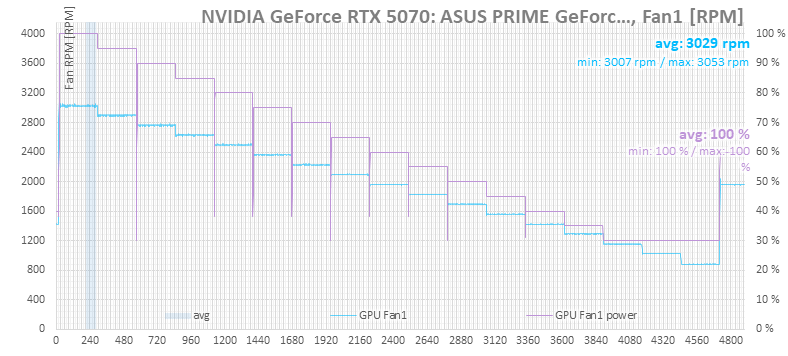

In the graph showing fan output, you can see how the manually set speeds follow the fan performance.
The next graph shows CPU temperatures. Even here, it is evident that higher fan output on the graphics card contributes to lower CPU temperatures.

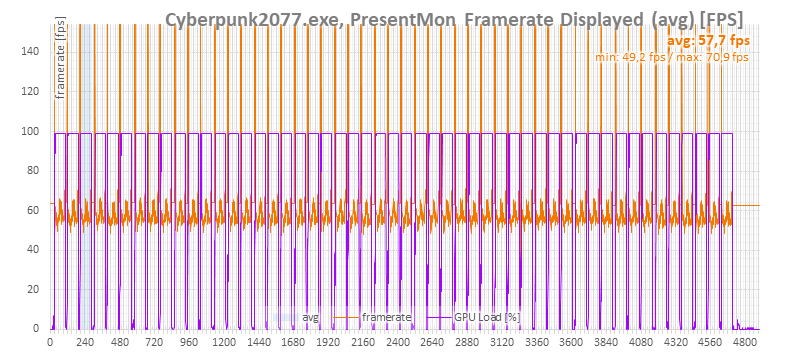

Performance differences do not change dramatically.

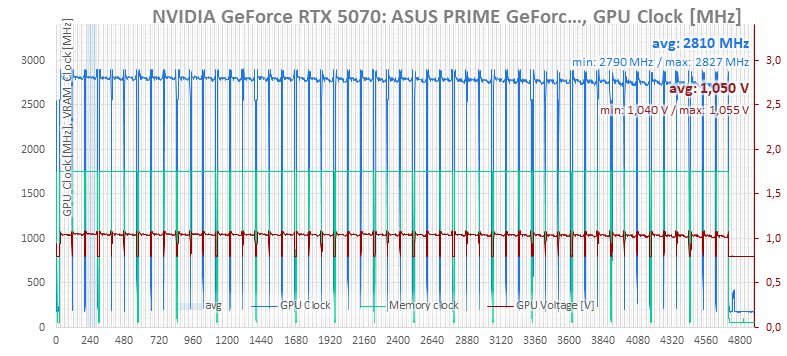

From the GPU clock graphs, it is apparent that higher cooling performance means slightly higher clocks.
The card’s performance is clearly capped more by the power limit, despite the fact that boost indicators refer to a maximum voltage limit.
⠀
