Alongside our previous tests of premium 92 mm Noctua fans, we’re adding something for value-focused users. For the more affordable Prime-series card, these are a better match. We’ll measure how much quieter the card gets after swapping the stock fans for budget 92 mm Arctic P9 PWM PST models with sleeve bearings, and compare the noise to the Arctic P9 PWM PST CO variant with dual ball bearings for continuous operation.
Final thoughts

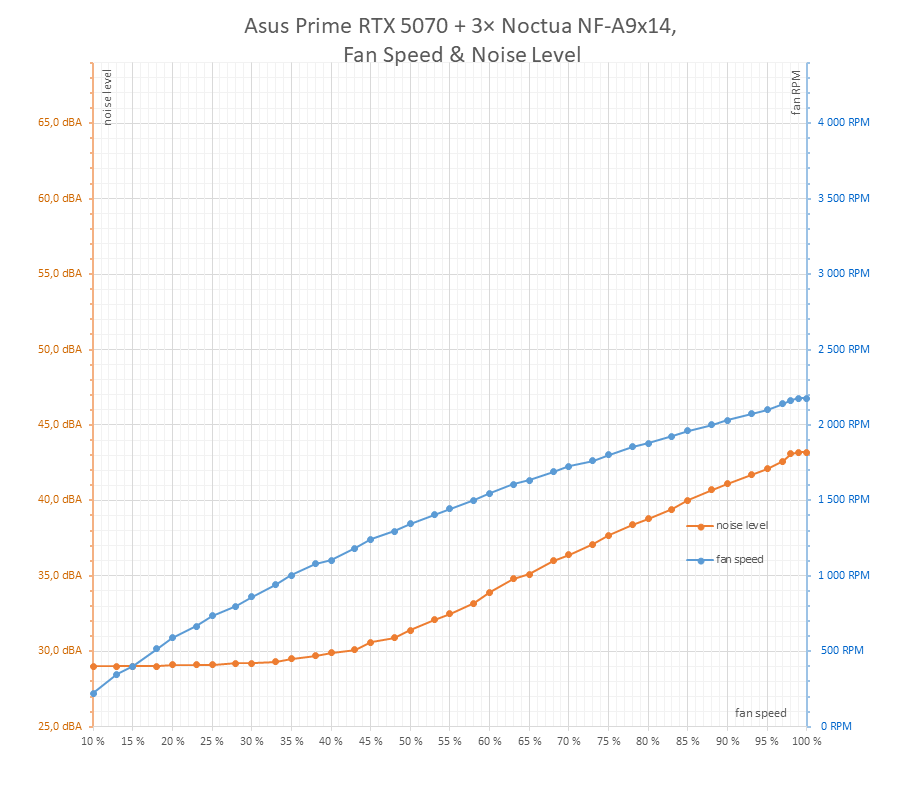

And finally, a comparison in a graph that summarizes how the card’s noise level changed at identical temperatures after replacing the original Axial-Tech fans. I remind you that this was a sample with lower-quality fans, in which one fan produced noticeable rattling and showed 32 dBA on the sound level meter even at minimum speed. I also tested a second sample, which performed better in terms of noise, but even there the minimum was still around 31 dBA.
JHow the card’s noise level shifts at the same temperatures can be seen in the graph below. On the horizontal axis is cooler noise, and on the vertical axis are the GPU temperatures. The graph shows the relationship between noise and the average temperature reported by the GPU temperature sensor over the entire measured interval. The peak value of the GPU average temperature sensor is almost always 1–2 °C higher.
At the highest temperatures (and lowest fan speeds), it appears that all fans are practically identical in terms of noise. But this is a measurement limitation: from a noise perspective, all fans in the 200–800 rpm range are so quiet that they cannot be properly distinguished with the sound level meter used, as its measurement range starts at 30 dBA. With a Class 1 sound level meter with a lower minimum measurement threshold, I would likely measure a more pronounced lead for both Noctua fans at GPU temperatures above 75 °C.
Above 30 dBA, where we move past the sound level meter’s own noise floor, it can already be stated with certainty—and clearly seen—that the taller 25 mm fans are slightly louder. This applies to both the Arctic P9 and the NF-A9, with the Arctic P9 PWM PST CO variant with ball bearings performing a bit worse still.
At higher fan speeds corresponding to GPU temperatures between 75 and 70 °C, the Noctua NF-A9 and Arctic P9 PWM swap positions. Beyond that point, the overall noise of the Arctic P9 follows that of the Noctua NF-A9x14, and both solutions are quieter than the stock fans, while the older NF-A9 reaches a similar noise level to the original Axial-Tech fans.
With the tested Noctua fans, however, it is not possible to push the GPU temperature below 63 °C even at their maximum speeds. The Arctic P9 can continue to higher speeds and at maximum output, around ~3000 rpm, you can reach approximately 61 °C.
What surprised me quite a bit is that even at maximum speeds, the Arctic P9 fans cannot reduce temperatures as much as the original Axial-Tech fans. Noise at identical temperatures remains slightly lower, but in terms of absolute maximum performance, the Arctic solution still lags somewhat behind.
At higher output levels of the Arctic P9 fans, one unpleasant characteristic emerges—at certain speeds, an audible higher-pitched tone stands out from the normal fan noise. You can probably best imagine this based on the recording from the UMIK microphone: in the first part, the fans are running at 1 % lower output, where the whistling has not yet started; after increasing the output by one percentage point, the fan already begins to whistle.

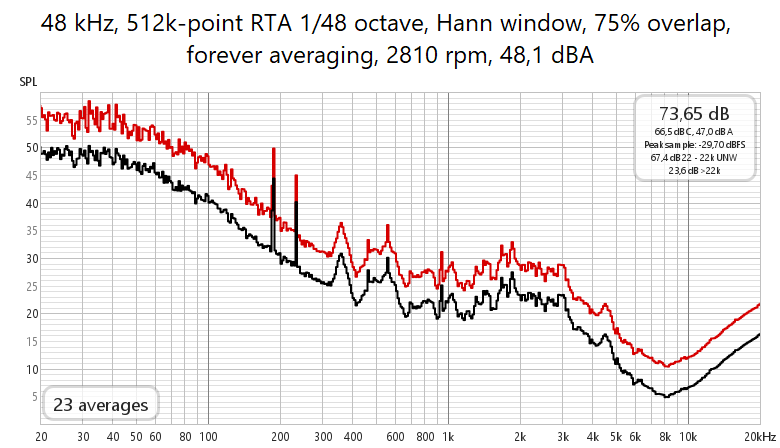

Below are graphs showing the frequency spectrum near maximum speeds around 2700 rpm and 2800 rpm—the lower speed corresponds to the whistling heard in the recording, but it is enough to slightly increase the speed and the whistling disappears.
And the fans behave similarly with both bearing types. It is particularly clearly audible around 2300 and 2700 rpm.

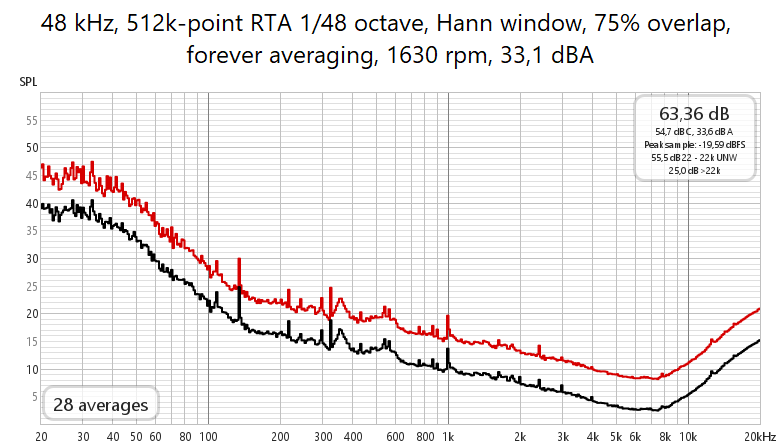

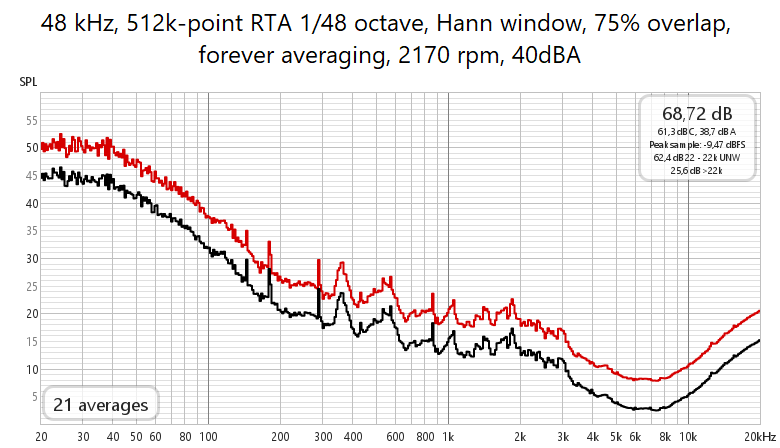

At lower speeds, the tone begins to blend into the usual aerodynamic “noise.” Below are also graphs with frequency spectra at speeds corresponding to 33, 36, and 40 dBA as measured by the sound level meter.
You can minimize the whistling sound by keeping fan speeds lower, where it is not noticeable, or by setting the control curve so that the fans do not linger in the critical ranges.
The result is two pieces of good news: if you are looking for a quieter alternative to the original fans and do not have space under the card for 25 mm fans, the Noctua NF-A9x14 performs better in terms of noise at identical temperatures than the Arctic fans. And if, on the other hand, you do not want to spend much, you can easily buy a trio of Arctics for the price of a single NF-A9x14.
If you do not intend to push the fans beyond roughly 1400 rpm, there is no major difference between them at a typical listening distance in terms of overall noise (dBA). Noctua performs better, but we are operating at noise levels where, for most people, it will be six of one, half a dozen of the other, and you will only find differences if you deliberately look for them. In normal day-to-day use, you will not notice them.
If price is not a concern and your priority is a more refined acoustic profile, you need silence, and you are used to keeping the fans on your cards somewhere around 800 rpm, then opt for the Noctua NF-A9x14. Overall, they behave more cultivated at identical temperatures—just at a much, much higher price.

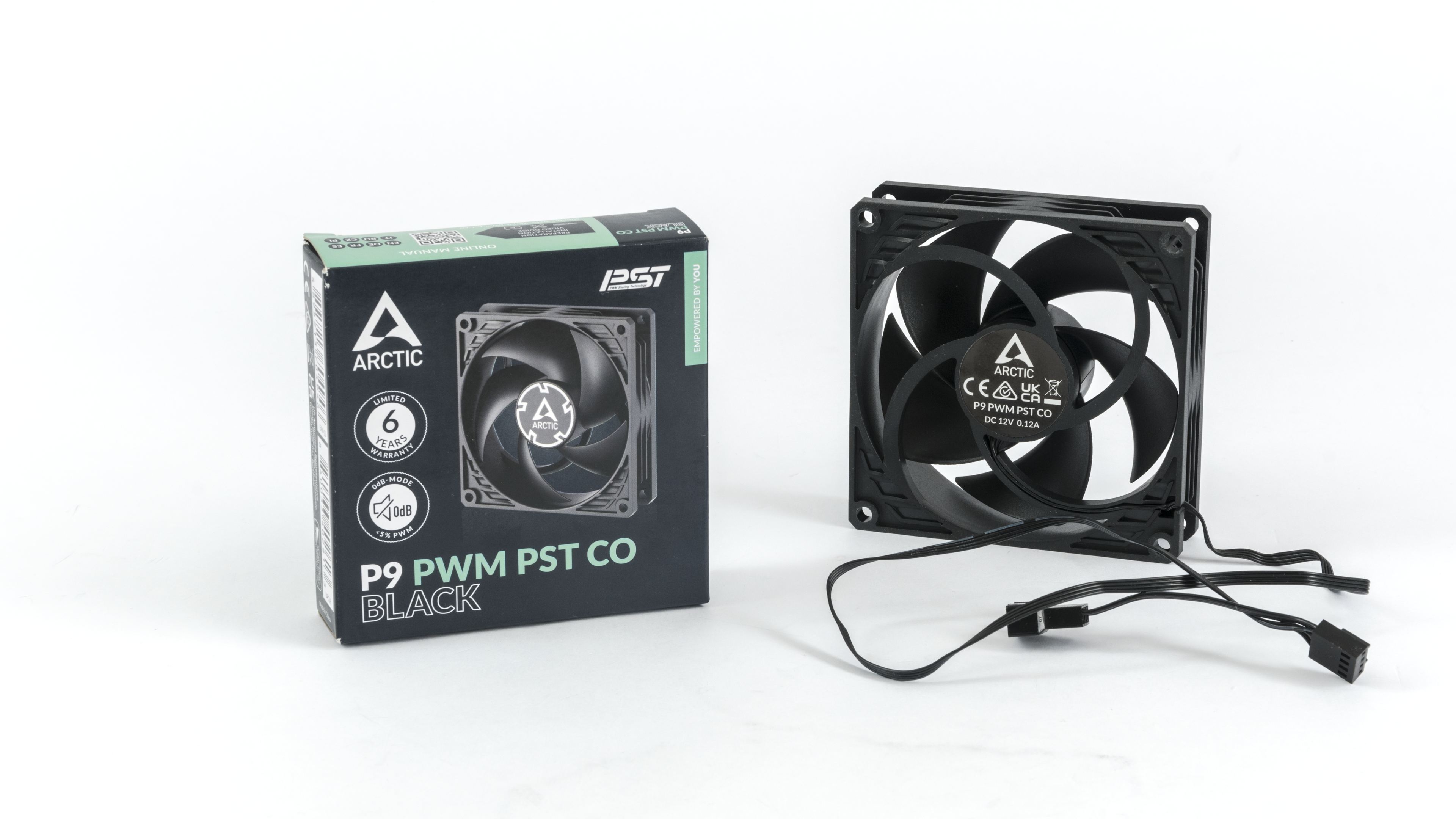

Arctic P9 PWM PST CO (dual ball bearing)
Alongside the standard P9, I also included the more robust Arctic P9 PWM PST CO with dual ball bearings, intended for more intensive operation. The design is the same; the difference lies in the impeller mounting.
I was mainly interested in whether, and by how much, they would be louder. The difference is not large, but it is noticeable, manifesting as the characteristic sound of fans with ball bearings. Because of this, their overall noise level is also slightly higher. Again, it is not so intense that you would notice it unless you focus directly on it, but if fans with ball bearings bother you for this reason, definitely go with the standard Arctic P9.
Arctic P9 PWM PST | Arctic P9 PWM PST CO (dual ball bearing)

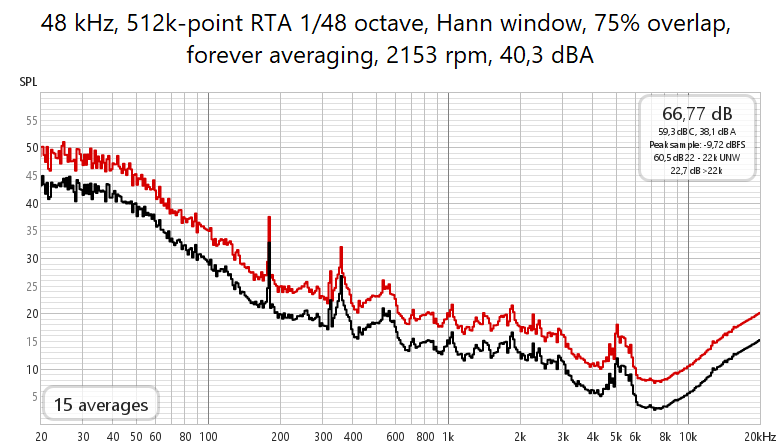

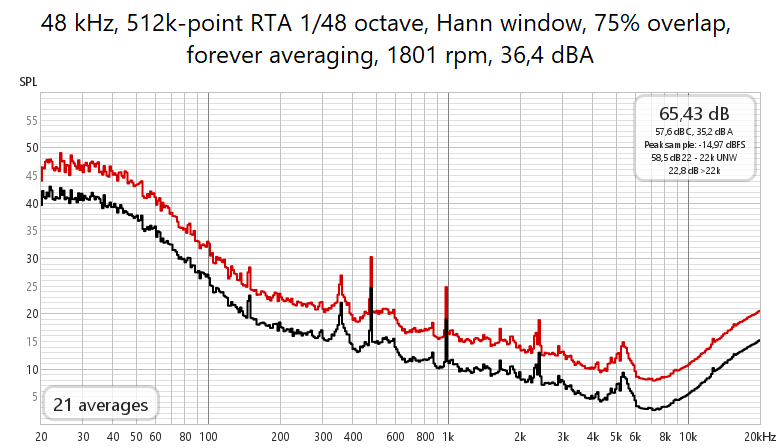

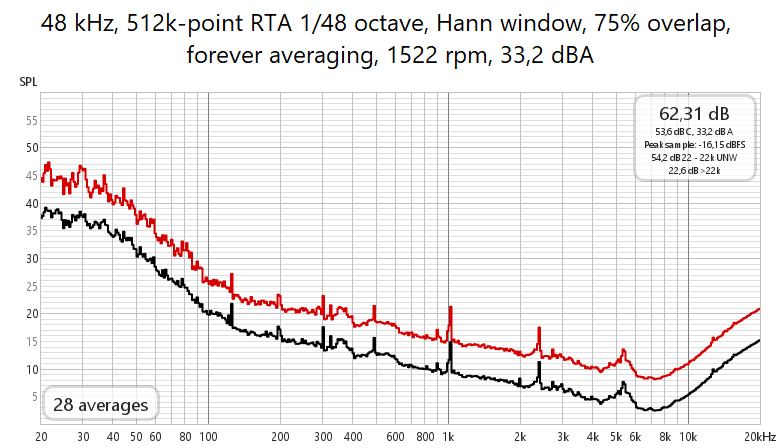

Arctic P9 PWM PST CO: noise spectrum at 33 dBA, 36 dBA, 40 dBA, and at maximum RPM
You can find their results in the graphs below.
Alongside the test of premium 92 mm Noctua fans, today we are also adding something for ordinary users. For a card from the more affordable Prime lineup, these will certainly be a better match. We will measure how much the card can be quieted by replacing the fans with cost-effective 92 mm Arctic P9 PWM PST fans with sleeve bearings, and whether—and how—their Arctic P9 PWM PST CO variant intended for higher loads with dual ball bearings differs in terms of noise.
English translation and edit by Jozef Dudáš
⠀
I’m very grateful for this test. I always lacked motivation to check how much better my temperatures actually are after a deshroud and if using 92 mm fans might be a better option. I just always went straight for 120 mm fans, even though they were sticking out, because of the “bigger = better” assumption and both temperatures and noise were always better than with stock fans. Recently, however, I finally managed to gather the determination to roughly compare a deshroud with 2× Phanteks T30 versus 3× Arctic F9, and the results align with what was tested here. Is this the end of this saga/series, or are there still some other fan models lined up for testing?
note: the test with 2 x 140 mm fan was performed on a different graphics card. 😉
May I be curious and ask how the comparison went for you: 3 x 92 P9 vs 2 x 120 T30?
At similar room temperatures, 2x T30 (mounted in a printed shroud where fans was fully enclosed inside) reached a maximum of 85.2*C and an average of 83.3 °C with a peak power draw of 306.3 W, while 3x F9 reached 84.2*C max and 81.3*C average with a peak power draw of 312.7 W.
Test was ran by loading a CP2077 save at maximum graphic settings with path tracing enabled, without moving the character or camera, and letting it run like that for nearly an hour. The results were collected via HWiNFO64, which was reset immediately before pressing the key to load the game. Fans speeds were fixed at comparable noise levels, measured using a smartphone app. Iirc ~1250 rpm for T30 and ~1500 rpm for F9.
However, the result is not precise because I did not control temperature in the room. I only measured it with a simple rectangular meter with a humidity readout, which accuracy is questionable. The same applies to the consistency and accuracy of in-room sound level measurements taken with a smartphone app. That is why I am particularly interested in whether these results were just coincidence caused by external factors, or whether they reflect a real difference.
nice work, thank you very much for your input 👍 😉
I’d like to add my thanks as well—very nice documentation. Cyberpunk 2077 will (probably) be a serious stress test that really pushes the graphics card almost to its very limits. 🙂
Exactly. CP2077 was a good non synthetic stress for card as it never came close to 60 FPS and iirc never crossed 50 FPS mark and always was 99% loaded. Thanks for kind words and you’re welcome 🙂
Lower temperatures don’t necessarily mean more efficient cooling. Control over GPU clock speeds is also important—we address this in CPU cooler testing as well. Power draw in watts is, of course, important too, but it doesn’t allow for a clear-cut conclusion that “more is better.” Higher power consumption can often be driven by greater thermal losses precisely because cooling efficiency is lower. That said, I’m referring here to experience with processors running on motherboards. 🙂
I definitely agree! When I saw how long my comment become, I deliberately limited it to reporting only the power draw, assuming it would give a sufficient picture under assumption that higher power draw translates into higher clocks. As you rightly pointed however higher temperatures also mean lower power efficiency, which in turn leads to higher power consumption. This is very easly observable with CPUs. Der8auer once did a test on this and visualized it very well.
Thats said, to complete the picture, here are the recorded clock results for those configurations:
2x T30: core 3135 MHz max, 2833.5 MHz average; Memory temps: 76*C max, 74,1*C average.
3x F9: core 3202 MHz max, 3015.2 MHz average; Memory temps: 76*C max, 73,8*C average.
In both setups memory clocks were stable at 2833.5 MHz through whole time. I should also add that the GPU is a 5070 Ti with OC set to +400 on core and +3000 on memory in MSI Afterburner.
Now… the winner…in your case is incontrovertibly clear 😉
The fact that higher power consumption does not automatically mean higher CPU clock speeds can also be seen in our cooler tests. Beyond a certain point, as temperatures increase, power consumption may continue to rise while CPU core clock speeds sometimes start to drop. 🙂
As far as 92 mm fans go, that’s probably all for now—but tests with Arctic P12 Pro fans will likely appear soon. 🙂
…and maybe, if I’ve motivated Adam enough 🫣😀😉,
…a test with 2 140mm fans will appear later
Coolermaster has a custom ASUS built series of 5080 cards with a shroud specifically designed to enable swapping out the fans with standard 120mms with accommodations for standard thickness and other marques of fan. I wish other companies, like say, Sapphire would jump on this train.
I’ve seen that solution from CM and I really regret that it’s only a prototype/visual concept with no plans to bring it to market but that would be absolutely fantastic! Personally, I could even live with the same pricing and no stock fans included, as long as I could install my own, let’s say, 10-32 mm thickness range if only that became a standard. Ideally, though, the best solution would be something like with AIOs: you have the option to mount your own fans, but there are also “off-the-shelf” fans included out of the box.
Cooler Master likely has more motivation than Sapphire to produce graphics cards like this. They have their own fans that can be used, whereas Sapphire doesn’t really focus on offering standalone fans in its portfolio. 🙂
End user replacable fans *are* a feature that’s proliferating on modern radeons IIRC, so it may be less of a leap – especially as Sapphire has marketed CPU coolers outside of the global north before. Getting into the chassis fan market isn’t that improbable for them I’d think, if they want to diversify. IIRC, I’ve heard good things said about their cooler fan designs too, so they may be able to field some credible offerings too, with that experience.
Perhaps the possibility of entering the global CPU cooler market is closer than it seems
https://www.sapphiretech.com/en/consumer/nitro-s360a-aio-cpu-cooler
This is not new one, but it is on the global EN web
Review (TPU) from 2022
https://www.techpowerup.com/review/sapphire-nitro-s240-a-aio-liquid-cpu-cooler/
Hopefully, Sapphire AIO coolers will eventually make their way to our market as well, similar to their motherboards. 🙂
Yes, Sapphire has been involved in cooling solutions—at least in the past—when it comes to CPU coolers. However, the Vapor-X model apparently didn’t gain much traction on the market, and that may be one of the reasons why their motivation to continue in this segment declined. 🙂
The removable fans on Nitro+ graphics card coolers are excellent, and personally, I’m really rooting for Sapphire to push things to the next level. 🙂
Hi hwcooling,
What a gooood job that you made here !
I think that if you want to have a better cooling, one of the good update is to add extra rear fan (without the backplate) to help the right fan to extract hot air !
I think that if you try that, the cooling will be better !
(Sorry for my baaaddd english 😬)
well, existing examples do not support this assumption… 😉
https://www.hwcooling.net/en/aorus-geforce-rtx-5080-master-whats-the-fourth-fans-benefit/4/
the thickness of the heatsink and its density do not require a pull-push setup…
moreover, the proximity of two fans that would spin at the same speed can lead to so-called beat frequency (When two waves (like sound waves) with close frequencies combine, they constructively and destructively interfere.)
We addressed the benefits of a fourth fan on the RTX 5080 Master graphics card cooler here, as Bufo also points out. 🙂
Any chance of you releasing the stl files? Or, preferably step files so we can make changes. There are a few Asus prime shrouds out there but I really think the way you separated the legs as separate parts is clever. And looks good too.
Thx.
I plan to make it available for download here and on Printables in two weeks or so—would that be okay? I need to make a few adjustments: some screw posts on the legs don’t line up perfectly with the PCB holes—there’s a 0.5–1 mm offset. I’ll realign the screw posts to match the PCB holes, tweak the corner pockets for the silicone pads to improve printability, and add a version for two 120 mm fans.
And yes, I can provide STEP files. The model comes from Rhino 3D and will be a closed boundary representation (BREP)—a joined polysurface. It should import as a solid, but it may not behave the same as STEP files from typical parametric CAD tools.
Thanks for responding. I’d take whatever you have without you having to put more work into it.
Yeah, the shroud design looks good and it will probably work well too. There are no gaps between the fan and the shroud structure where static pressure could escape. That means airflow through the radiator should be high—though of course it still depends on which fan model is used and at what speed. 🙂
The Thermalright TL-P9 work pretty quiet on my 5070Ti Prime. They have 2200 rpm as maximum rpm and usally stay below 2000 under load through the MODDIY Adapter, which is still tolerable when gaming with desktop speakers.
I’m looking for a solution in pull configuration though, as i have the GPU in upside down orientation in an inverted sff case (McPrue Apollo SE).
Any tips on what to use there? Are Phanteks T30 worth a try?
If the 120 mm T30 fans fit, then using them as a pair would definitely be a good choice. That also applies to Noctua NF-A12x25 (G2)—or really any fans that rank at the top of our measurements on radiators. I wouldn’t be afraid of Arctic P12 Pro either, even though there are frequent user reports saying they get noisier in pull configuration. That may be true on case grilles, but it doesn’t necessarily apply to radiators. It might—or it might not. Either way, it would definitely be worth trying. Aerodynamically, the P12 Pro fans are very well designed, and given their low price point… 🙂
Based on your experience, what fan size would you recommend for the Asus TUF 5070? It has the same dimensions as Asus TUF 5070 Ti (330x140mm), which you deshrouded already. I’m leaning towards two 120mm fans (perhaps the low-speed version of the Noctua NF-A12x25 G2), but I worry that I will be far off from covering the length.
Based on what I’ve tested: if I were going with two fans, I’d probably choose the NF-A14x25 G2; if I wanted to save some money, I’d pick the Arctic P14 Pro PST instead.
https://www.hwcooling.net/en/tuf-rtx-5070-ti-deshroud-2x-140-mm-noctua-nf-a14x25-g2/7/
For a 120 mm setup, I’d install three NF-A12x25 fans or three Arctic P12 Pro fans.
In fact, it would be also interesting to compare a deshroud with two and with three 120mm fans, so it’s clear how much the third fan helps.
Thanks for the comment—I don’t think I could have replied to Taisho any better myself. 🙂
Yes, adding a third 120 mm fan could improve cooling efficiency, but compatibility then becomes an issue. The graphics card would become very long and start conflicting with many cases. With two fans, compatibility is already above average and much easier to maintain. 🙂
