Lian Li Lancool II Mesh Performance: Modularity first

Test methodology

Lian Li Lancool? Lian Li is historically known for using more aluminium than its “steel” competitors. Lancool, on the other hand, was at a time a separate brand for, say, cheaper Lian Li derivatives. But what does a “Lian Li Lancool” Mesh Performance look like? The name promises an emphasis on cooling, but the case is also characterized by the extra modularity of the individual parts.

Metodika testovania

The fitted 140 mm fans produce an enormously high noise level of 45.4 dBA at maximum speed. The resonant noise unfortunately comes from the fans themselves, not from the high airflow. Thus, the differences between the measured noise levels are only a small jump in performance. Since I only have two of these fans, I can’t tell if this behavior is common or just a faulty batch.

Although the case offers 8 different fan placement options, for testing purposes we are leaving them in their original location.

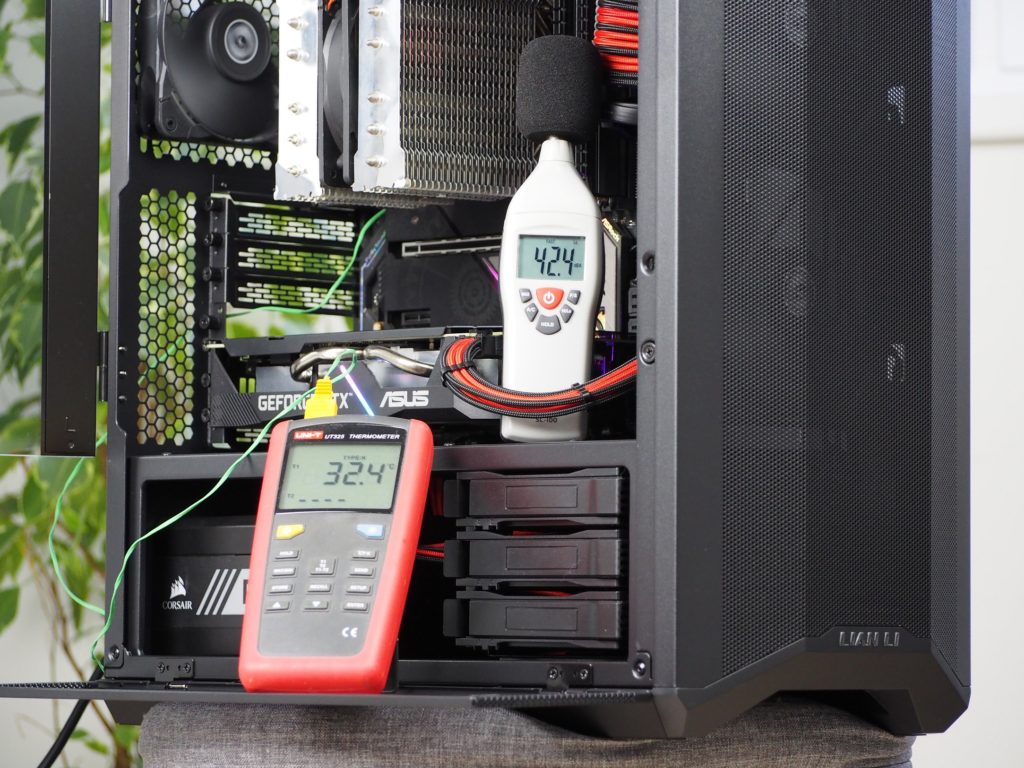

Testing is done in a home environment where I strive for the most accurate results possible. In the room during testing, the air temperature in front of the case is 23 degrees Celsius and the minimum noise level I can measure with the Voltcraft SL-100 noise meter is 32.4 dBA. The sensor of the noise meter is aligned to the center of the top of the case at a distance of 10 cm, for the best measurement of the speed difference of the fans, which I change using the motherboard. For easy comparison to other cases, they are always regulated to fixed noise levels.

Individual components are heated for 10 minutes in FurMark synthetic stress tests and with Prime95 (custom settings) at the same time. This time is long enough to allow all components to warm up sufficiently. There are then 15-minute cooling breaks between tests, during which the component temperatures (and the case air temperature as well) are brought back to default.

Modes noise levels:

• 36 dBA
• 38 dBA
• 39 dBA
