The new Meshify 3 (XL) brings a lot of innovation, and from our specialized perspective, the spotlight must go on the new fans the case uses. These are built on an entirely new, efficient aerodynamic design. Naturally, we’ll also take a close look at just how effective the system cooling in the new Meshify (3) XL case really is. The foundation for impressive results is solid. More than solid!
Significantly revised system cooling is what sets the new Meshify (3) series of cases apart. Alongside a reorganization in the layout of internal components, for the first time, new fans are used with impellers that show promise for outstanding results. Fractal Design has gone with a new aerodynamic fan design that we know works – and how it performs in the Meshify 3 case, we’ll discover soon enough. But let’s start with the basics. What exactly is the Fractal Design Meshify 3?
| Basic parameters | Fractal Design |
| Meshify 3 XL (Ambience Pro RGB Black TG Light Tint) | |
| Support | Mini-ITX, Micro ATX, ATX, SSI-EEB, SSI-CEB, EE-ATX, E-ATX (330 mm) |
| PSU position | ATX |
| CPU cooler | up to 182 mm |
| Graphics cards | up to 512 mm |
| Fan positions | 10× 120 mm/140 mm |
| Pre-installed fans | 3× 140 mm |
| Radiator mounting | 1× up to 420 mm (top) + 1× do 360 mm (front) + 1× do 360 mm (side) + 1× do 140 mm (rear) |
| 2,5" positions | 1× + 4× (shared) |
| 3,5" positions | 2× |
| 5,25" positions | N/A |
| Dimensions [H/L/W] | 575 × 245 × 515 mm (~85 l) |
| Weight | 10.90 kg |
| Materials | steel, plastic, glass, textile |
| Connectors | 1× USB 3.2 gen. 2×2 type C + 2× USB 3.2 gen. 1 type A + 1× 3,5 mm jack (shared) |
| MSRP | 230 EUR |
External details…
For analysis, we have the XL variant of the case, which is large – really large. With dimensions of 575 × 245 × 515 mm, the volume comes to roughly 85 liters. This also reflects support for E-ATX motherboards up to 330 mm wide, or even higher-tier EE-ATX boards. Regarding coolers, the top position of the case allows mounting of a 420 mm radiator (up to 475 mm in length), the front possiotion supports 360 mm and the side possition supports 360 mm. A 120 or 140 mm radiator can also be mounted in the rear, but the bottom of the Meshify 3 XL is not usable for cooling – not for radiators nor for additional fans. There are, however, ten available fan positions (for 120/140 mm models), three of which are populated with the included Momentum fans (three free positions are at the top, three on the side, and one in the back). More on the Fractal Design Momentum fans in the next chapter of this article.

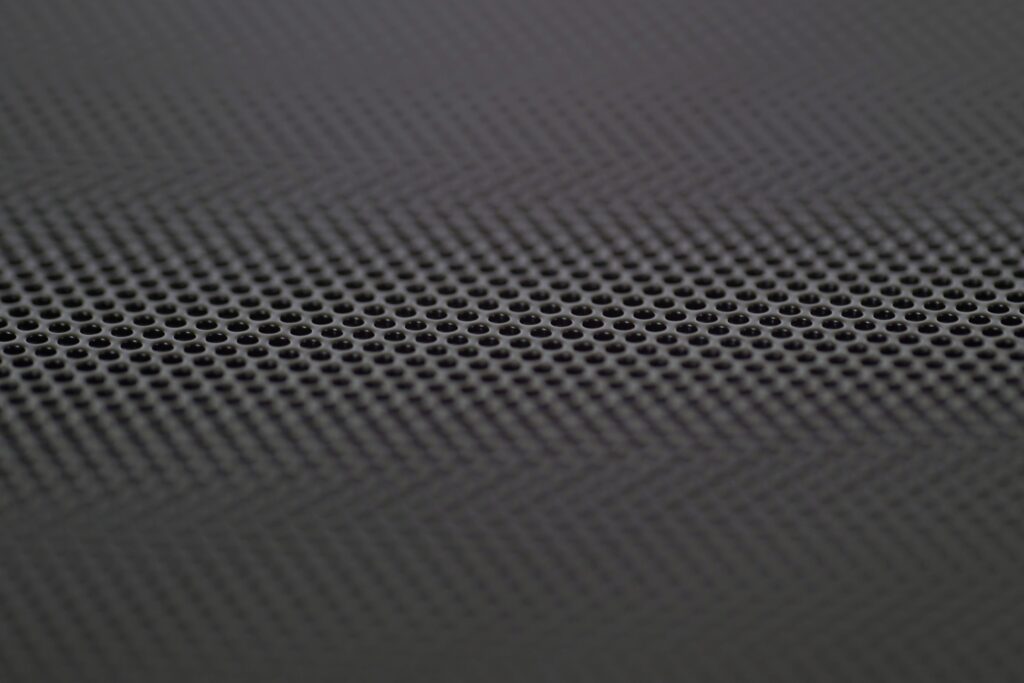

Air is drawn into the case through a perforated metal mesh. The entire front and top panels are perforated this way. Each hole is about 1.2 mm in diameter, with spacing (including paint) around 1 mm. This panel will allow a decent level of airflow, and to minimize noise from the fans, the mesh is spaced away from the rotors – more in some places, less in others – due to the signature angular design of Meshify case fronts.

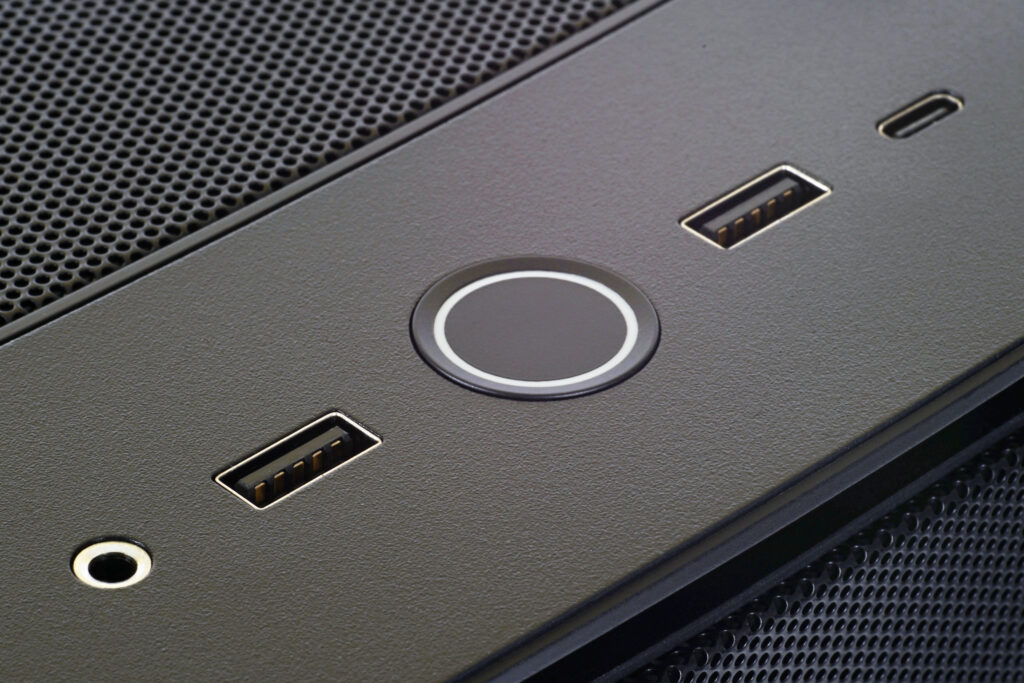

The connectors and power button are located on the top front edge of the case. There are two USB 3.2 Gen 1 Type-A ports, plus a third, faster USB 3.2 Gen 2 Type-C port, and finally, a 3.5 mm audio jack shared for both stereo output and microphone input. The power button is centered among these connectors.
At the rear, the Meshify 3 XL shows seven PCI Express slot covers, and on the right side panel, there’s perforation for three side-mounted fans or 360 liquid cooler radiator. The rear area around motherboard and GPU outputs is fairly open. The perforations use a relatively coarse pattern, suitable even for the rear exhaust fan. Of course, a circular mesh would be more efficient (and less restrictive), but Fractal Design went with this solution.

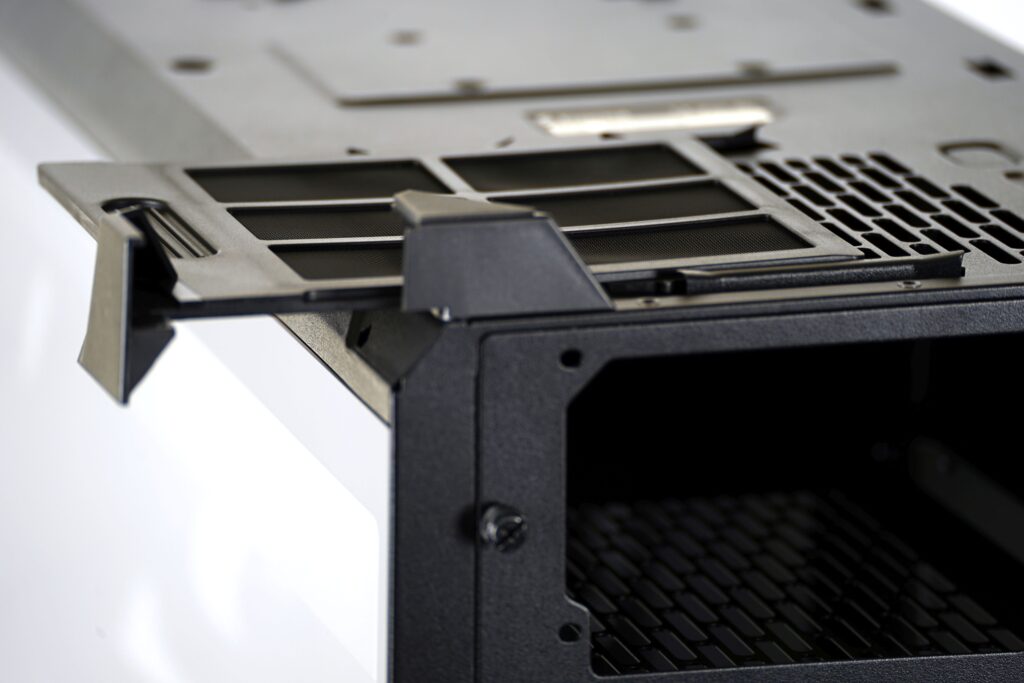

At the bottom of the case is a noteworthy dust filter with a fine nylon mesh. It’s washable and easy to remove. It slides out sideways – toward the right – by pulling on a protruding tab built into the frame.
Please note: The article continues in the following chapters.
