BeQuiet! Pure Wings 2 (BL039): It wouldn’t do without the grooves

So, now we get to see what the grooves on the entire surface of the blades, which are typical of BeQuiet! fans, are worth! Judging by the geometry, we were initially concerned that the results might go in a similar direction to the Arctic BioniX F120. But it’s a lot better than that, and the 120 mm Pure Wings 2 even achieves a top price/performance ratio while running very quietly. The best of the fans tested so far.

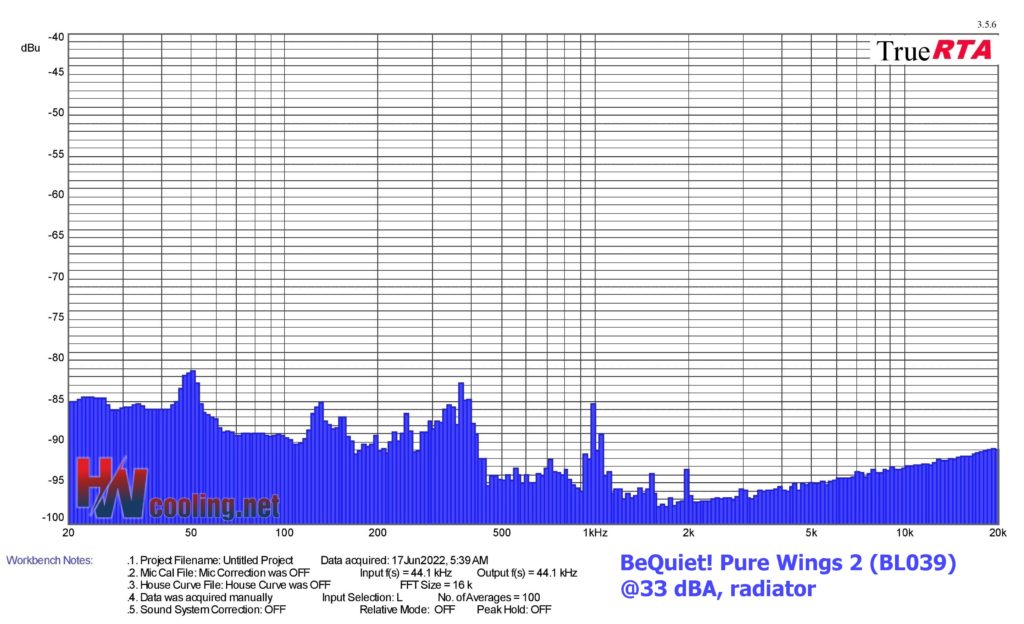

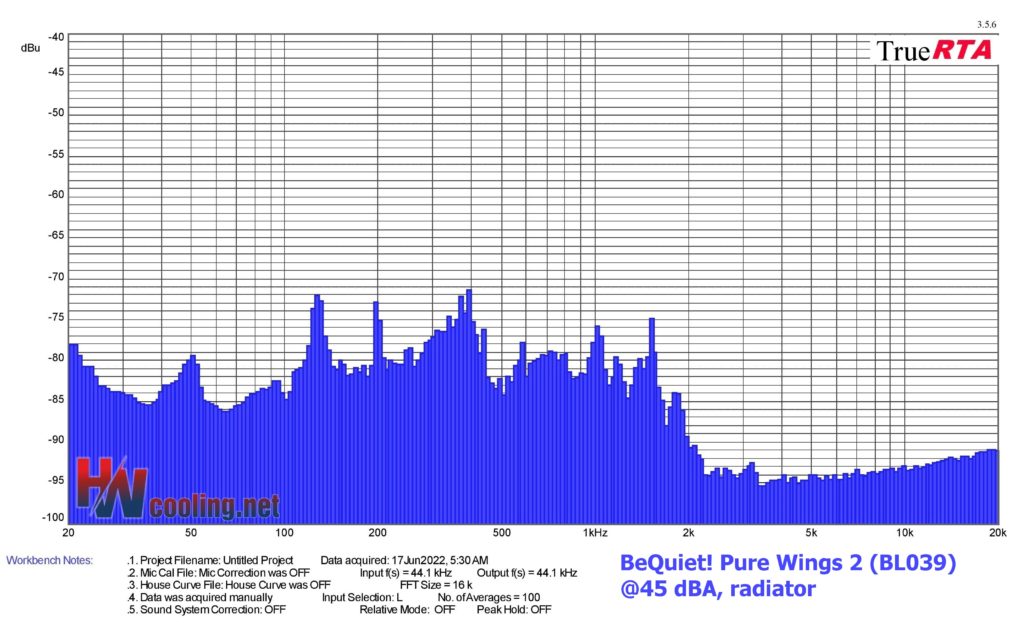

Results: Frequency response of sound with a radiator

Measurements are performed in the TrueRTA application, which records sound in a range of 240 frequencies in the recorded range of 20–20,000 Hz. For the possibility of comparison across articles, we export the dominant frequency from the low (20–200 Hz), medium (201–2,000 Hz) and high (2,001–20,000 Hz) range to standard bar graphs.

However, for an even more detailed analysis of the sound expression, it is important to perceive the overall shape of the graph and the intensity of all frequencies/tones. If you don’t understand something in the graphs or tables below, you’ll find the answers to all your questions in this article. It explains how to read the measured data below correctly.

Noise levels in the tables below -85 dBu (but watch out for the negative sign, -70 dBu is louder than -80 dBu) can be ignored. They are in fact extremely weak and always far below the limit of human perception, and are often defined by the “noise” of the measurement string. Therefore, do not take even the dominant frequencies within the treble band that exceed 12 kHz too much into account.
