Catching up where we’re behind, we come to the GeForce RTX 4060. Across designs, these graphics cards represent not only the most efficient and lowest-power across the latest generation of Nvidia Ada Lovelace, but overall (i.e., even compared to the latest Radeons, including the competing RX 7600). The advantage of the tested (RTX 4060) Windforce OC 8G design is in its smaller size and extra compatibility.
Frequency response of sound
Measurements are performed in the TrueRTA application, which records sound in a range of 240 frequencies in the recorded range of 20–20,000 Hz. For the possibility of comparison across articles, we export the dominant frequency from the low (20–200 Hz), medium (201–2,000 Hz) and high (2,001–20,000 Hz) range to standard bar graphs.
However, for an even more detailed analysis of the sound expression, it is important to perceive the overall shape of the graph and the intensity of all frequencies/tones. If you don’t understand something in the graphs or tables below, you’ll find the answers to all your questions in this article. This explains how to read the measured data below correctly.
| Graphics card | Dominant sound freq. and noise level in F1 2020@2160p | NF-F12 PWM | NF-A15 PWM | ||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | ||
| Gigabyte RTX 4060 Windforce OC 8G, ReBAR on | 41,8 | -75,3 | 1140,4 | -64,0 | 2031,9 | -67,4 | |
| Sapphire RX 7800 XT Nitro+ (P), ReBAR on | 50,4 | -81,6 | 213,6 | -80,0 | 6834,4 | -81,4 | |
| Asus Dual RTX 4070 12G (P), ReBAR on | 106,8 | -80,7 | 1107,9 | -68,3 | 17221,6 | -82,9 | |
| Aorus RX 7900 XTX Elite 24G (OC), ReBAR on | 195,8 | -69,0 | 1076,3 | -61,1 | 5747,0 | -75,2 | |
| Sapphire RX 7600 Pulse, ReBAR on | 195,8 | -80,9 | 1173,8 | -73,7 | 5583,4 | -83,0 | |
| MSI RTX 4060 Ti Gaming X Trio 8G, ReBAR on | 106,8 | -80,9 | 213,6 | -81,3 | 5424,5 | -76,0 | |
| Gigabyte RTX 4090 Gaming OC 24G (OC), ReBAR on | 195,8 | -69,4 | 1045,7 | -62,1 | 5270,0 | -83,9 | |
| Sapphire RX 7900 XT Pulse, ReBAR on | 100,8 | -75,1 | 213,6 | -70,9 | 6450,8 | -82,4 | |
| MSI RTX 4080 16GB Suprim X (G), ReBAR on | 71,3 | -77,2 | 1076,3 | -69,3 | 11830,8 | -75,4 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR off | 138,5 | -78,8 | 1107,9 | -78,6 | 2031,9 | -84,8 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR on | 123,4 | -81,2 | 1107,9 | -80,0 | 18245,6 | -83,7 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR on | 50,4 | -83,3 | 1107,9 | -72,4 | 7240,8 | -82,5 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR off | 184,9 | -82,3 | 1107,9 | -71,4 | 6834,4 | -82,2 | |
| Sapphire RX 6600 XT Pulse, ReBAR on | Sapphire RX 6600 XT Pulse, ReBAR on | 100,8 | -71,8 | 1356,1 | -72,7 | 6088,7 | -80,9 |
| Sapphire RX 6600 XT Pulse, ReBAR off | Sapphire RX 6600 XT Pulse, ReBAR off | 100,8 | -71,8 | 219,8 | -74,5 | 6088,7 | -81,0 |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR on | 50,4 | -77,0 | 1076,3 | -56,5 | 2031,9 | -69,4 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR off | 50,4 | -75,9 | 1076,3 | -56,7 | 2031,9 | -69,6 | |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR on | Sapphire RX 6900 XT Toxic LE (P), ReBAR on | 138,5 | -62,4 | 1107,9 | -56,6 | 11166,8 | -74,7 |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR off | Sapphire RX 6900 XT Toxic LE (P), ReBAR on | 138,5 | -61,9 | 1107,9 | -55,6 | 5747,0 | -74,7 |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR on | 100,8 | -73,2 | 1076,3 | -71,2 | 7034,6 | -76,5 | |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR off | 100,8 | -75,2 | 1076,3 | -73,5 | 7034,6 | -76,5 | |
| MSI RTX 3060 Ti Gaming X Trio, ReBAR off | 100,8 | -70,6 | 1107,9 | -82,8 | 7034,6 | -83,7 | |
| Gigabyte RTX 3060 Eagle OC 12G, ReBAR off | 100,8 | -71,6 | 213,6 | -64,3 | 2031,9 | -74,2 | |
| MSI RTX 3090 Gaming X Trio, ReBAR off | 100,8 | -72,3 | 1076,3 | -76,0 | 4561,4 | -81,2 | |
| MSI RTX 3070 Gaming X Trio, ReBAR off | 100,8 | -73,9 | 1076,3 | -79,7 | 6267,2 | -85,1 | |
| AMD Radeon RX 6800, ReBAR on | 100,8 | -71,0 | 1076,3 | -66,5 | 9665,3 | -81,3 | |
| AMD Radeon RX 6800, ReBAR off | 100,8 | -71,8 | 1107,9 | -67,4 | 2091,4 | -75,3 | |
| TUF RTX 3080 O10G Gaming, ReBAR off | 100,8 | -76,0 | 1107,9 | -77,9 | 7034,6 | -74,4 | |
| AMD Radeon RX 6800 XT, ReBAR on | 100,8 | -71,6 | 1107,9 | -74,7 | 10848,9 | -76,3 | |
| AMD Radeon RX 6800 XT, ReBAR off | 100,8 | -73,0 | 1107,9 | -74,7 | 10848,9 | -76,5 |
| Graphics card | Dominant sound freq. and noise level in SOTTR@2160p | NF-F12 PWM | NF-A15 PWM | ||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | ||
| Gigabyte RTX 4060 Windforce OC 8G, ReBAR on | 38,9 | -76,8 | 1173,8 | -65,6 | 2091,4 | -68,4 | |
| Sapphire RX 7800 XT Nitro+ (P), ReBAR on | 50,4 | -81,1 | 1076,3 | -80,6 | 6834,4 | -81,2 | |
| Asus Dual RTX 4070 12G (P), ReBAR on | 195,8 | -82,6 | 1107,9 | -71,8 | 17221,6 | -82,3 | |
| Aorus RX 7900 XTX Elite 24G (OC), ReBAR on | 195,8 | -68,3 | 1076,5 | -59,3 | 5747,0 | -74,8 | |
| Sapphire RX 7600 Pulse, ReBAR on | 195,8 | -80,6 | 1173,8 | -74,3 | 5915,4 | -82,8 | |
| MSI RTX 4060 Ti Gaming X Trio 8G, ReBAR on | 106,8 | -80,5 | 213,6 | -80,4 | 5424,5 | -78,5 | |
| Gigabyte RTX 4090 Gaming OC 24G (OC), ReBAR on | 195,8 | -72,7 | 1045,7 | -64,7 | 8365,6 | -83,1 | |
| Sapphire RX 7900 XT Pulse, ReBAR on | 100,8 | -74,4 | 213,6 | -70,8 | 5915,4 | -79,7 | |
| MSI RTX 4070 Ti Suprim X 12G (G), ReBAR on | 100,8 | -77,9 | 1076,3 | -77,9 | 5583,4 | -82,2 | |
| MSI RTX 4080 16GB Suprim X (G), ReBAR on | 190,3 | -78,4 | 1045,7 | -74,4 | 11830,8 | -75,3 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR off | 138,5 | -78,4 | 1140,4 | -78,5 | 2031,9 | -84,7 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR on | 138,5 | -78,3 | 1107,9 | -78,4 | 2031,9 | -84,6 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR on | 50,4 | -80,1 | 1107,9 | -76,5 | 6834,4 | -84,3 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR off | 47,6 | -84,3 | 1107,9 | -75,9 | 6834,4 | -82,8 | |
| Sapphire RX 6600 XT Pulse, ReBAR on | 100,8 | -68,8 | 1356,1 | -75,7 | 6088,7 | -82,6 | |
| Sapphire RX 6600 XT Pulse, ReBAR off | 100,8 | -69,5 | 1356,1 | -74,8 | 5915,4 | -83,1 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR on | 44,9 | -73,0 | 1045,7 | -50,3 | 2031,9 | -60,5 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR off | 41,8 | -72,6 | 1076,3 | -51,4 | 2031,9 | -60,7 | |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR on | Sapphire RX 6900 XT Toxic LE (P), ReBAR on | 138,5 | -63,1 | 1140,4 | -57,9 | 5747,0 | -74,7 |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR off | Sapphire RX 6900 XT Toxic LE (P), ReBAR off | 134,5 | -61,7 | 1107,9 | -58,6 | 5747,0 | -74,2 |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR on | 100,8 | -73,9 | 1140,4 | -75,4 | 5915,4 | -77,2 | |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR off | 100,8 | -75,1 | 1107,9 | -75,2 | 5915,4 | -76,5 | |
| MSI RTX 3060 Ti Gaming X Trio, ReBAR off | 100,8 | -70,8 | 1076,3 | -83,6 | 7034,6 | -81,9 | |
| Gigabyte RTX 3060 Eagle OC 12G, ReBAR off | 100,8 | -71,9 | 213,6 | -64,5 | 2031,9 | -73,8 | |
| MSI RTX 3090 Gaming X Trio, ReBAR off | 106,8 | -74,5 | 213,6 | -71,3 | 4561,4 | -79,3 | |
| MSI RTX 3070 Gaming X Trio, ReBAR off | 100,8 | -73,0 | 213,6 | -72,3 | 6267,2 | -84,9 | |
| AMD Radeon RX 6800, ReBAR on | 100,8 | -71,8 | 1140,4 | -66,1 | 9948,5 | -81,3 | |
| AMD Radeon RX 6800, ReBAR off | 100,8 | -71,6 | 1140,4 | -67,8 | 9665,3 | -80,6 | |
| TUF RTX 3080 O10G Gaming, ReBAR off | 100,8 | -75,4 | 1076,3 | -72,3 | 7240,8 | -74,2 | |
| AMD Radeon RX 6800 XT, ReBAR on | 100,8 | -73,2 | 1107,9 | -73,9 | 10848,9 | -76,3 | |
| AMD Radeon RX 6800 XT, ReBAR off | 100,8 | -73,2 | 1107,9 | -75,3 | 10848,9 | -75,4 |
| Graphics card | Dominant sound freq. and noise level in CS:GO@2160p | NF-F12 PWM | NF-A15 PWM | ||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [-dBu] | Frequency [Hz] | Noise level [-dBu] | ||
| Gigabyte RTX 4060 Windforce OC 8G, ReBAR on | 50,4 | -76,2 | 1140,4 | -65,6 | 2091,4 | -68,8 | |
| Sapphire RX 7800 XT Nitro+ (P), ReBAR on | 50,4 | -81,3 | 1076,3 | -80,6 | 6834,4 | -80,7 | |
| Asus Dual RTX 4070 12G (P), ReBAR on | 106,8 | -83,9 | 1076,3 | -74,8 | 17221,6 | -82,8 | |
| Aorus RX 7900 XTX Elite 24G (OC), ReBAR on | 195,8 | -68,7 | 1107,9 | -58,9 | 5747,0 | -69,5 | |
| Sapphire RX 7600 Pulse, ReBAR on | 195,8 | -82,2 | 1173,8 | -74,0 | 7240,8 | -80,1 | |
| MSI RTX 4060 Ti Gaming X Trio 8G, ReBAR on | 106,8 | -80,7 | 213,6 | -80,8 | 5424,5 | -77,5 | |
| Gigabyte RTX 4090 Gaming OC 24G (OC), ReBAR on | 100,8 | -73,7 | 1045,7 | -73,3 | 5747,0 | -85,8 | |
| Sapphire RX 7900 XT Pulse, ReBAR on | 100,8 | 73,7 | 213,6 | -71,4 | 5747,0 | -76,3 | |
| MSI RTX 4070 Ti Suprim X 12G (G), ReBAR on | 100,8 | -77,9 | 207,5 | -81,6 | 4305,4 | -83,5 | |
| MSI RTX 4080 16GB Suprim X (G), ReBAR on | 100,8 | -79,0 | 1076,3 | -72,2 | 11830,8 | -76,4 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR off | 138,5 | -79,8 | 1107,9 | -77,6 | 2031,9 | -83,4 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR on | 123,4 | -81,0 | 1107,9 | -77,8 | 2031,9 | -83,6 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR on | 50,4 | -79,6 | 1107,9 | -74,2 | 7240,8 | -80,8 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR off | 49,0 | -84,3 | 1107,9 | -80,0 | 6834,4 | -80,2 | |
| Sapphire RX 6600 XT Pulse, ReBAR on | 100,8 | -68,7 | 1356,1 | -74,7 | 6088,7 | -80,8 | |
| Sapphire RX 6600 XT Pulse, ReBAR off | 100,8 | -69,3 | 1356,1 | -75,1 | 6088,7 | -79,2 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR on | 47,6 | -67,1 | 1045,7 | -49,6 | 2031,9 | -60,1 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR off | 47,6 | -70,3 | 1140,4 | -50,8 | 2031,9 | -60,2 | |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR on | Sapphire RX 6900 XT Toxic LE (P), ReBAR on | 138,5 | -64,1 | 1107,9 | -60,1 | 8610,8 | -70,9 |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR off | Sapphire RX 6900 XT Toxic LE (P), ReBAR off | 134,5 | -71,6 | 1107,9 | -66,4 | 8365,6 | -72,1 |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR on | 100,8 | -72,6 | 1173,8 | -74,9 | 5915,4 | -74,6 | |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR off | 100,8 | -75,0 | 1107,9 | -73,8 | 5747,0 | -74,2 | |
| MSI RTX 3060 Ti Gaming X Trio, ReBAR off | 100,8 | -71,4 | 1107,9 | -83,1 | 6267,2 | -82,5 | |
| Gigabyte RTX 3060 Eagle OC 12G, ReBAR off | 100,8 | -72,6 | 213,6 | -64,8 | 2031,9 | -73,8 | |
| MSI RTX 3090 Gaming X Trio, ReBAR off | 106,8 | -75,7 | 213,6 | -73,4 | 4695,1 | -77,6 | |
| MSI RTX 3070 Gaming X Trio, ReBAR off | 106,8 | -75,7 | 213,6 | -73,4 | 6267,2 | -82,7 | |
| AMD Radeon RX 6800, ReBAR on | 100,8 | -71,2 | 1107,9 | -66,2 | 9948,5 | -77,4 | |
| AMD Radeon RX 6800, ReBAR off | 100,8 | -71,1 | 1076,3 | -77,3 | 9665,3 | -77,7 | |
| TUF RTX 3080 O10G Gaming, ReBAR off | 100,8 | -74,2 | 1076,3 | -70,9 | 7240,8 | -74,4 | |
| AMD Radeon RX 6800 XT, ReBAR on | 100,8 | -73,0 | 1107,9 | -74,3 | 7671,3 | -72,4 | |
| AMD Radeon RX 6800 XT, ReBAR off | 100,8 | -72,3 | 1107,9 | -73,7 | 10848,9 | -72,5 |
| Graphics card | Dominant sound freq. and noise level in Blender (Cycles), Classroom | NF-F12 PWM | NF-A15 PWM | ||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | ||
| Gigabyte RTX 4060 Windforce OC 8G, ReBAR on | 50,4 | -76,6 | 1173,8 | -69,2 | 2091,4 | -73,3 | |
| Sapphire RX 7800 XT Nitro+ (P), ReBAR on | 50,4 | -79,0 | 106,8 | -86,9 | 6834,4 | -85,4 | |
| Asus Dual RTX 4070 12G (P) | 106,8 | -82,0 | 1107,9 | -73,3 | 17221,6 | -83,9 | |
| Aorus RX 7900 XTX Elite 24G (OC), ReBAR on | 195,8 | -78,4 | 1107,9 | -72,8 | 5747,0 | -78,8 | |
| Sapphire RX 7600 Pulse, ReBAR on | 50,4 | -85,4 | 1140,4 | -79,2 | 5915,4 | -85,9 | |
| MSI RTX 4060 Ti Gaming X Trio 8G, ReBAR on | 106,8 | -80,3 | 213,6 | -81,2 | 5424,5 | -87,6 | |
| Gigabyte RTX 4090 Gaming OC 24G (OC), ReBAR on | 195,8 | -73,7 | 1045,7 | -69,6 | 16731,3 | -87,4 | |
| Sapphire RX 7900 XT Pulse, ReBAR on | 100,8 | -73,8 | 207,5 | -74,1 | 7034,6 | -85,2 | |
| MSI RTX 4070 Ti Suprim X 12G (G), ReBAR on | 100,8 | -77,8 | 207,5 | -82,3 | 5747,0 | -89,5 | |
| MSI RTX 4080 16GB Suprim X (G), ReBAR on | 100,8 | -80,3 | 1140,4 | -86,7 | 11830,8 | -89,4 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR off | 123,4 | -79,3 | 213,6 | -81,4 | 18245,6 | -85,5 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR on | 123,4 | -79,5 | 213,6 | -81,5 | 18245,6 | -85,6 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR on | 50,4 | -77,9 | 1107,9 | -83,5 | 7240,8 | -87,3 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR off | 50,4 | -79,1 | 1107,9 | -83,9 | 7240,8 | -87,5 | |
| Sapphire RX 6600 XT Pulse, ReBAR on | 100,8 | -70,1 | 1356,1 | -73,4 | 5583,4 | -86,1 | |
| Sapphire RX 6600 XT Pulse, ReBAR off | 100,8 | -69,8 | 1356,1 | -73,7 | 5915,4 | -86,0 | |
| Asus GT 1030 SL 2G BRK, ReBAR off | 50,397 | -71,7 | 1107,9 | -94,9 | 19330,5 | -90,5 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR on | 50,4 | -76,4 | 1107,9 | -57,9 | 2031,9 | -69,7 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR off | 50,4 | -78,7 | 1076,3 | -60,9 | 5424,5 | -74,0 | |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR on | 116,5 | -65,0 | 1107,9 | -68,5 | 5120,0 | -77,3 | |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR off | 116,5 | -65,1 | 1107,9 | -68,4 | 5120,0 | -77,1 | |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR on | 100,8 | -72,6 | 1173,8 | -86,6 | 5915,4 | -82,4 | |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR off | 100,8 | -75,8 | 1076,3 | -87,2 | 5915,4 | -82,1 | |
| MSI RTX 3060 Ti Gaming X Trio, ReBAR off | 100,8 | -70,4 | 987,0 | -89,5 | 6450,8 | -89,0 | |
| Gigabyte RTX 3060 Eagle OC 12G, ReBAR off | 100,8 | -72,6 | 213,6 | -70,0 | 2031,9 | -79,1 | |
| MSI RTX 3090 Gaming X Trio, ReBAR off | 100,8 | -71,2 | 1076,3 | -85,3 | 5915,4 | -92,0 | |
| MSI RTX 3070 Gaming X Trio, ReBAR off | 100,8 | -71,2 | 1076,3 | -85,3 | 18245,6 | -90,8 | |
| AMD Radeon RX 6800, ReBAR on | 100,8 | -71,9 | 987,0 | -89,2 | 7452,9 | -88,3 | |
| AMD Radeon RX 6800, ReBAR off | 100,8 | -71,1 | 987,0 | -89,0 | 7452,9 | -88,2 | |
| TUF RTX 3080 O10G Gaming, ReBAR off | 106,8 | -81,5 | 1660,0 | -80,6 | 6834,4 | -78,0 | |
| AMD Radeon RX 6800 XT, ReBAR on | 97,9 | -79,8 | 1208,2 | -89,6 | 7671,3 | -85,2 | |
| AMD Radeon RX 6800 XT, ReBAR off | 100,8 | -73,0 | 1243,6 | -95,2 | 7671,3 | -85,0 |

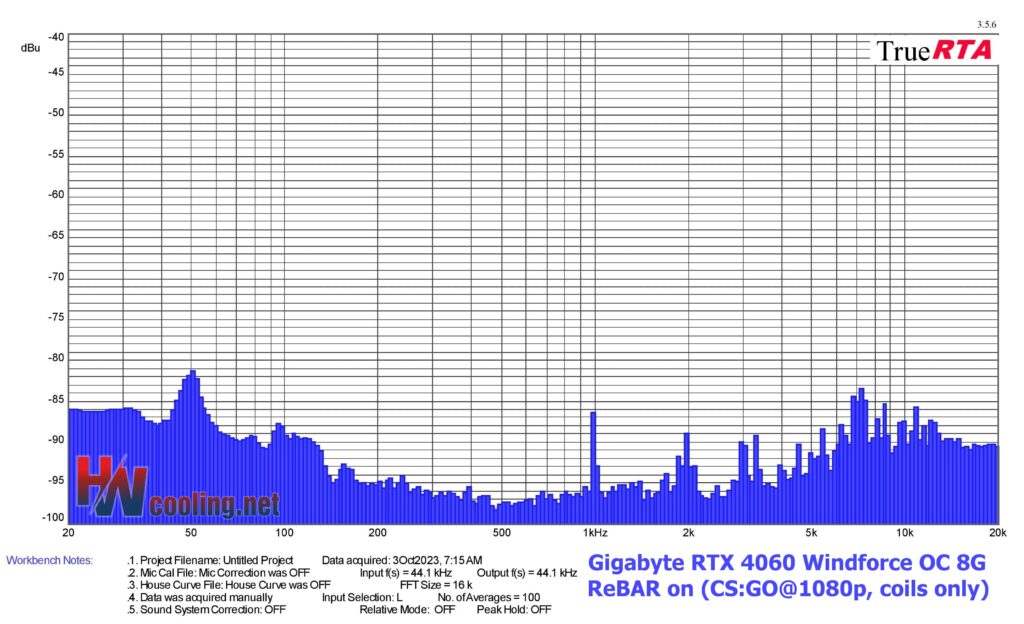

| Graphics card | Dominant sound freq. and noise level in CS:GO@1080p (coils only *) | NF-F12 PWM | NF-A15 PWM | ||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | ||
| Gigabyte RTX 4060 Windforce OC 8G, ReBAR on | 50,4 | -81,3 | 987,0 | -86,4 | 7240,8 | -83,4 | |
| Sapphire RX 7800 XT Nitro+ (P), ReBAR on | 50,4 | -82,7 | 987,0 | -86,1 | 7034,6 | -80,7 | |
| Asus Dual RTX 4070 12G (P), ReBAR on | 50,4 | -82,6 | 1076,3 | -83,3 | 17221,6 | -82,7 | |
| Aorus RX 7900 XTX Elite 24G (OC), ReBAR on | 50,4 | -83,8 | 1317,5 | -81,4 | 5747,0 | -73,9 | |
| Sapphire RX 7600 Pulse, ReBAR on | 50,4 | -82,5 | 1974,0 | -87,4 | 7240,8 | -78,4 | |
| MSI RTX 4060 Ti Gaming X Trio 8G, ReBAR on | 50,4 | -84,9 | 806,3 | -78,5 | 5583,4 | -76,9 | |
| Gigabyte RTX 4090 Gaming OC 24G (OC), ReBAR on | 100,8 | -74,1 | 1317,5 | -82,3 | 5747,0 | -85,8 | |
| Sapphire RX 7900 XT Pulse, ReBAR on | 100,8 | -73,2 | 1076,3 | -81,5 | 5747,0 | -76,3 | |
| Sapphire RX 7800 XT Nitro+ (P), ReBAR on | 50,4 | -82,7 | 987,0 | -86,1 | 7034,6 | -80,7 | |
| MSI RTX 4070 Ti Suprim X 12G (G), ReBAR on | 100,8 | -78,0 | 987,0 | -78,6 | 5583,4 | -84,3 | |
| MSI RTX 4080 16GB Suprim X (G), ReBAR on | 100,8 | -80,5 | 1140,4 | -71,8 | 11830,8 | -74,9 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR off | 50,4 | -83,6 | 1317,5 | -83,0 | 7896,1 | -83,9 | |
| MSI RTX 3050 Ventus 2X 8G OC, ReBAR on | 50,4 | -77,7 | 1317,5 | -87,3 | 10848,9 | -84,5 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR on | 50,4 | -81,8 | 1045,7 | -84,2 | 2091,4 | -77,7 | |
| Sapphire RX 6650 XT Nitro+ (P), ReBAR off | 50,4 | -83,3 | 1974,0 | -90,0 | 7034,6 | -82,4 | |
| Sapphire RX 6600 XT Pulse, ReBAR on | 100,8 | -72,0 | 1107,9 | -83,7 | 2215,8 | -79,6 | |
| Sapphire RX 6600 XT Pulse, ReBAR off | 100,8 | -68,4 | 1917,8 | -88,7 | 6450,8 | -81,4 | |
| Asus GT 1030 SL 2G BRK, ReBAR off | 50,4 | -71,1 | 1107,9 | -91,7 | 12534,3 | -89,8 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR on | 50,4 | -80,6 | 1660,0 | -80,3 | 7896,1 | -80,2 | |
| Aorus RTX 3080 Xtreme 10G (OC), ReBAR off | 50,4 | -78,8 | 1660,0 | -82,6 | 7671,3 | -80,4 | |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR on | Sapphire RX 6900 XT Toxic LE (P), ReBAR on | 100,8 | -74,9 | 739,4 | -67,9 | 5915,4 | -78,5 |
| Sapphire RX 6900 XT Toxic LE (P), ReBAR off | Sapphire RX 6900 XT Toxic LE (P), ReBAR off | 50,4 | -81,4 | 739,4 | -70,2 | 8610,8 | -73,6 |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR on | 100,8 | -74,6 | 987,0 | -84,8 | 5747,0 | -69,6 | |
| Sapphire RX 6700 XT Nitro+ (P), ReBAR off | 100,8 | -74,7 | 1395,9 | -88,4 | 5747,0 | -70,3 | |
| MSI RTX 3060 Ti Gaming X Trio, ReBAR off | 100,8 | -73,0 | 1974,0 | -88,1 | 6267,2 | -83,6 | |
| Gigabyte RTX 3060 Eagle OC 12G, ReBAR off | 100,8 | -73,6 | 1974,0 | -90,2 | 6088,7 | -83,1 | |
| MSI RTX 3090 Gaming X Trio, ReBAR off | 50,4 | -76,1 | 987,0 | -84,8 | 5915,4 | -83,3 | |
| MSI RTX 3070 Gaming X Trio, ReBAR off | 100,8 | -74,7 | 1317,5 | -81,4 | 6088,7 | -84,6 | |
| AMD Radeon RX 6800, ReBAR on | 100,8 | -71,8 | 987,0 | -87,7 | 7452,9 | -80,4 | |
| AMD Radeon RX 6800, ReBAR off | 100,8 | -72,0 | 1660,0 | -90,4 | 8863,1 | -84,5 | |
| TUF RTX 3080 O10G Gaming, ReBAR off | 100,8 | -75,6 | 1140,4 | -81,7 | 9948,5 | -78,7 | |
| AMD Radeon RX 6800 XT, ReBAR on | 100,8 | -73,6 | 1660,0 | -79,8 | 7452,9 | -74,0 | |
| AMD Radeon RX 6800 XT, ReBAR off | 100,8 | -73,3 | 1660,0 | -83,3 | 7452,9 | -76,4 |
*>With the Sapphire RX 6900 XT Toxic LE, as with the only tested graphics card, the spectral analysis also includes the sound of the water pump.
Perhaps I remembered wrongly, but I thought the analysis section was a bit different (on the size of the cooler and heatpipes)?
Anyway, it’s a shame that this model has such poor thermal performance. The fin stacks looks ok, the fans look fine, so the most likely culprit is indeed the lack of a second heatpipe. The similarly sized MSI Ventus 2X is much better in comparison.
The fans are smaller, with a diameter of 80 mm and a profile height of 10 mm. The heatsink is lower, the cooler with the cover fits comfortably into two slots. The heat pipe has a diameter of 6 mm, its path is well visible from the TechPowerUp tests. We don’t disassemble graphics cards, so that the next reviewer in line, who will test the sample, can also measure the correct (undistorted) values.
