The Adata Vento Pro PWM fans face a tough challenge ahead. They associate themselves with the legendary Gentle Typhoon D1225C fans, claiming to address the major shortcomings of the older GT models. And you probably know what those are – extremely high vibrations. These should not affect the XPG fans. The aerodynamic design they’re built on is excellent in the best sense of the word, and there’s no need to debate that.

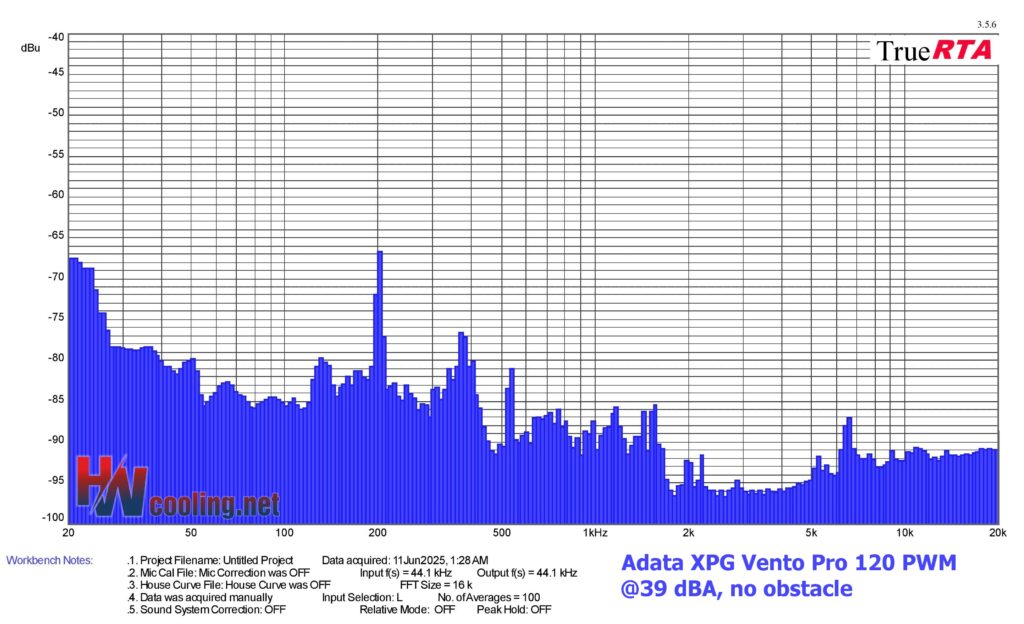

Results: Frequency response of sound w/o obstacles
Measurements are conducted using TrueRTA, which captures audio data across 240 frequency bands within the 20–20,000 Hz range. To facilitate comparisons between articles, we extract and present the dominant frequency from each of three spectral bands: low (20–200 Hz), mid (201–2000 Hz), and high (2001–20,000 Hz) in standardized bar graphs.
However, for an even more detailed analysis of the sound expression, it is important to perceive the overall shape of the graph and the intensity of all frequencies/tones. If any aspects of the graphs or data tables are unclear, detailed interpretation guidelines are provided in this article.
Most fan-related acoustic activity occurs within the 70–7000 Hz range. Frequencies above 7000 Hz typically represent electromagnetic interference from the test environment, while the lowest bands below 70 Hz may also include such noise, albeit mixed with aerodynamic sound. Although we could exclude these frequency extremes, they are retained to detect and visualize potential anomalies.
| Parametre | Asus ROG Strix B850-F Gaming WiFi | |
| Pätica | AMD AM5 | |
| Čipová súprava | AMD B850 | |
| Formát | ATX (305 × 244 mm) | |
| Napájacia kaskáda procesora | 20-fázová | |
| Typ podporovaných pamätí (a maximálna frekvencia) | DDR5 (8000 MHz) | |
| Sloty PCIe ×16 (+ PCIe ×1) | 2× (+ 0×) | |
| Od stredu pätice k prvému PCIe ×16 | 91 mm | |
| Od stredu pätice k prvému slotu DIMM | 56 mm | |
| Diskové konektory | 2× SATA III, 1× M.2 PCIe 5.0 ×4 (42–80 mm) 1× M.2 PCIe 5.0 ×4 (80–110 mm) + 2× M.2 PCIe 4.0 ×4 (80 mm) | |
| PWM konektory na ventilátory alebo pumpu kvapalinového chladiča | 7× | |
| Interné porty USB | 1× 3.2 gen. 2 typ C, 2× 3.2 gen. 1 typ A, 4× 2.0 typ A | |
| Ďalšie interné konektory | 1× TPM, 3× ARGB LED (5 V), 1× jumper Clear CMOS | |
| Displej POST | nie (ale má debug LED) | |
| Tlačidlá | štart, Flash BIOS, Clear CMOS | |
| Externé porty USB | 1× 3.2 gen. 2×2 typ C, 1× 3.2 gen. 2 typ C, 2× 3.2 gen. 2 typ A, 4× 3.2 gen. 1 typ A, 4× 2.0 typ A | |
| Videovýstupy | 1× DisplayPort 2.1, 1× HDMI 2.1 | |
| Sieť | 1× RJ-45 (2,5 GbE) – Intel I226-V, WiFi 7 Mediatek MT7925 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4 | |
| Zvuk | Realtek ALC4080 (7.1) | |
| Ďalšie externé konektory | – | |
| Odporúčaná maloobchodná cena | 328 eur/8350 Kč |
| Fan | Dominant sound freq. and noise level, no obstacle@39 dBA | ||||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | ||
| Adata XPG Vento Pro 120 PWM | 195,8 | -71,9 | 369,7 | -76,6 | 6639,8 | -87,0 | |
| CPS PCCooler F7 X120 | 20,6 | -58,7 | 369,7 | -74,3 | 19330,5 | -90,8 | |
| Arctic P12 Max (Black) | 20,6 | -63,2 | 369,7 | -75,4 | 19897,0 | -90,9 | |
| Arctic S12038-4K | 160,0 | -67,9 | 739,4 | -72,9 | 2957,7 | -85,3 | |
| Gigabyte Aorus EZ Chain Fan 120 Ice | 127,0 | -67,3 | 369,7 | -73,2 | 19897,0 | -91,5 | |
| BeQuiet! Pure Wings 3 (BL105) | 130,7 | -76,4 | 369,7 | -74,2 | 19897,0 | -91,0 | |
| Scythe Grand Tornado 120 | 320,0 | -76,6 | 359,2 | -67,6 | 19330,5 | -90,9 | |
| DeepCool FT12 | 179,6 | -70,0 | 369,7 | -73,8 | 19897,0 | -90,9 | |
| DeepCool FT14 | 123,4 | -66,1 | 380,5 | -74,0 | 18780,2 | -90,9 | |
| Noctua NF-A14x25 G2 PWM | 23,1 | -67,0 | 380,5 | -73,0 | 19897,0 | -90,9 | |
| Asus TUF Gaming TR120 (Reverse) | 123,4 | -78,2 | 320,0 | -74,1 | 19897,0 | -90,9 | |
| BeQuiet! Pure Wings 3 (BL113) | 50,4 | -77,3 | 380,5 | -74,2 | 19330,5 | -90,6 | |
| Arctic P14 Max rev. 1 | 103,7 | -68,3 | 380,5 | -75,8 | 19897,0 | -90,9 | |
| Arctic P14 PWM PST CO rev. 3 | 92,4 | -65,0 | 380,5 | -74,0 | 19330,5 | -90,8 | |
| Arctic P14 PWM PST rev. 4 | 97,9 | -65,8 | 349,0 | -68,5 | 19897,0 | -90,9 | |
| BeQuiet! Silent Wings 4 (BL117) | 142,5 | -66,5 | 391,7 | -74,9 | 19330,5 | -90,7 | |
| Endorfy Stratus 140 PWM | 151,0 | -64,2 | 403,2 | -75,2 | 19897,0 | -91,0 | |
| PCCooler CPS F5 R120 BK | 20,6 | -72,2 | 369,7 | -70,8 | 19330,5 | -90,8 | |
| Thermaltake Toughfan 14 Pro | 146,7 | -69,0 | 380,5 | -75,4 | 19897,0 | -90,8 | |
| Fractal Design Venturi HP-14 PWM | 109,9 | -74,2 | 380,5 | -72,3 | 19330,5 | -90,8 | |
| Seasonic MagFlow ARGB | 20,6 | -74,2 | 380,5 | -73,9 | 19897,0 | -90,9 | |
| Noctua NF-A14 PWM | 103,7 | -64,3 | 391,7 | -72,9 | 19330,5 | -90,9 | |
| BeQuiet! Pure Wings 3 (BL108) | 123,4 | -74,5 | 380,5 | -73,8 | 19330,5 | -90,8 | |
| Endorfy Stratus 120 PWM | 179,6 | -66,9 | 380,5 | -75,8 | 19330,5 | -90,8 | |
| Phanteks PH-F120T30 | 130,7 | -76,0 | 369,7 | -77,3 | 18780,2 | -90,7 | |
| BeQuiet! Light Wings White (BL101) | 226,3 | -71,5 | 380,5 | -78,7 | 19330,5 | -90,6 | |
| Scythe Kaze Flex II 120 | 146,7 | -78,4 | 380,5 | -73,0 | 19330,5 | -90,6 | |
| Valkyrie X12 | 20,6 | -74,7 | 1045,7 | -76,1 | 19897,0 | -90,7 | |
| Fractal Design Silent R3 140 mm | 130,7 | -67,8 | 380,5 | -75,4 | 2031,9 | -87,0 | |
| Arctic P12 PWM PST A-RGB | 116,5 | -72,8 | 339,0 | -80,0 | 19330,5 | -90,6 | |
| Scythe Kaze Flex II 120 Slim | 146,7 | -71,2 | 329,4 | -67,7 | 19897,0 | -90,7 | |
| Seasonic MagFlow 1225 PWM | 138,5 | -74,5 | 1015,9 | -69,6 | 19330,5 | -90,6 | |
| Arctic P12 PWM PST rev. 1 | 113,1 | -65,4 | 369,7 | -73,2 | 18780,2 | -90,8 | |
| Cooler Master Mobius 120 OC | 130,7 | -72,0 | 1107,9 | -71,7 | 19897,0 | -90,8 | |
| Corsair AF120 RGB Elite | 169,5 | -73,5 | 339,0 | -69,7 | 19330,5 | -90,7 | |
| Enermax SquA RGB White | 146,7 | -69,4 | 369,7 | -74,6 | 18245,6 | -91,0 | |
| Endorfy Fluctus 140 PWM | 151,0 | -66,2 | 380,5 | -75,9 | 19330,5 | -91,0 | |
| Endorfy Fluctus 140 PWM ARGB | 138,5 | -72,6 | 391,7 | -72,7 | 19330,5 | -90,8 | |
| Arctic P12 Slim PWM PST | 127,0 | -75,6 | 380,5 | -72,0 | 19330,5 | -90,9 | |
| BeQuiet! Silent Wings Pro 4 (BL099) | 138,5 | -69,5 | 380,5 | -75,1 | 2416,3 | -86,2 | |
| Fractal Design Prisma AL-14 PWM | 109,9 | -75,3 | 391,7 | -73,9 | 5583,4 | -90,0 | |
| Gigabyte Aorus 140 ARGB | 116,5 | -71,7 | 391,7 | -73,0 | 3225,4 | -90,9 | |
| BeQuiet! Light Wings (BL075) | 184,9 | -69,8 | 391,7 | -73,5 | 19330,5 | -90,8 | |
| Fractal Design Aspect 14 RGB PWM | 92,4 | -76,0 | 391,7 | -70,8 | 17726,2 | -91,0 | |
| DeepCool FK120 | 38,9 | -78,8 | 246,8 | -67,0 | 19330,5 | -90,9 | |
| Asus TUF Gaming TF120 | 127,0 | -76,0 | 380,5 | -74,6 | 19330,5 | -90,8 | |
| BeQuiet! Light Wings (BL072) | 138,5 | -80,1 | 369,7 | -78,4 | 18780,4 | -90,9 | |
| DeepCool FC120 | 195,8 | -71,5 | 201,6 | -68,0 | 3620,4 | -89,7 | |
| Nidec Servo Gentle Typhoon D1225C (2150/12) | 190,3 | -69,7 | 380,5 | -73,8 | 18780,2 | -91,0 | |
| BeQuiet! Shadow Wings 2 (BL085) | N/A | N/A | N/A | N/A | N/A | N/A | |
| Noctua NF-A12x25 PWM | 23,1 | -73,9 | 369,7 | -74,1 | 19897,0 | -90,7 | |
| Corsair AF120 Elite (black) | 164,7 | -79,2 | 339,0 | -72,8 | 19897,0 | -90,7 | |
| Cooler Master MasterFan SF120M | 146,7 | -78,8 | 380,5 | -77,9 | 2635,0 | -83,9 | |
| Akasa Alucia SC12 | 151,0 | -80,6 | 226,3 | -73,4 | 19897,0 | -90,7 | |
| BeQuiet! Silent Wings Pro 4 (BL098) | 20,3 | -76,0 | 339,0 | -73,9 | 2791,7 | -83,3 | |
| Thermalright X-Silent 120 | 119,9 | -74,0 | 369,7 | -75,0 | 10540,1 | -88,4 | |
| Fractal Design Aspect 12 RGB PWM | 20,7 | -70,4 | 380,5 | -72,4 | 18780,2 | -90,8 | |
| BeQuiet! Silent Wings 3 (BL066) | 130,7 | -70,1 | 369,7 | -75,2 | 18780,2 | -90,9 | |
| Gelid Zodiac | 146,7 | -66,0 | 369,7 | -73,4 | 19330,5 | -90,9 | |
| Fractal Design Dynamic X2 GP-12 PWM | 113,1 | -78,5 | 329,4 | -74,6 | 18780,2 | -90,9 | |
| BeQuiet! Pure Wings 2 (BL039) | 130,7 | -76,1 | 369,7 | -75,3 | 19330,5 | -90,7 | |
| Gigabyte Aorus 120 ARGB | 127,0 | -63,9 | 380,5 | -74,2 | 19330,5 | -90,6 | |
| Arctic BioniX P120 A-RGB | 50,4 | -77,9 | 439,7 | -72,4 | 18780,2 | -91,1 | |
| Akasa OTTO SF12 | 155,4 | -67,1 | 380,5 | -75,2 | 4431,5 | -87,2 | |
| Cooler Master SickleFlow 120 ARGB | 109,9 | -72,8 | 1076,3 | -72,4 | 18245,6 | -90,9 | |
| Alphacool SL-15 PWM | 184,9 | -73,4 | 380,5 | -73,1 | 19897,0 | -90,8 | |
| Arctic BioniX F120 | 151,0 | -69,3 | 369,7 | -75,3 | 18780,2 | -91,0 | |
| SilverStone SST-AP123 | 164,7 | -75,1 | 369,7 | -74,7 | 19330,5 | -90,9 | |
| Noctua NF-P12 redux-1700 PWM | 146,7 | -68,0 | 329,4 | -66,7 | 18245,6 | -91,1 | |
| SilentiumPC Fluctus 120 PWM | 190,3 | -69,2 | 380,5 | -68,8 | 19897,0 | -90,9 | |
| MSI MEG Silent Gale P12 | 23,1 | -73,5 | 380,5 | -73,3 | 18780,2 | -90,9 | |
| Asus ROG Strix XF120 | 130,7 | -70,9 | 369,7 | -75,2 | 19330,5 | -91,0 | |
| Akasa Vegas X7 | 127,0 | -77,8 | 369,7 | -76,1 | 19330,5 | -90,9 | |
| Reeven Coldwing 12 | 160,0 | -74,0 | 369,7 | -76,8 | 19330,5 | -90,9 | |
| Reeven Kiran | 184,9 | -75,2 | 369,7 | -75,2 | 17726,2 | -89,8 | |
| SilentiumPC Sigma Pro 120 PWM | 97,9 | -81,7 | 369,7 | -78,1 | 2635,0 | -86,2 | |
| SilentiumPC Sigma Pro Corona RGB 120 | 20,3 | -67,8 | 380,5 | -77,3 | 2487,1 | -85,6 | |
| SilverStone SST-AP121 | 103,7 | -76,2 | 339,0 | -73,4 | 2031,9 | -86,5 | |
| SilverStone SST-FQ121 | 138,5 | -75,2 | 1208,2 | -71,1 | 18780,2 | -90,9 | |
| Xigmatek XLF-F1256 | 190,3 | -77,1 | 761,1 | -75,5 | 19897,0 | -91,1 |
| Fan | Dominant sound freq. and noise level, no obstacle@45 dBA | ||||||
| Low range | Mid range | High range | |||||
| Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | Frequency [Hz] | Noise level [dBu] | ||
| Adata XPG Vento Pro 120 PWM | 28,3 | -74,0 | 246,8 | -59,3 | 6639,8 | -85,5 | |
| CPS PCCooler F7 X120 | 20,6 | -62,7 | 219,8 | -60,7 | 19330,5 | -90,8 | |
| Arctic P12 Max (Black) rev. 2 | 151,0 | -65,0 | 369,7 | -70,9 | 5747,0 | -89,4 | |
| Arctic S12038-4K | 127,0 | -59,3 | 201,6 | -61,8 | 2957,7 | -84,8 | |
| Gigabyte Aorus EZ Chain Fan 120 Ice | 164,7 | -67,5 | 369,7 | -67,7 | 2487,1 | -87,9 | |
| BeQuiet! Pure Wings 3 (BL105) | 130,7 | -70,4 | 369,7 | -69,6 | 2487,1 | -89,3 | |
| Scythe Grand Tornado 120 | 23,1 | -68,6 | 369,7 | -67,3 | 18780,2 | -91,1 | |
| DeepCool FT12 | 130,7 | -65,5 | 369,7 | -69,7 | 19330,5 | -90,9 | |
| DeepCool FT14 | 20,6 | -61,2 | 391,7 | -67,0 | 18245,6 | -91,0 | |
| Noctua NF-A14x25 G2 PWM | 20,6 | -60,6 | 380,5 | -70,3 | 19897,0 | -91,0 | |
| Asus TUF Gaming TR120 (Reverse) | 123,4 | -70,7 | 369,7 | -59,6 | 19330,5 | -90,7 | |
| BeQuiet! Pure Wings 3 (BL113) | 213,6 | -72,3 | 391,7 | -69,4 | 2487,1 | -87,6 | |
| Arctic P14 Max rev. 1 | 123,4 | -60,1 | 391,7 | -70,4 | 2487,1 | -90,5 | |
| Arctic P14 PWM PST CO rev. 3 | 119,9 | -59,8 | 380,5 | -67,6 | 19330,5 | -90,8 | |
| Arctic P14 PWM PST rev. 4 | 116,5 | -59,3 | 380,5 | -69,1 | 18780,2 | -90,8 | |
| BeQuiet! Silent Wings 4 (BL117) | 174,5 | -63,0 | 403,2 | -71,2 | 19330,5 | -90,7 | |
| Endorfy Stratus 140 PWM | 179,6 | -59,9 | 391,7 | -69,1 | 2560,0 | -87,8 | |
| PCCooler CPS F5 R120 BK | 23,1 | -66,3 | 207,5 | -74,0 | 2487,1 | -90,7 | |
| Thermaltake Toughfan 14 Pro | 184,9 | -64,9 | 391,7 | -70,1 | 19330,5 | -90,8 | |
| Fractal Design Venturi HP-14 PWM | 130,7 | -66,9 | 380,5 | -68,0 | 7240,8 | -90,8 | |
| Seasonic MagFlow ARGB | 25,6 | -67,8 | 239,7 | -63,9 | 2347,5 | -90,1 | |
| Noctua NF-A14 PWM | 130,7 | -59,7 | 391,7 | -65,9 | 19897,0 | -91,0 | |
| BeQuiet! Pure Wings 3 (BL108) | N/A | N/A | N/A | N/A | N/A | N/A | |
| Endorfy Stratus 120 PWM | 23,1 | -73,7 | 219,8 | -61,9 | 2487,1 | -90,5 | |
| Phanteks PH-F120T30 | 190,3 | -69,0 | 380,5 | -71,5 | 2957,7 | -90,8 | |
| BeQuiet! Light Wings White (BL101) | 123,4 | -68,0 | 285,1 | -64,2 | 2215,8 | -89,3 | |
| Scythe Kaze Flex II 120 | 130,7 | -69,5 | 380,5 | -69,3 | 19330,5 | -90,8 | |
| Valkyrie X12 | 23,1 | -69,6 | 879,3 | -68,7 | 19330,5 | -90,7 | |
| Fractal Design Silent R3 140 mm | N/A | N/A | N/A | N/A | N/A | N/A | |
| Arctic P12 PWM PST A-RGB | 146,7 | -64,2 | 1566,8 | -74,5 | 19330,5 | -90,7 | |
| Scythe Kaze Flex II 120 Slim | 184,9 | -65,9 | 391,7 | -69,7 | 2031,9 | -90,8 | |
| Seasonic MagFlow 1225 PWM | 195,8 | -63,8 | 958,9 | -67,0 | 18780,2 | -90,8 | |
| Arctic P12 PWM PST rev. 1 | 130,7 | -57,9 | 415,0 | -59,1 | 19897,0 | -90,6 | |
| Cooler Master Mobius 120 OC | 20,6 | -68,1 | 369,7 | -71,3 | 3417,2 | -89,3 | |
| Corsair AF120 RGB Elite | 134,5 | -67,3 | 269,1 | -62,2 | 19330,5 | -90,9 | |
| Enermax SquA RGB White | 184,9 | -67,4 | 369,7 | -70,4 | 19897,0 | -90,9 | |
| Endorfy Fluctus 140 PWM | 20,6 | -60,9 | 195,8 | -64,3 | 2487,1 | -85,5 | |
| Endorfy Fluctus 140 PWM ARGB | 20,6 | -62,0 | 391,7 | -68,9 | 19330,5 | -90,8 | |
| Arctic P12 Slim PWM PST | 155,4 | -67,8 | 380,5 | -63,5 | 2031,9 | -89,0 | |
| BeQuiet! Silent Wings Pro 4 (BL099) | 179,6 | -65,5 | 380,5 | -69,3 | 2487,1 | -83,2 | |
| Fractal Design Prisma AL-14 PWM | 138,5 | -68,1 | 391,7 | -65,6 | 5583,4 | -87,2 | |
| Gigabyte Aorus 140 ARGB | 151,0 | -68,4 | 391,7 | -66,5 | 2280,7 | -89,8 | |
| BeQuiet! Light Wings (BL075) | 130,7 | -78,8 | 232,9 | -62,1 | 19330,5 | -90,9 | |
| Fractal Design Aspect 14 RGB PWM | 134,5 | -70,9 | 391,7 | -65,8 | 17726,2 | -91,1 | |
| DeepCool FK120 | 23,1 | -68,0 | 604,1 | -65,8 | 19897,0 | -91,0 | |
| Asus TUF Gaming TF120 | 23,1 | -66,2 | 380,5 | -70,6 | 2957,7 | -88,1 | |
| BeQuiet! Light Wings (BL072) | N/A | N/A | N/A | N/A | N/A | N/A | |
| DeepCool FC120 | 195,8 | -71,5 | 380,5 | -72,8 | 3417,2 | -85,7 | |
| Nidec Servo Gentle Typhoon D1225C (2150/12) | 25,6 | -68,0 | 239,7 | -62,3 | 2280,7 | -84,1 | |
| BeQuiet! Shadow Wings 2 (BL085) | N/A | N/A | N/A | N/A | N/A | N/A | |
| Noctua NF-A12x25 PWM | 28,3 | -72,5 | 269,1 | -69,8 | 2215,8 | -89,6 | |
| Corsair AF120 Elite (black) | 130,7 | -78,5 | 369,7 | -70,9 | 19330,5 | -90,9 | |
| Cooler Master MasterFan SF120M | 184,9 | -69,7 | 369,7 | -67,9 | 4305,4 | -73,8 | |
| Akasa Alucia SC12 | 130,7 | -70,3 | 380,5 | -68,6 | 2031,9 | -90,4 | |
| BeQuiet! Silent Wings Pro 4 (BL098) | 47,6 | -75,5 | 339,0 | -60,5 | 2791,7 | -83,3 | |
| Thermalright X-Silent 120 | 82,3 | -74,9 | 369,7 | -91,1 | 18780,2 | -91,1 | |
| Fractal Design Aspect 12 RGB PWM | 130,7 | -69,5 | 285,1 | -67,2 | 19330,5 | -90,8 | |
| BeQuiet! Silent Wings 3 (BL066) | 164,7 | -64,2 | 339,0 | -69,1 | 18780,2 | -90,8 | |
| Gelid Zodiac | 184,9 | -61,8 | 380,5 | -68,7 | 18780,2 | -90,8 | |
| Fractal Design Dynamic X2 GP-12 PWM | 146,7 | -72,2 | 391,7 | -71,5 | 2280,7 | -83,1 | |
| BeQuiet! Pure Wings 2 (BL046) | 130,7 | -71,3 | 369,7 | -69,3 | 19330,5 | -90,6 | |
| Gigabyte Aorus 120 ARGB | 160,0 | -61,9 | 369,7 | -70,4 | 2487,1 | -88,3 | |
| Arctic BioniX P120 A-RGB | 151,0 | -67,6 | 369,7 | -72,0 | 2873,5 | -90,6 | |
| Akasa OTTO SF12 | 190,3 | -66,7 | 380,5 | -67,7 | 4695,1 | -86,3 | |
| Cooler Master SickleFlow 120 ARGB | 138,5 | -66,7 | 1076,3 | -67,1 | 3835,7 | -89,2 | |
| Alphacool SL-15 PWM | 151 | -71,5 | 232,9 | -66,5 | 2280,7 | -89,6 | |
| Arctic BioniX F120 | 195,8 | -68 | 201,6 | -62,2 | 19330,5 | -90,7 | |
| SilverStone SST-AP123 | 130,7 | -70,9 | 369,7 | -67,7 | 19897 | -90,9 | |
| Noctua NF-P12 redux-1700 PWM | 184,9 | -62,2 | 369,7 | -67,0 | 19897 | -91,1 | |
| SilentiumPC Fluctus 120 PWM | 25,6 | -69,6 | 239,7 | -62,0 | 2957,7 | -90,0 | |
| MSI MEG Silent Gale P12 | 28,3 | -73,5 | 380,5 | -71,0 | 2487,1 | -85,9 | |
| Asus ROG Strix XF120 | 23,1 | -62,9 | 369,7 | -71,7 | 2347,5 | -89,1 | |
| Akasa Vegas X7 | N/A | N/A | N/A | N/A | N/A | N/A | |
| Reeven Coldwing 12 | 195,8 | -68,3 | 380,5 | -71,3 | 2031,9 | -90 | |
| Reeven Kiran | 130,7 | -73,1 | 219,8 | -70,2 | 17726,2 | -89,4 | |
| SilentiumPC Sigma Pro 120 PWM | 138,5 | -70,0 | 1522,2 | -71,9 | 2560 | -82,9 | |
| SilentiumPC Sigma Pro Corona RGB 120 | 190,3 | -70,5 | 369,7 | -66,5 | 2416,3 | -82,4 | |
| SilverStone SST-AP121 | 130,7 | -66,8 | 439,7 | -66,1 | 2347,5 | -90,9 | |
| SilverStone SST-FQ121 | 127 | -71,2 | 369,7 | -66,5 | 2031,8 | -81,4 | |
| Xigmatek XLF-F1256 | 130,7 | -71,5 | 239,7 | -60,9 | 18780,2 | -91,1 |
Why is a value sometimes missing for a fan? There can be several reasons. Most commonly, it’s because the fan couldn’t be regulated to the target noise level. Some fans have higher minimum RPM (or they spin slowly but have an excessively noisy motor), or they are simply slower models that can’t reach higher decibel thresholds. Results are also omitted from graphs if the impeller scrapes against the mesh of a nylon filter. In such cases, we classify the combination as incompatible. And of course, a zero in the graphs naturally appears in situations where we record an actual 0.00. This often occurs at extremely low speeds when obstacles are present or during vibration measurements.
Or maybe the Vento Pro 120 PWM deserved the “Top-notch” award? We did consider it, but in the end – given a few compromises and the low official price – we decided differently from an HWCooling editorial standpoint. 🙂
