The TUF GeForce RTX 5070 Ti has a heatsink large enough to mount 140 mm fans. Swapping them is easy: remove a few screws and lift off the shroud with stock fans without breaking the warranty seal. We’ll use that to try a niche option—the low-profile 140 mm Arctic P14 Slim PWM PST. The card gets wider but keeps a reasonable height and, at similar temperatures, runs way quieter.
Card with 3× Asus Axial-tech fans (stock), detailed results

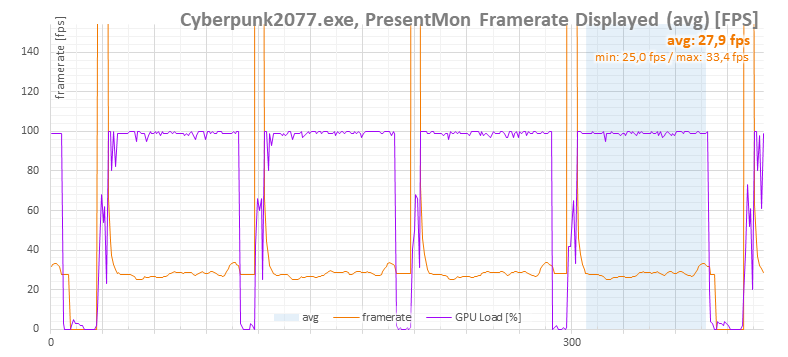

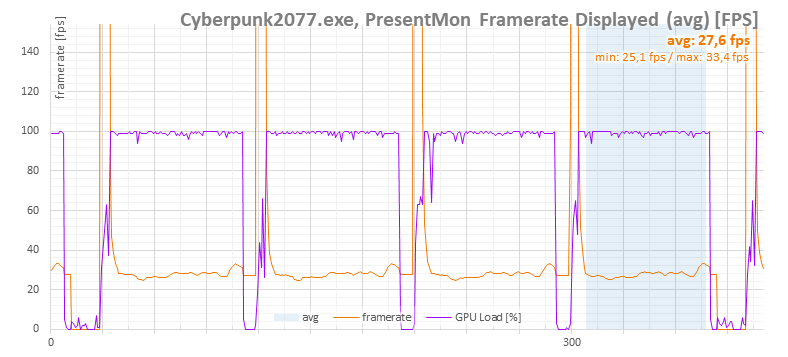

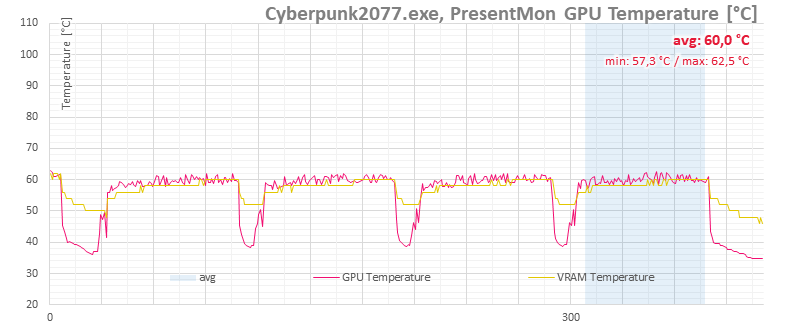

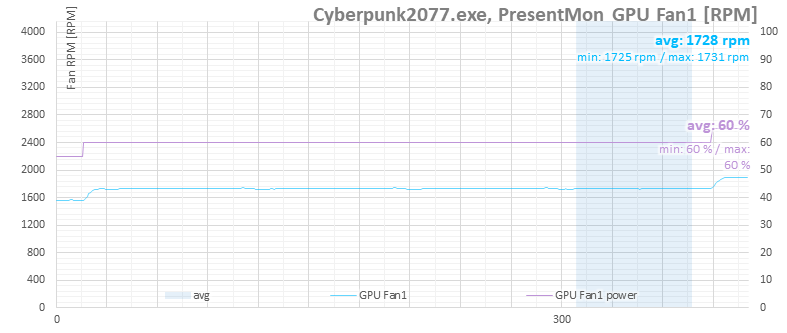

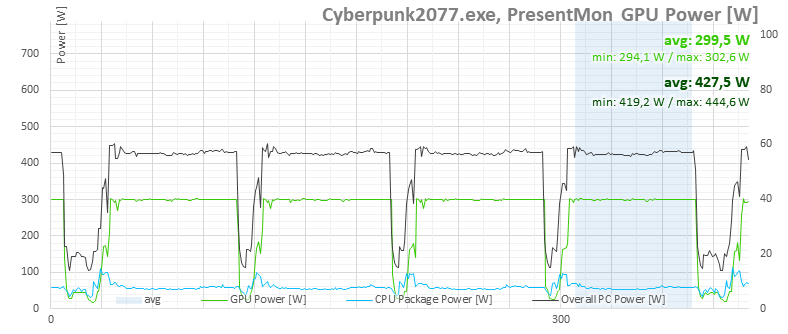

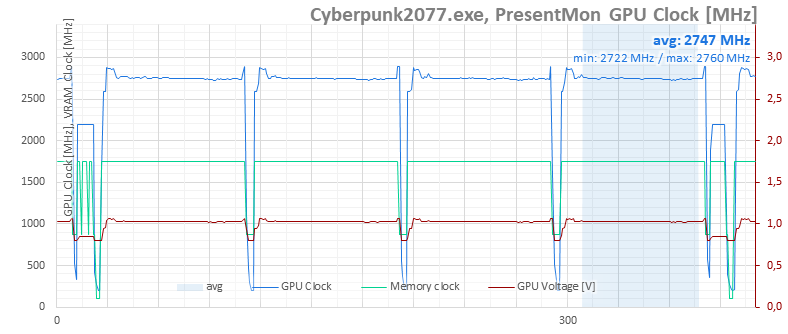

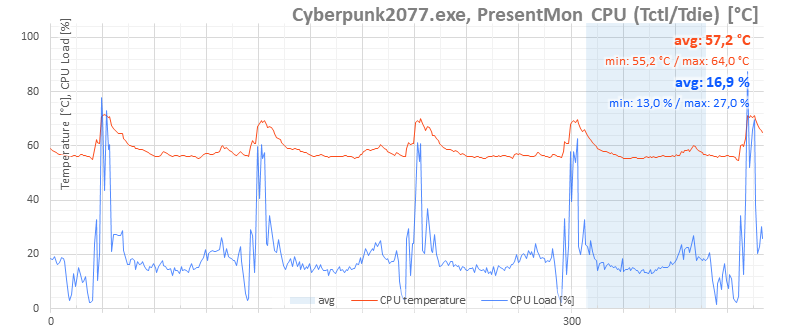

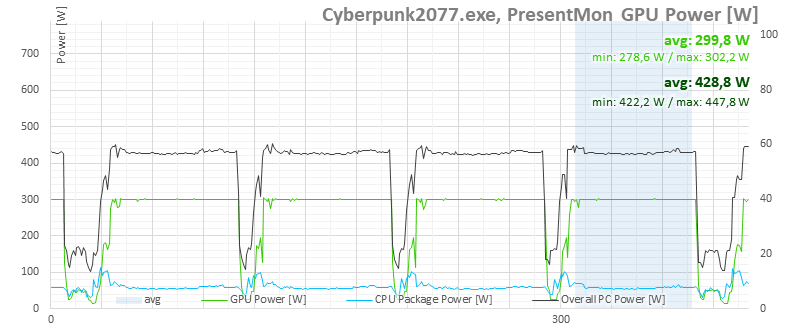

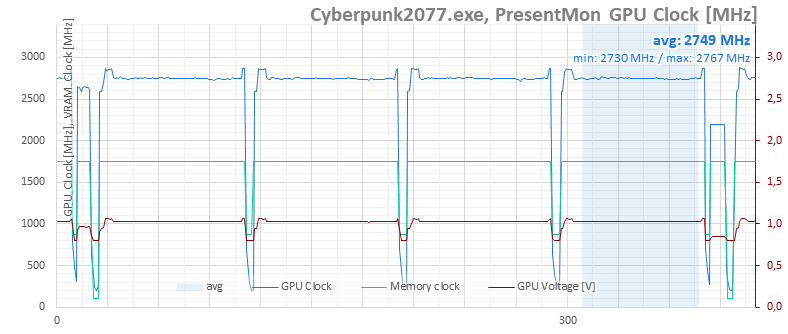

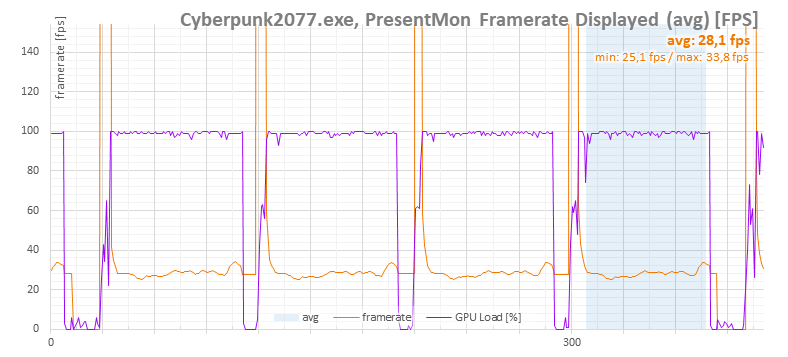

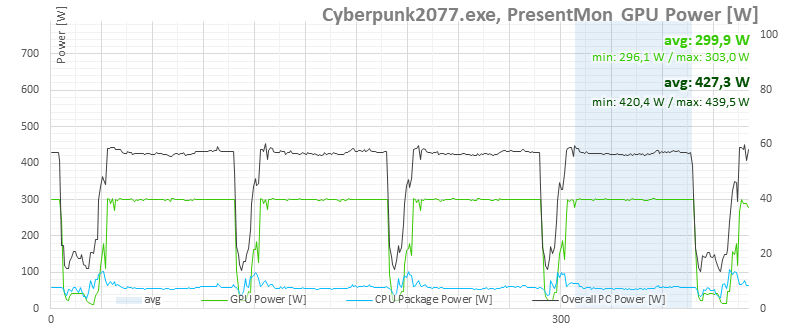

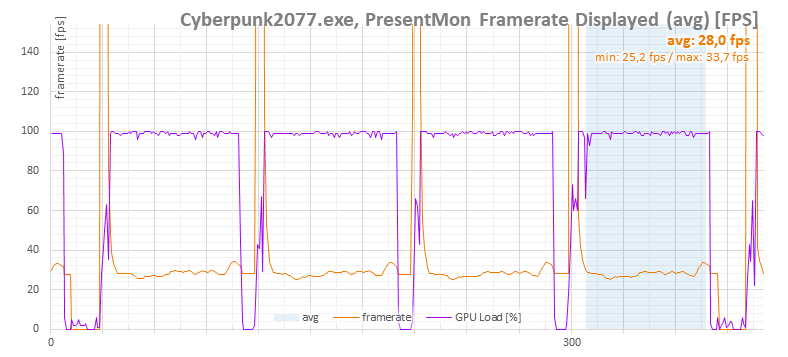

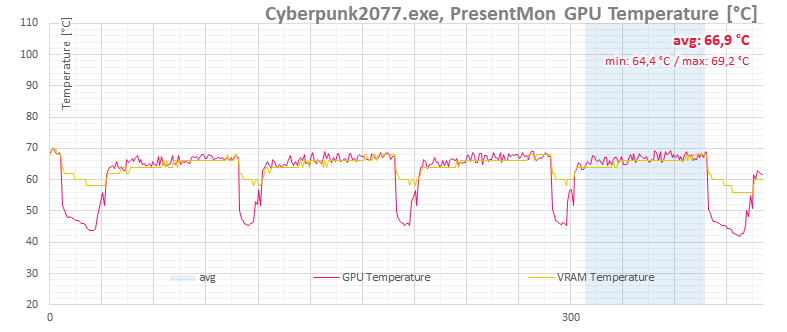

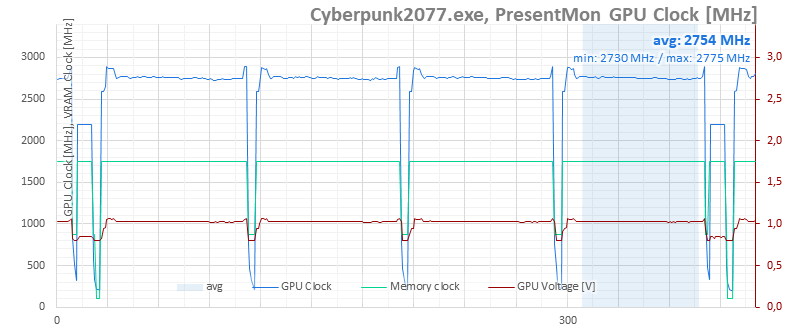

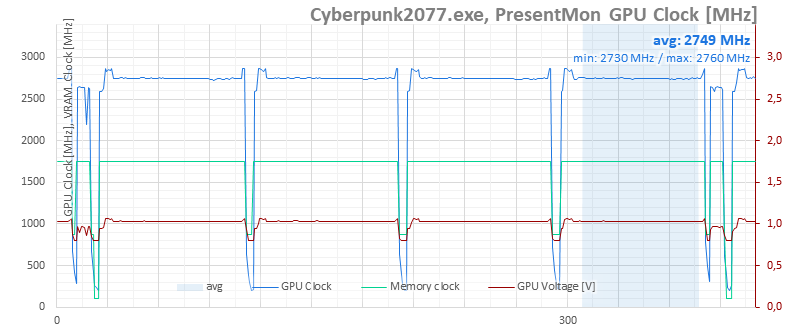

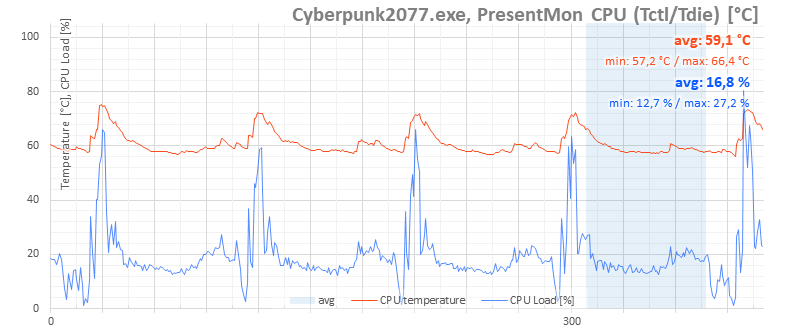

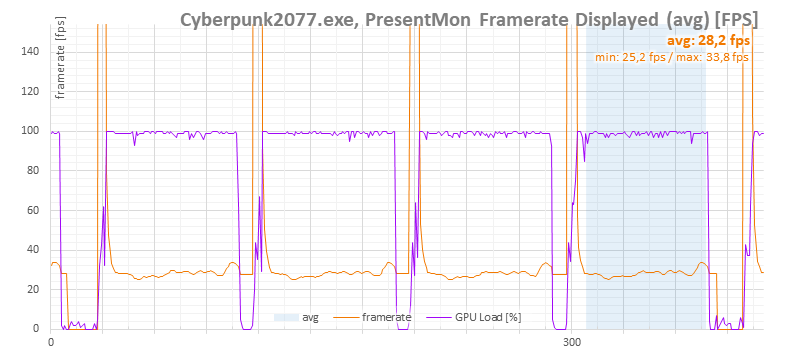

The following charts show detailed time-series measurements. Each setting has four runs, with averages taken from the highlighted segment. As you move the cursor across the interactive chart from left to right, it shows the values measured for that fan-speed range.
If the interactive charts don’t work, there are click-to-expand images for each setting below. These cover steps from 30% to 100% in 5% increments, and the selected value is also shown in the image name.
⠀
