The GeForce RTX 5080 Suprim SOC features a vapor chamber cooler just as massive as the one found on the 600W RTX 5090 Suprim SOC. With this extra cooling capacity, the fans on the more efficient RTX 5080 can run at lower speeds, resulting in excellent thermals and minimal noise. However, this high-end cooling solution also drives up the price—you’re paying a premium for one of the best factory-overclocked RTX 5080 cards available.

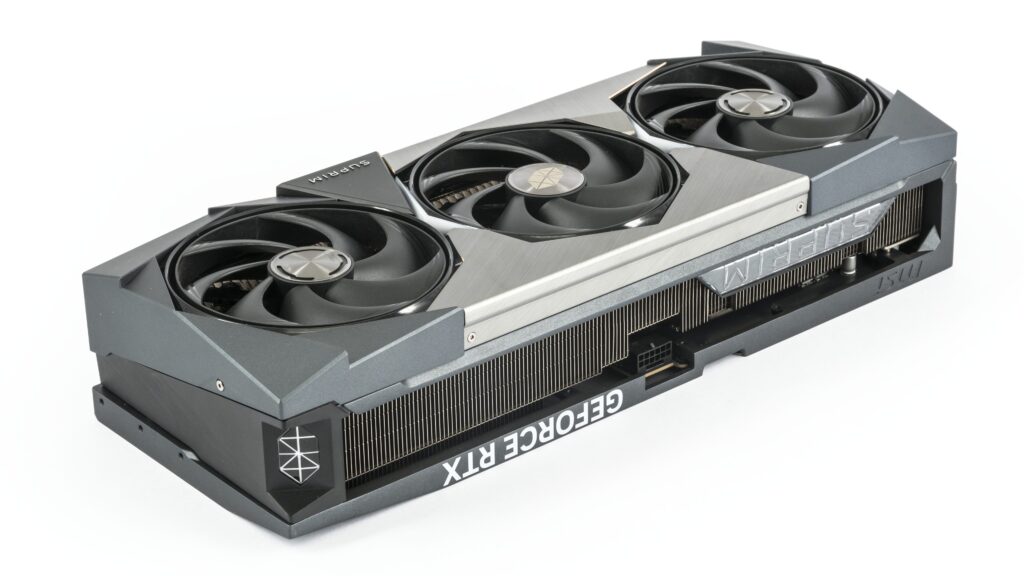

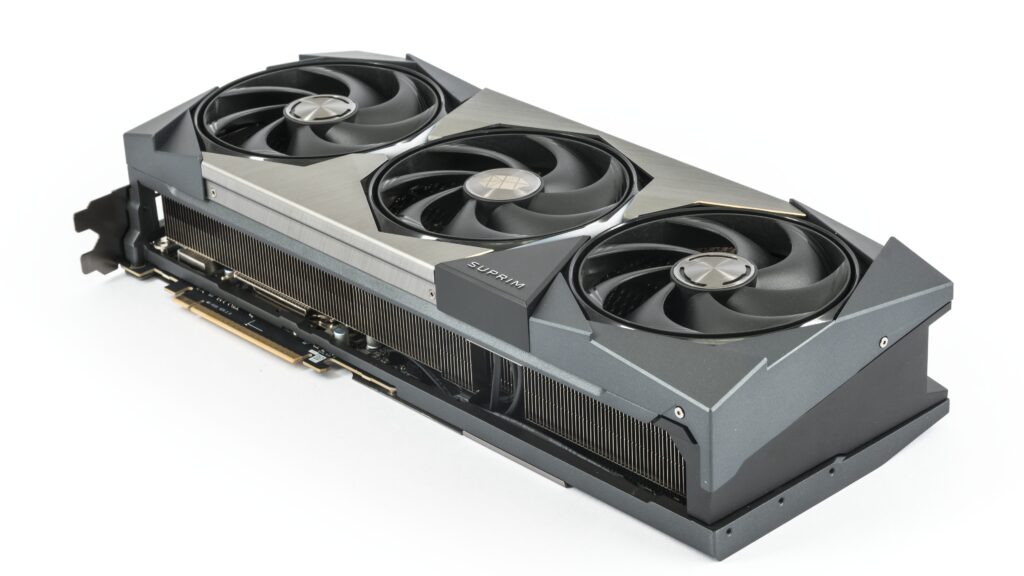

The card’s massive four-slot cooler features a sturdy metallic-gray plastic shroud with black accents. Its center section is reinforced with a brushed metal plate, edged with gold trim around the fans for premium aesthetics.

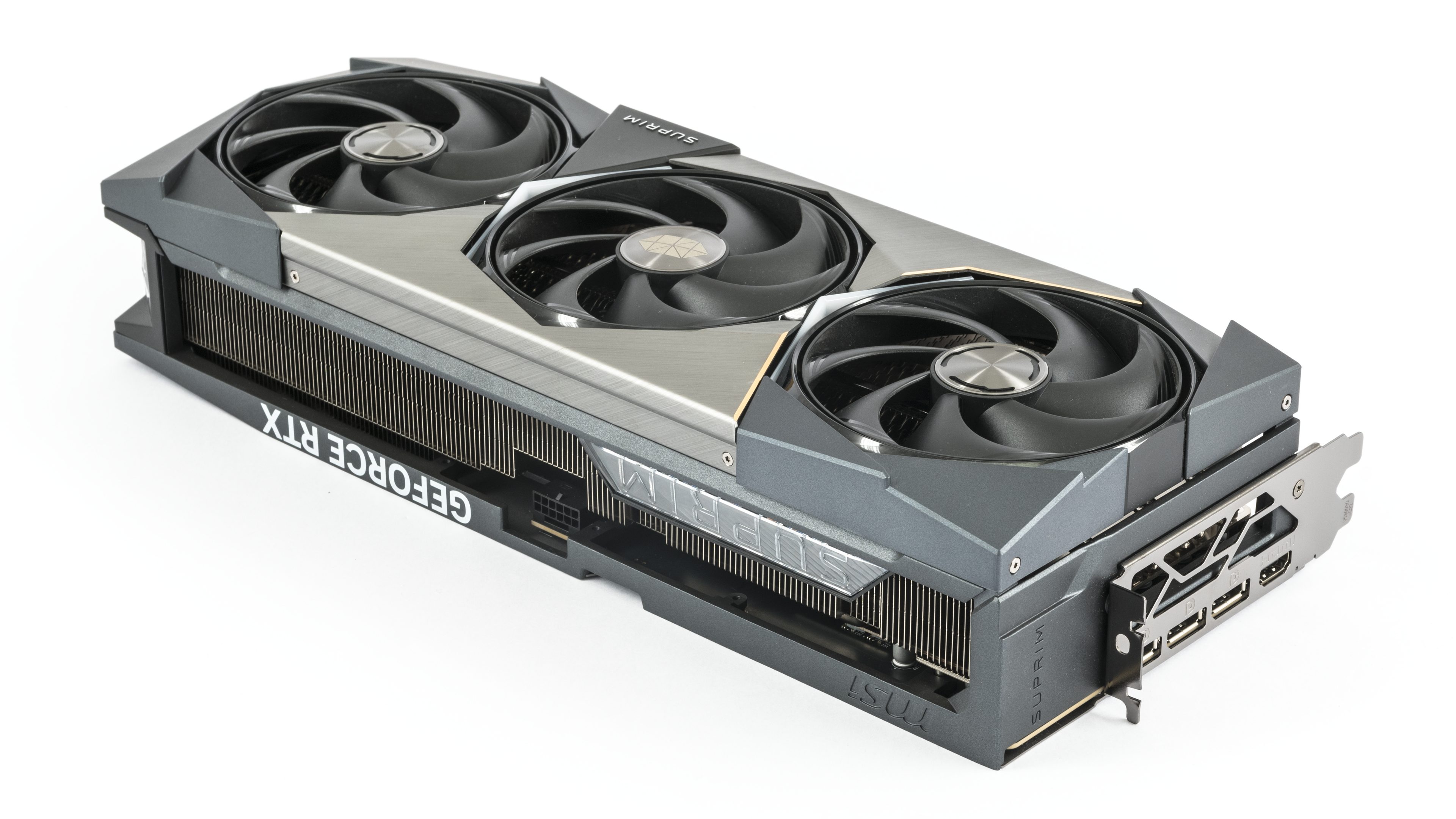

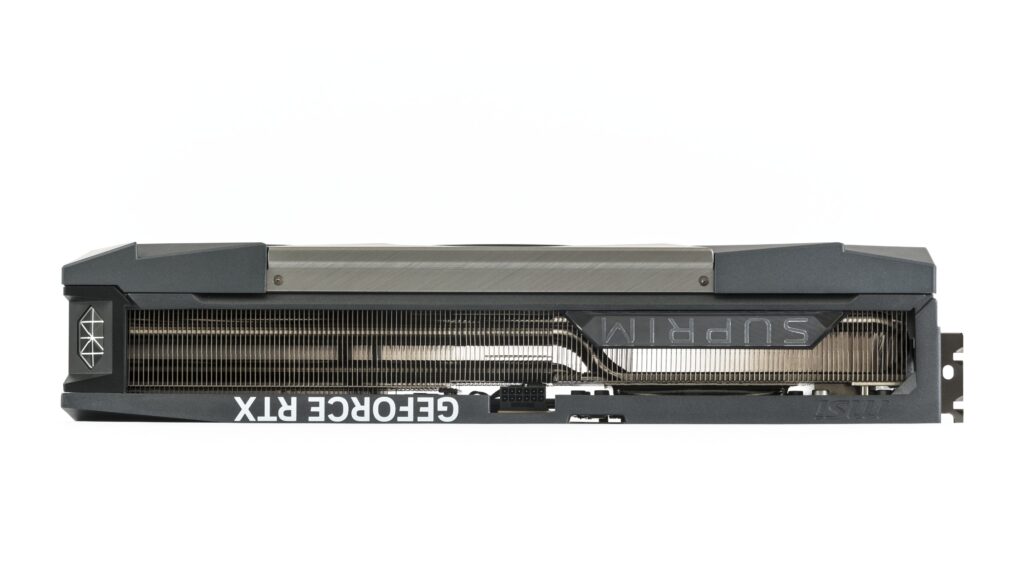

The card’s side features a large backlit Suprim logo with ARGB lighting, complemented by additional lighting on the rear corner.

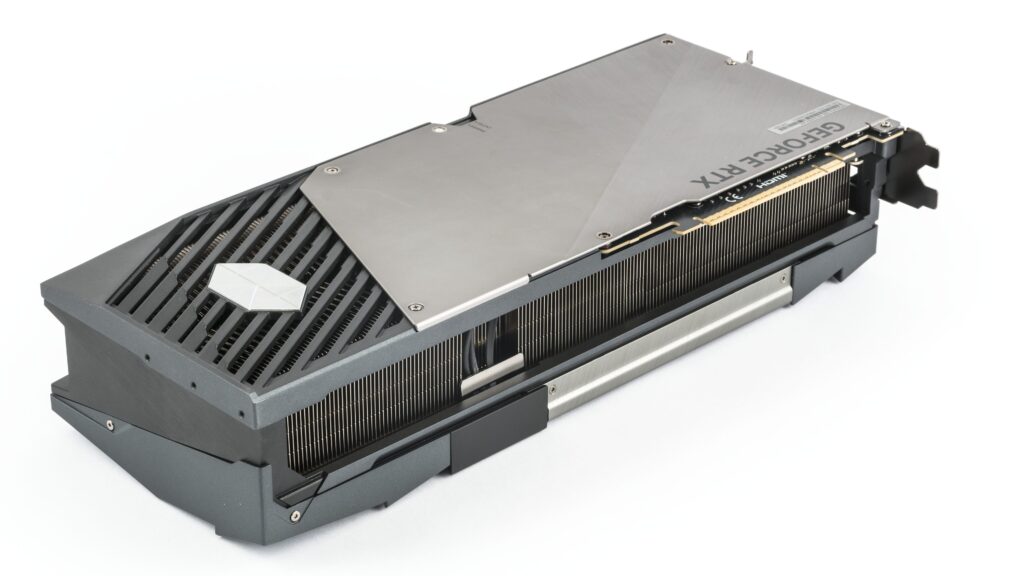

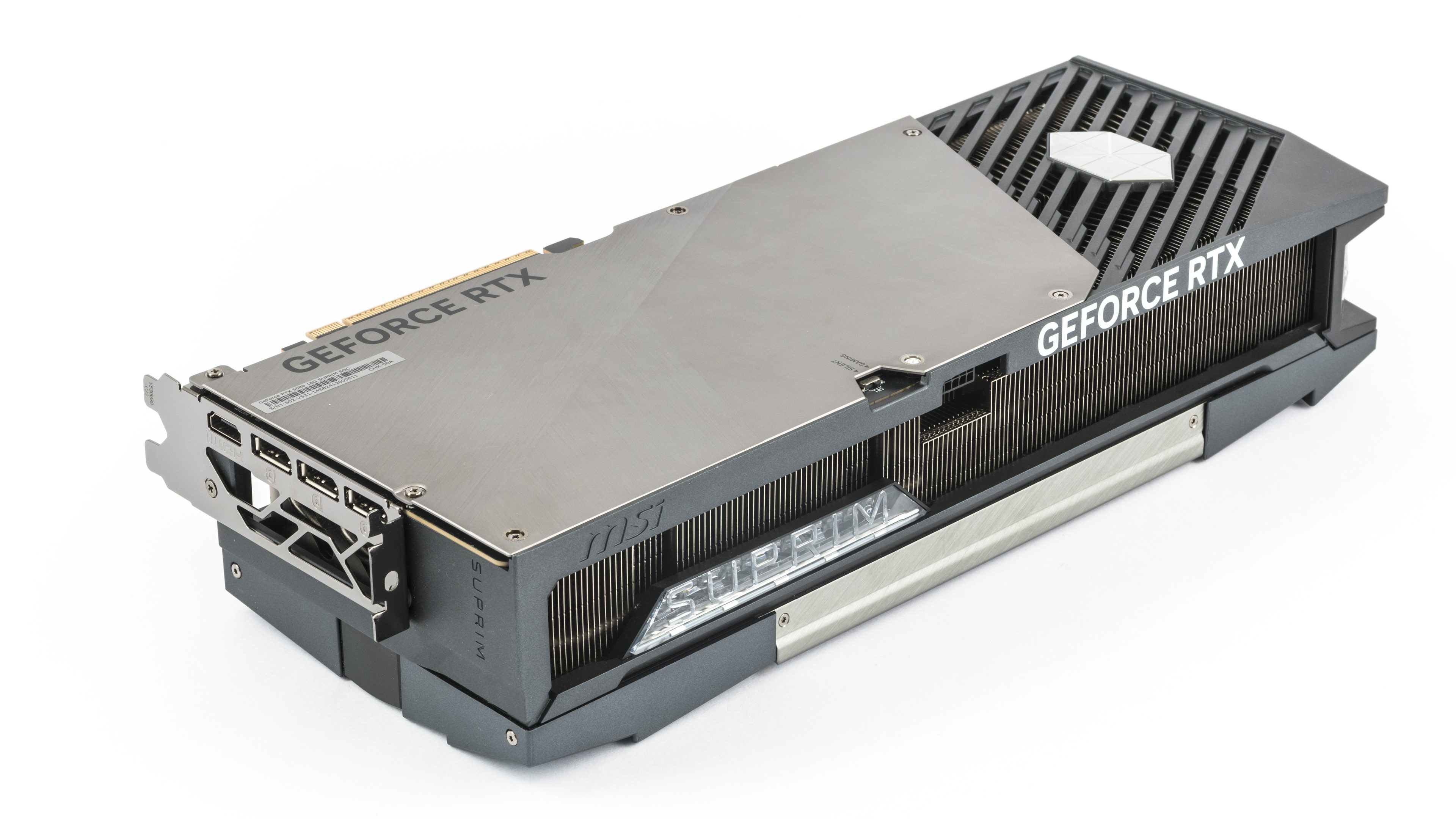

A simple metal backplate covers about three-quarters of the rear, revealing the massive internal reinforcement frame through its perforated section. Thermal pads beneath the backplate only contact the GPU die and power connector areas.

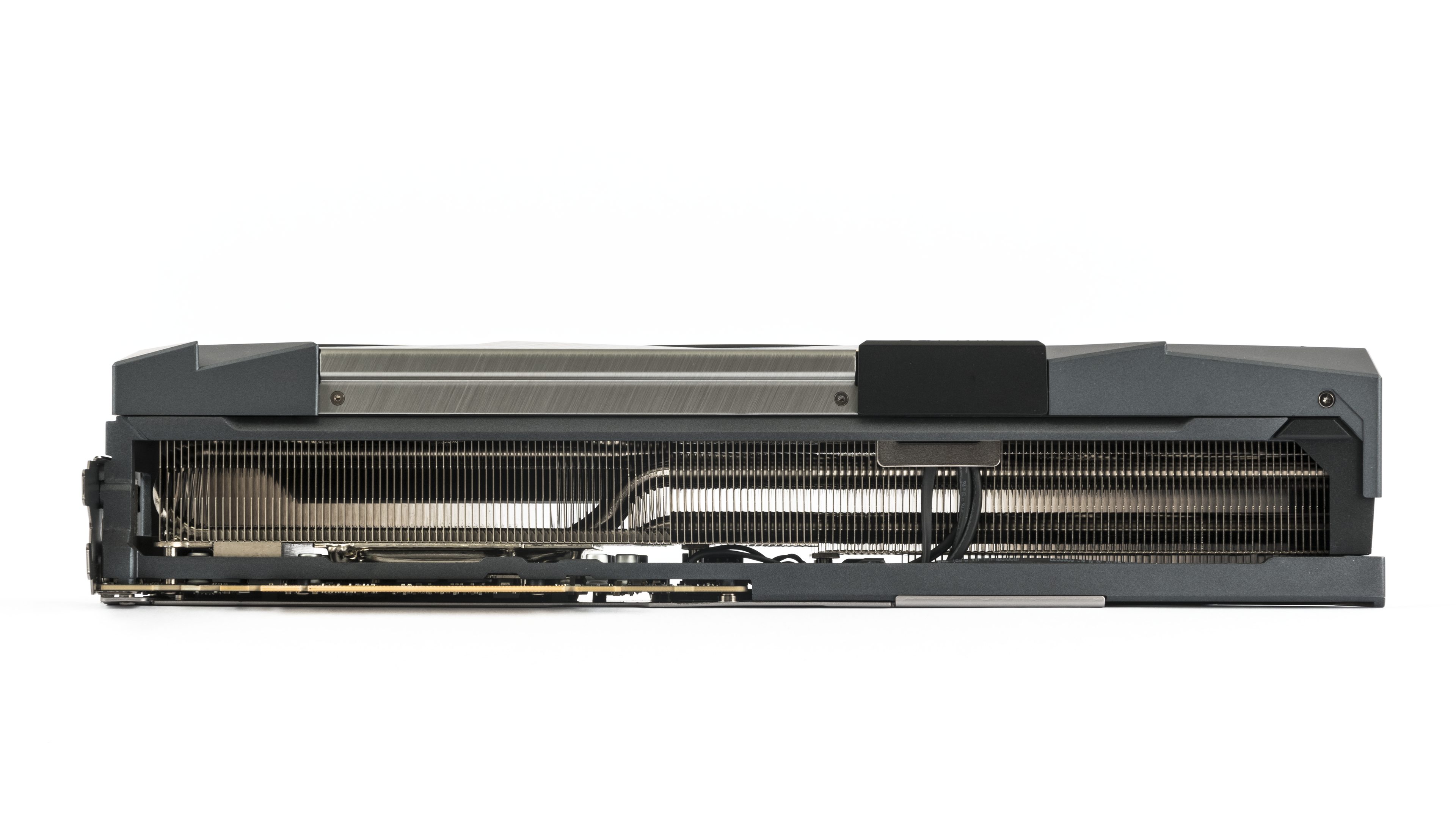

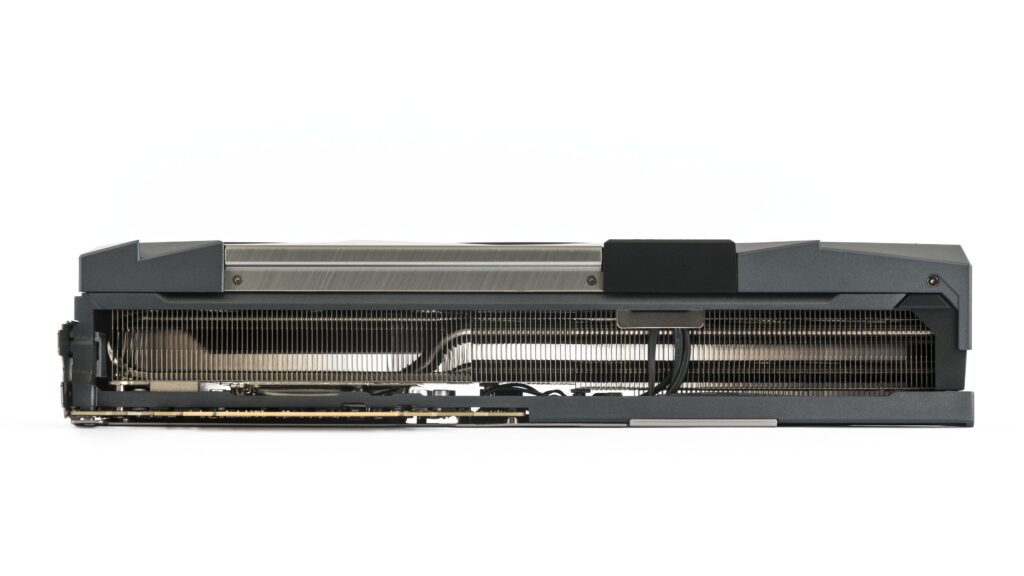

The cooling foundation consists of a vapor chamber that dissipates heat from both the GPU and memory. Transverse fin arrays occupy all available space beneath the shroud, with the VRM heat also routed into this massive heatsink.

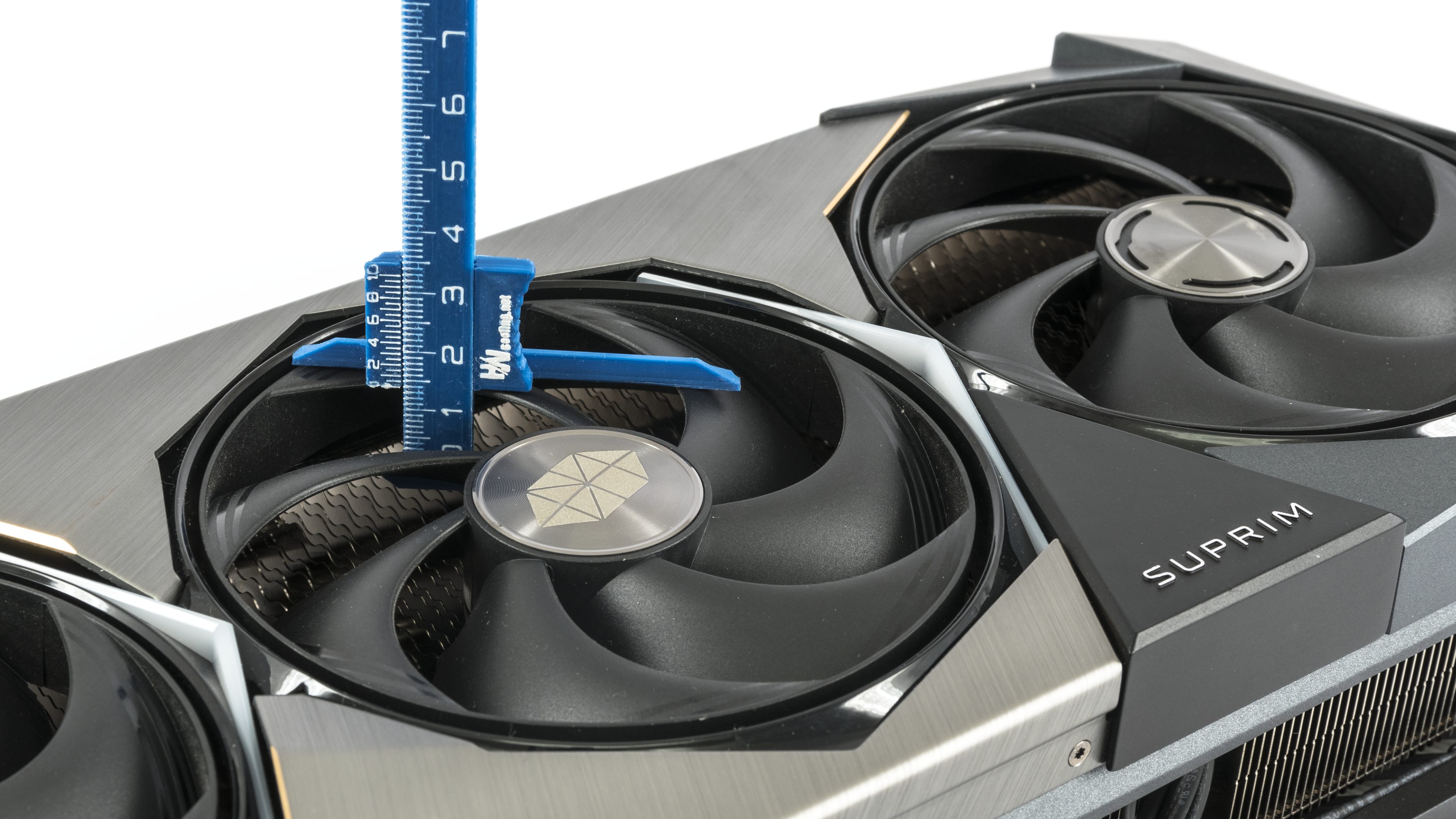

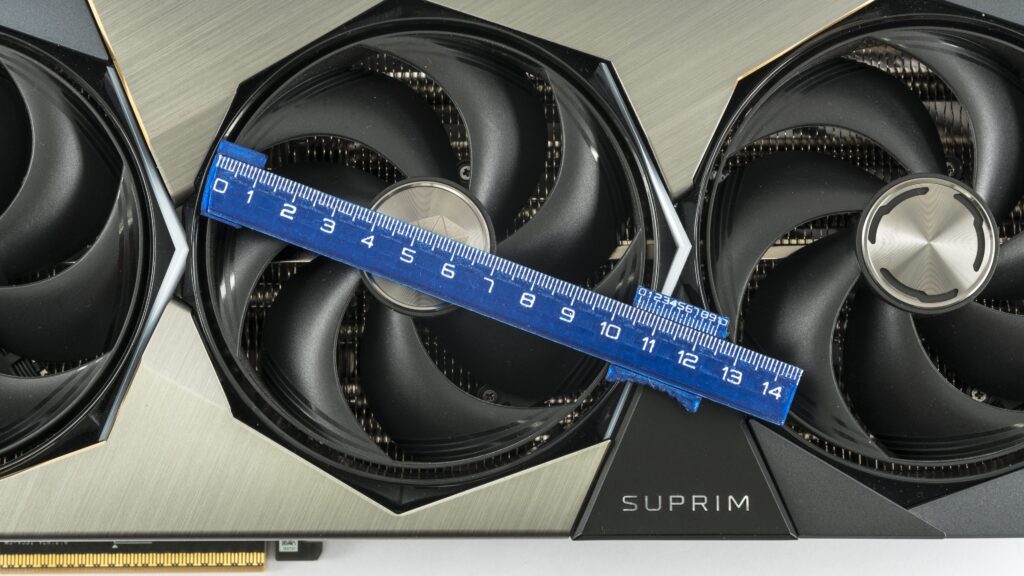

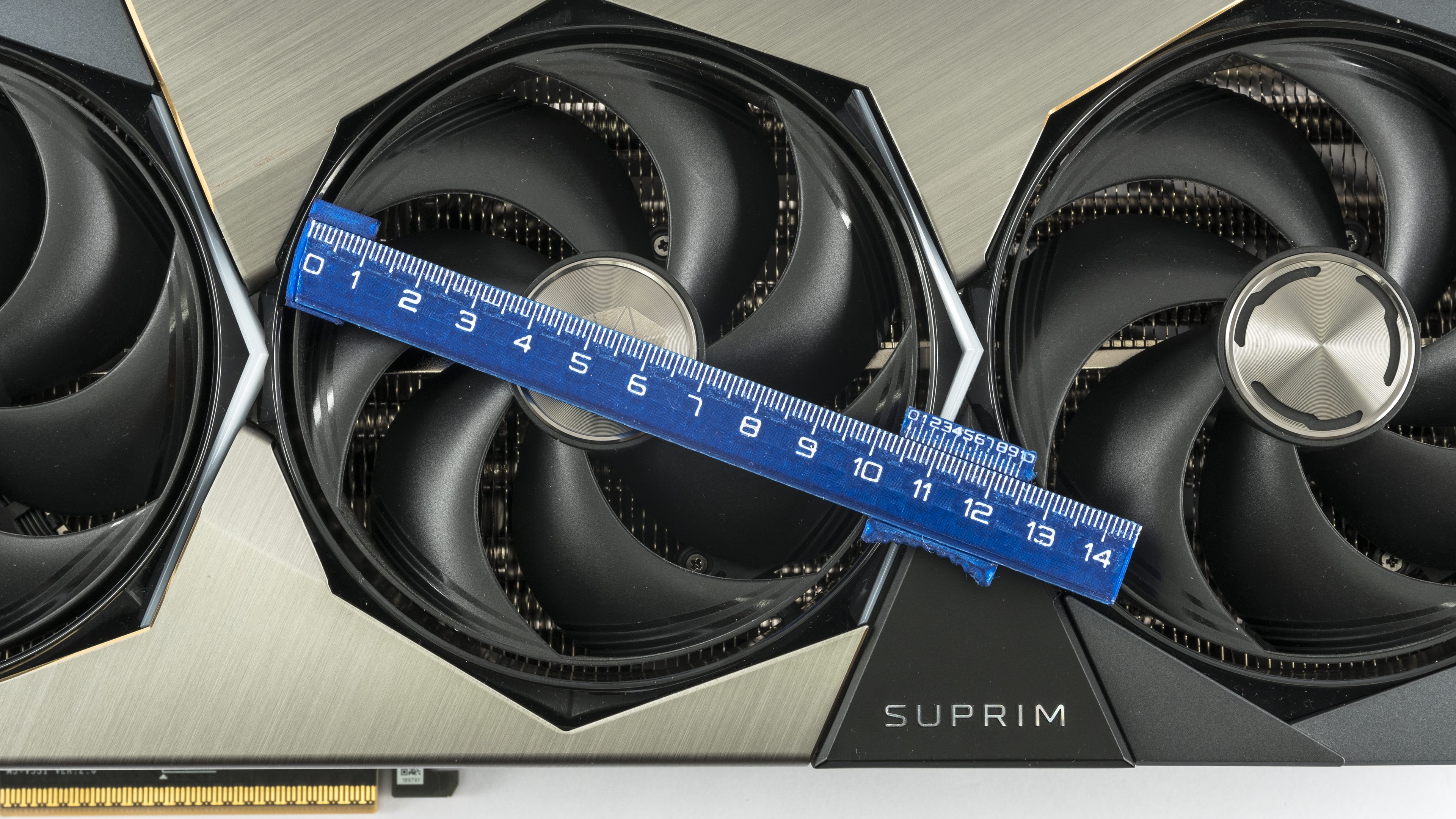

The large fans feature 104mm diameter impellers with 15mm height.

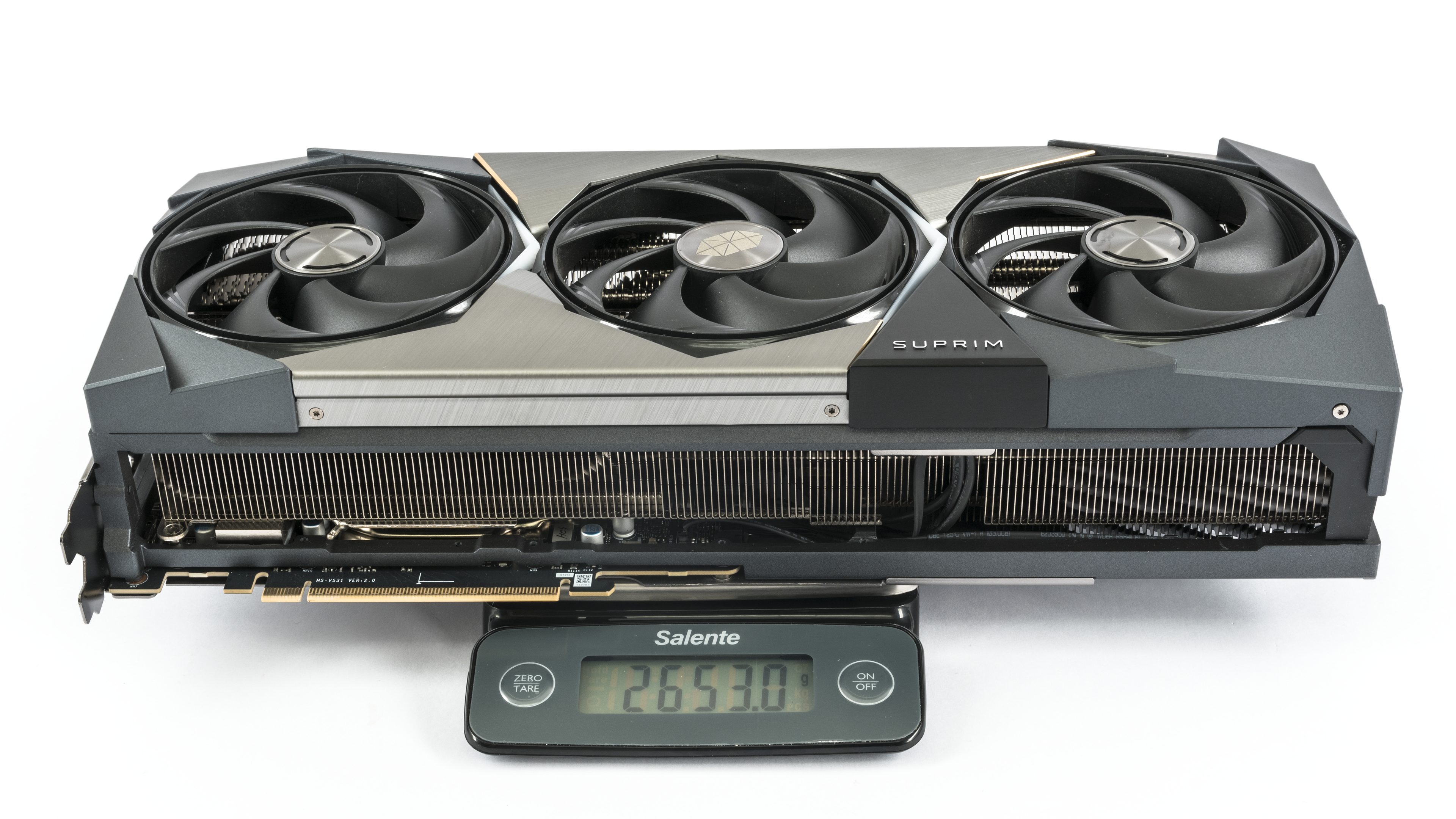

The card is about 300 grams lighter than the previously tested RTX 5090 Suprim SOC. Still, it weighs over two and a half kilograms, so make sure to support it after installation using the included brace.

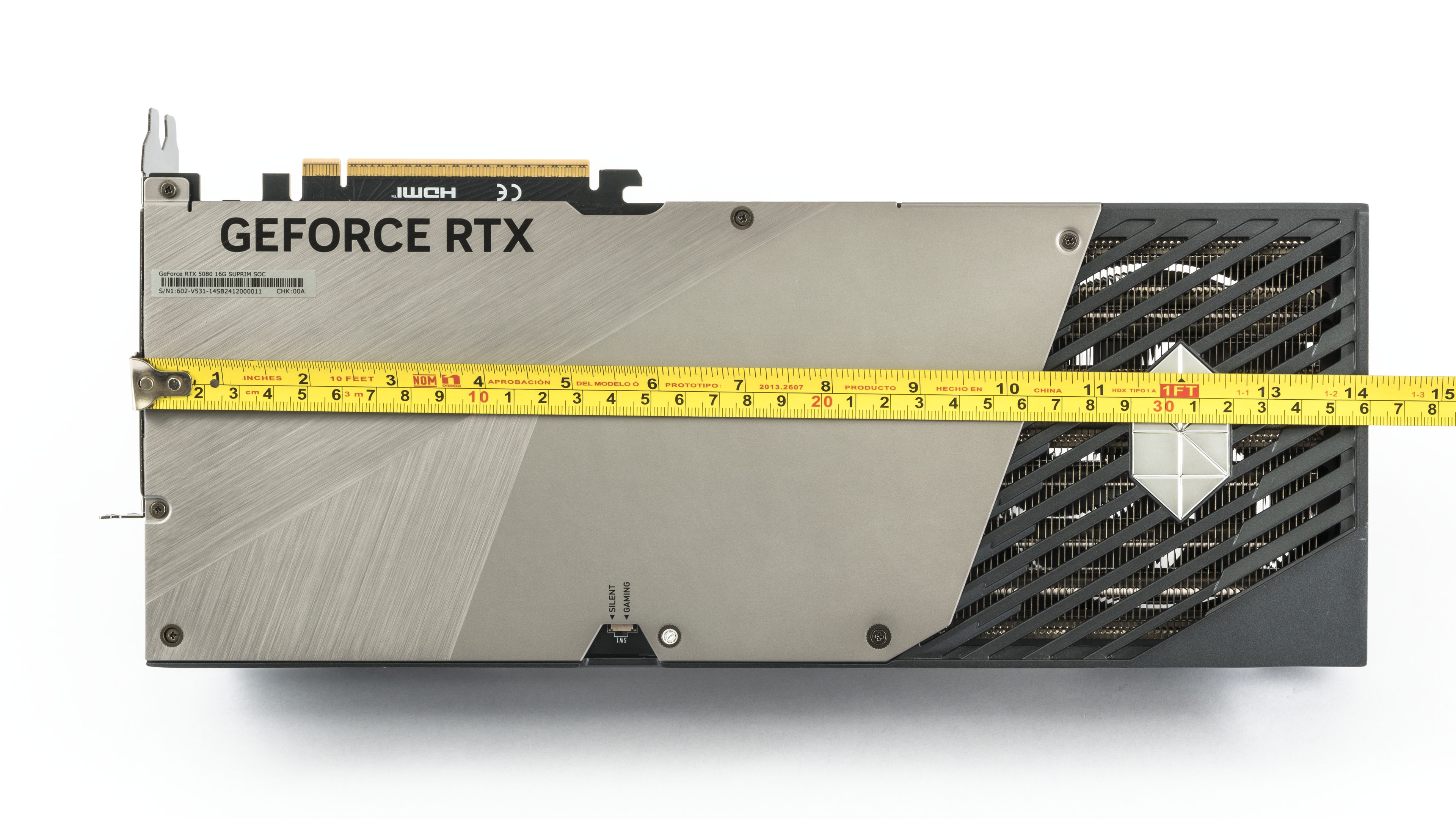

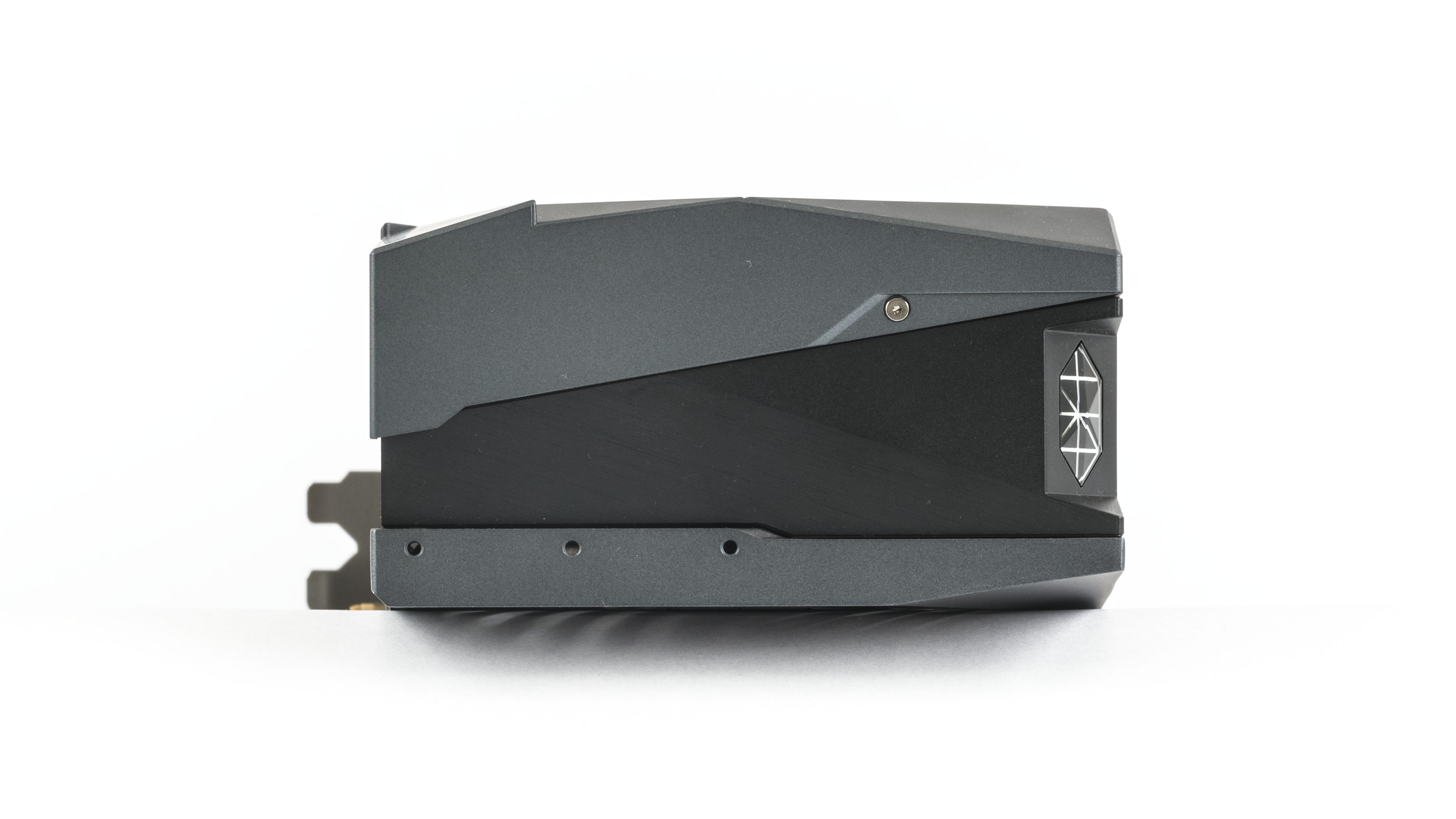

At 36 cm long, it will challenge compatibility with compact cases – the likelihood of interfering with front panels or fans is significantly higher than average.

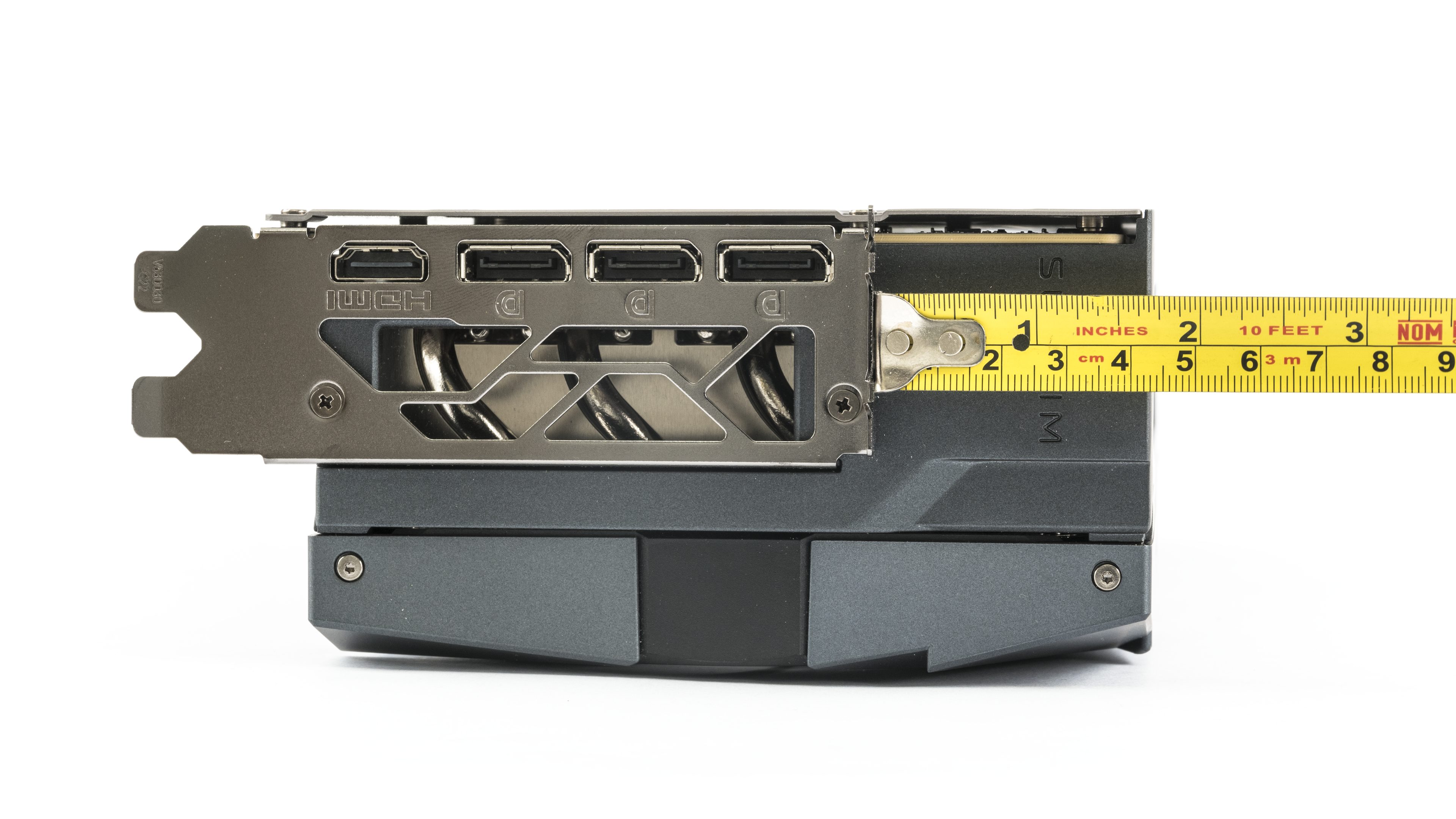

The card extends over 4cm beyond its bracket width. Despite using a dual-slot bracket, it physically occupies four expansion slots.

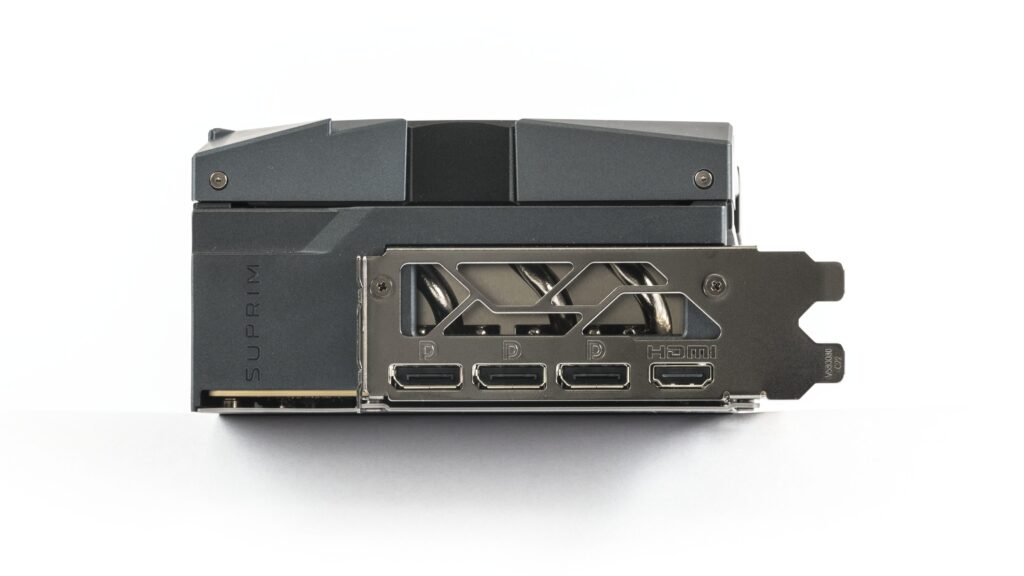

The bracket offers the standard combination: three DisplayPort 2.1b (UHBR20) and one HDMI 2.1b connector.

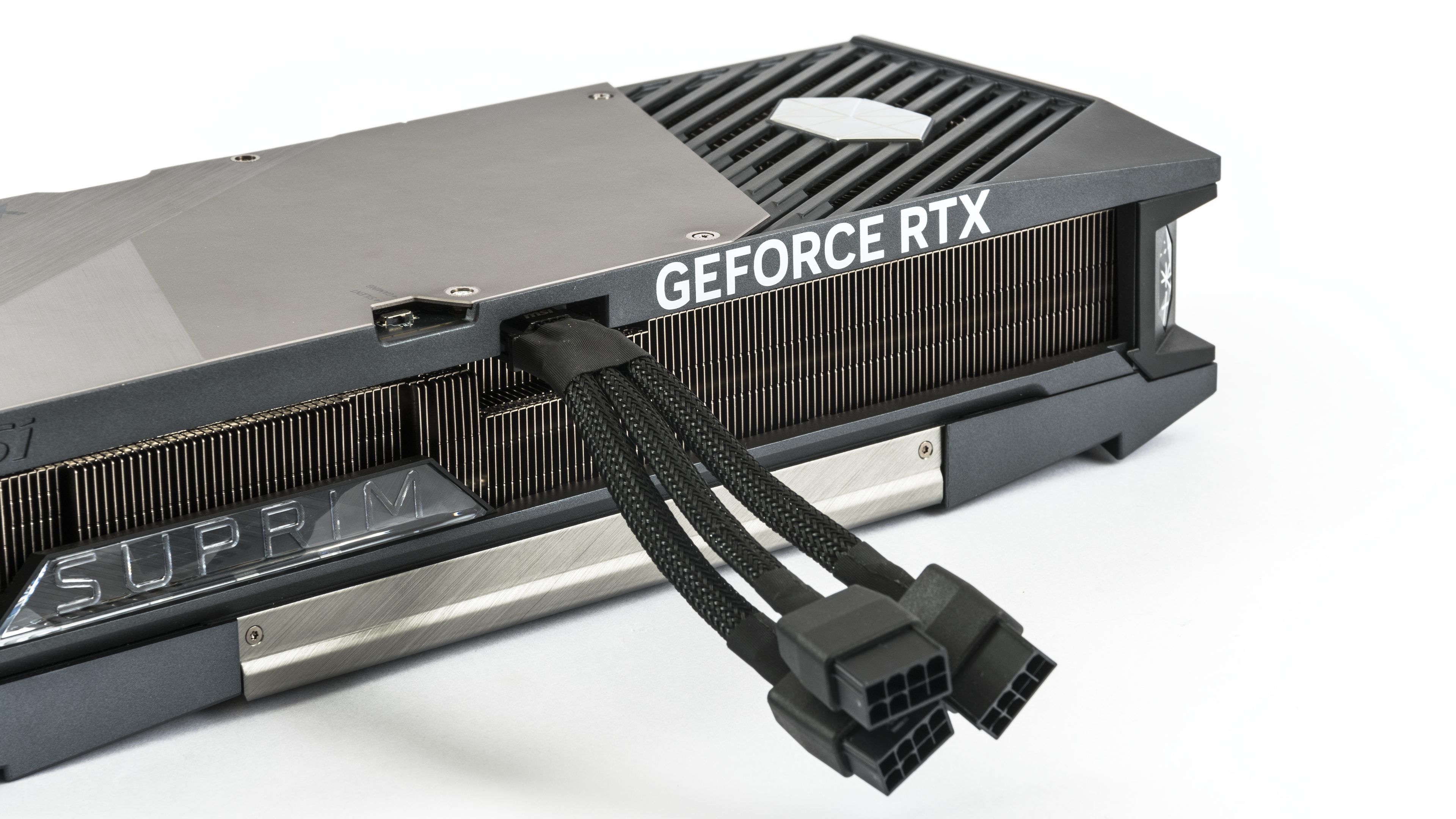

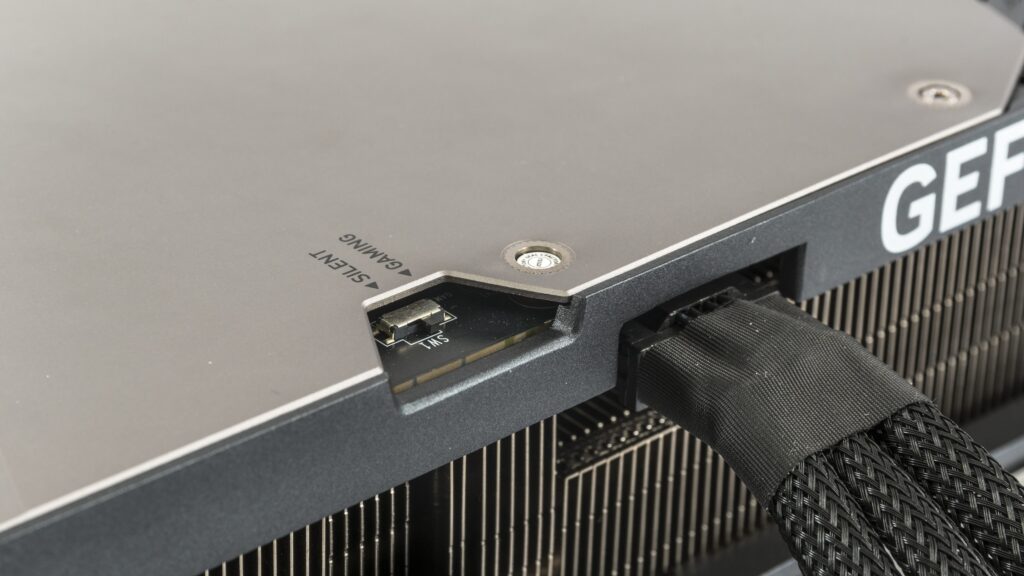

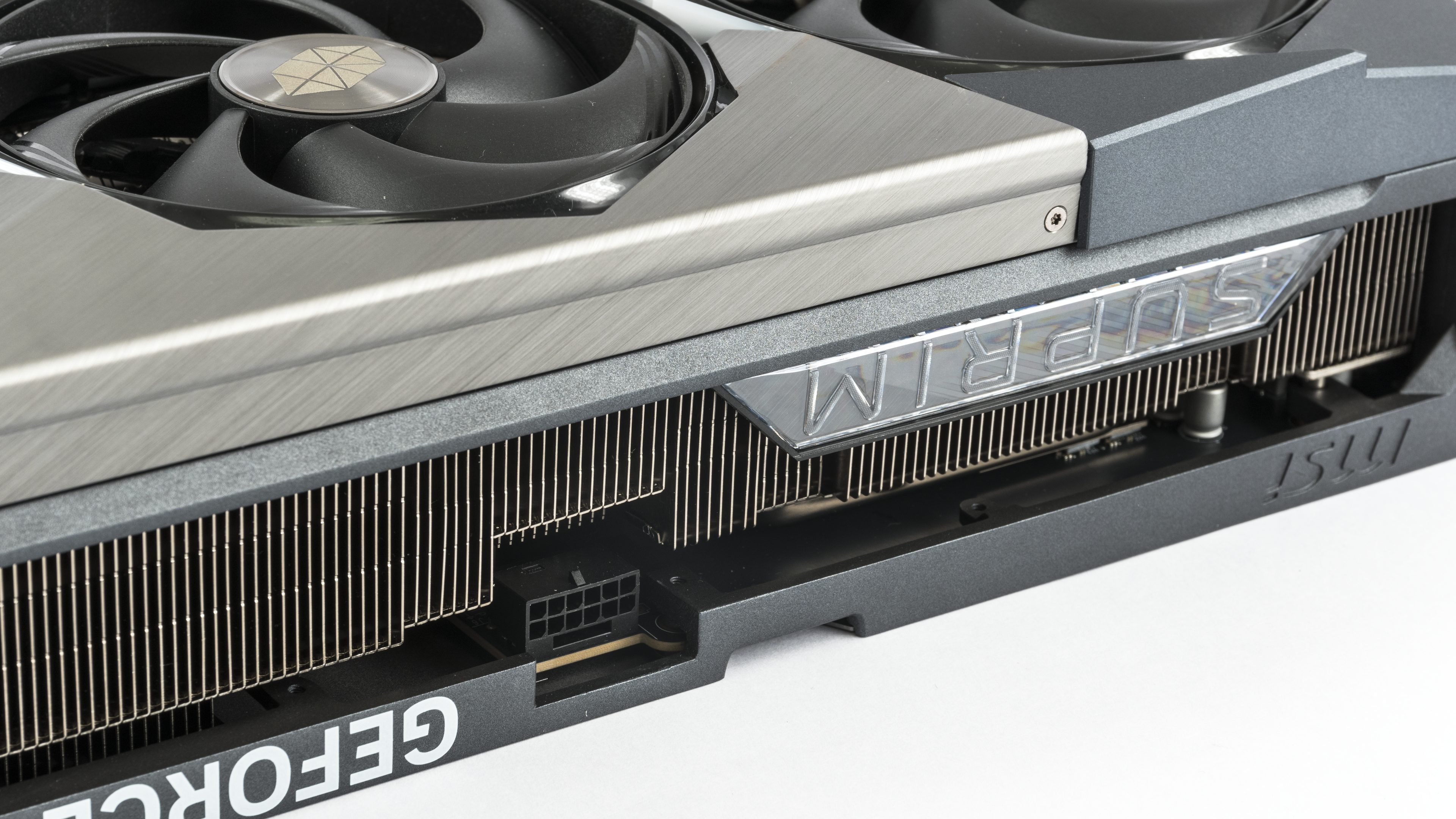

For additional power, it uses a single 600W 12V-2×6 connector. While the RTX 5090 had a thermal pad underneath it, it seems to be missing here.

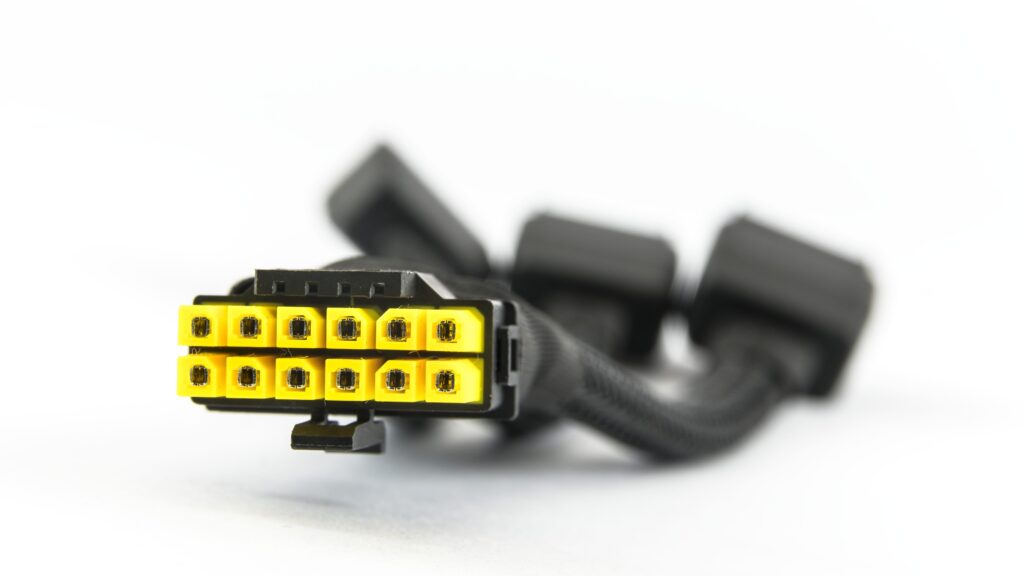

MSI’s distinctive yellow-pinned power adapter provides clear visual confirmation of proper seating – no yellow should remain visible when fully connected. While cable stiffness matches other manufacturers (except NVIDIA’s more flexible Founders Edition adapters), this color-coding offers unique installation feedback.
With the physical examination complete, let’s proceed to test results.
What are the standout features of the MSI GeForce RTX 5080 Suprim SOC?
From my point of view, it’s the cooler with its top-notch efficiency. 🙂
