Asus cards such as the Prime GeForce RTX 5070 allow easy removal of the shroud with the fans, without removing the heatsink itself. This opens room for experimentation with cooling.We will find out how much you can gain by replacing stock fans with a pair of 120mm Arctic P12 Pro A-RGB fans. We will measure operating characteristics from 20 to 100% fan speed and see how much the card’s noise level drops at identical temperatures.
Final thoughts
Finally, there is a comparison graph summarizing how the card’s noise level changed at identical temperatures after replacing the original Axial-Tech fans. I remind you that this was a sample with lower-quality fans, where one fan exhibited noticeable rattling and even at minimum speed the sound level meter showed 32 dBA. I also tested a second unit, which performed better in terms of noise, but even there the minimum was around 31 dBA.

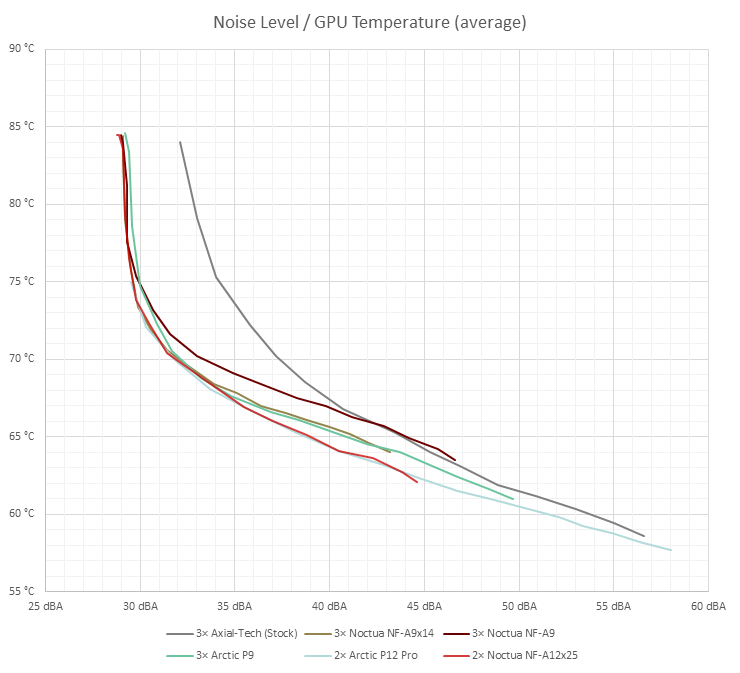

How the noise level shifts at identical temperatures can be seen in the graph below. The horizontal axis shows cooler noise, while the vertical axis shows the GPU temperature.
The graph shows the relationship between noise level and the average GPU temperature sensor value across the entire measured interval. The peak value from the average GPU temperature sensor is almost always 1–2 °C higher.
Almost every test brings some kind of surprise. With the Arctic P12 Pro, it was the relatively high speed already at the lower boundary where measurements begin, i.e. at 20% fan performance. Most 120mm fans spin at around 300–500 rpm at 20% PWM, but the P12 Pro fans already run at 880 rpm, higher than all other 120mm fans I have tested so far. Measurements thus start at a higher airflow than with other fans in the comparison; in terms of noise, we are still below what I can measure with the sound level meter. The light-blue curve therefore starts at around 75 °C, but temperatures are 9 °C lower than with the other fans in the comparison.
This is also due to the wide operating speed range. And at the maximum speed of 3000 rpm, the P12 Pro fans finally manage to push temperatures lower than the stock Asus Axial-Tech fans originally installed on the card. Across the entire rpm range, noise at identical temperatures is lower than with all tested 92mm fans. So if you have no issues with space in the case and under the card, 120mm fans like the Arctic P12 Pro are a fairly obvious choice.

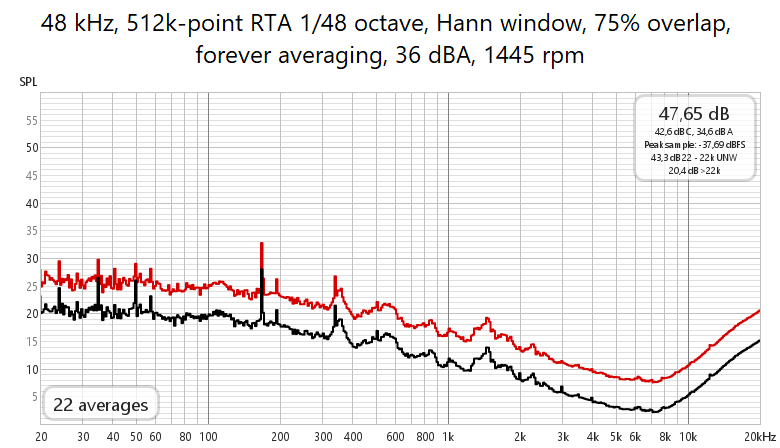

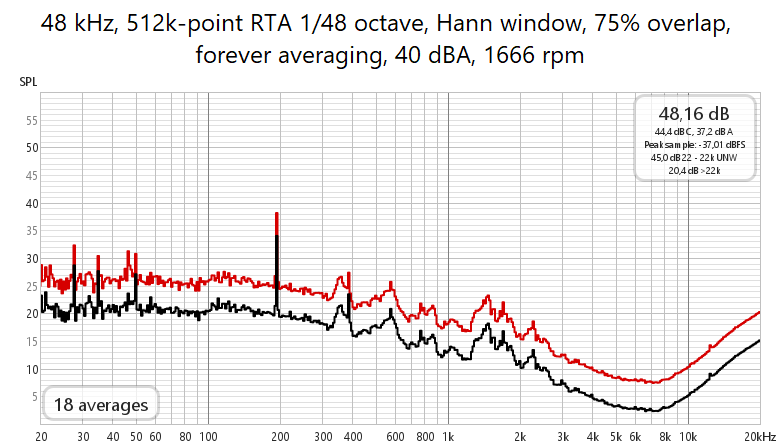

Finally, the images below show frequency spectrum graphs at fan speeds corresponding to noise levels of 33 dBA, 36 dBA, 40 dBA measured by the sound level meter, and in the last graph at maximum fan speed.
Arctic P12 Pro A-RGB, frequency spectrum at 33 dBA, 36 dBA, 40 dBA, and maximum fan speed
English translation and edit by Jozef Dudáš
⠀
