At the top of Asus’ new Radeon lineup is the TUF Gaming Radeon RX 9060 XT 16GB GDDR6 OC Edition. A large cooler with three fans, combined with a smaller, more power-efficient GPU, allows the card to deliver excellent cooling and low noise levels. It’s one of the quietest and best-performing RX 9060 XT models available. The only downside is its price, which reaches the level of entry-level GeForce RTX 5060 Ti 16GB cards.
Clocks, Temperatures & Fan Speeds – F1 24 (Q mode)

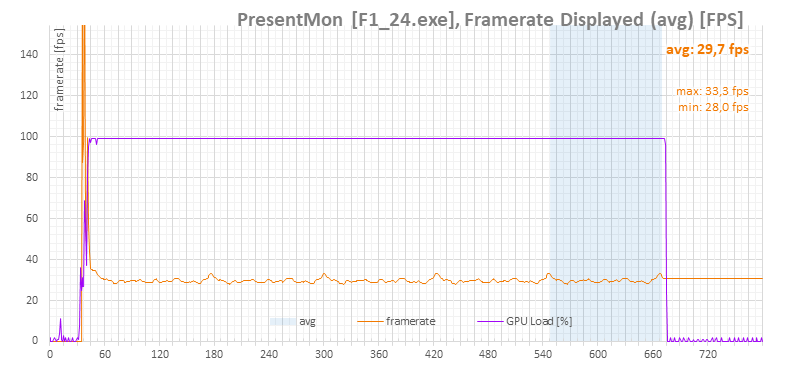

The next tests are from the F1 24 benchmark at 3840 × 2160 resolution using Ultra settings. This benchmark runs five laps on the Singapore map in wet conditions. Unlike other benchmarks, the load is continuous, with no relief between loops, so the card remains warm throughout.

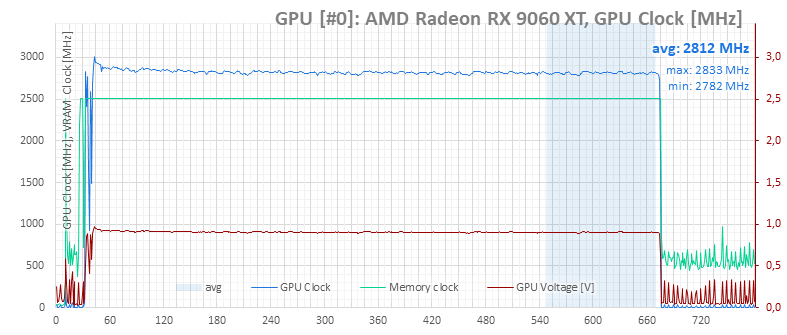

Clock speeds differ from those in Cyberpunk only by a few dozen MHz. During testing, the heated card maintained a clock speed between 2782 and 2833 MHz, with an average of 2812 MHz.
Power consumption monitoring again shows the card staying close to the 182W limit (light green line), with the rest of the system adding just under 100 W, bringing total system power consumption to 288,4 W.
The GPU’s average temperature reached 62 °C, memory heated up to 84 °C and the hotspot hit 91 °C.

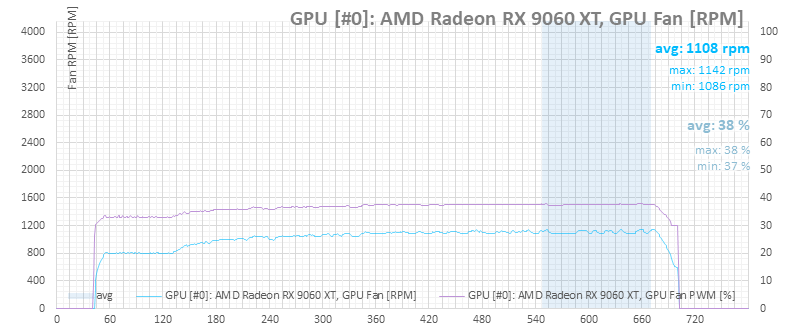

Fan speeds topped out at about 1140 RPM.
⠀
