The top model of the RTX 5060 Ti currently available from Asus is the TUF Gaming GeForce RTX 5060 Ti 16GB OC Edition. Although its power consumption isn’t particularly high, it comes with a large triple-slot cooler (30 cm) that easily manages the 180W load, keeping GPU and memory temperatures at 70 °C with fans running at just 1000 RPM and staying whisper-quiet. It also offers a dual BIOS and other premium features, but these come at a steep price.
Clocks, Temperatures & Fan Speeds – F1 24 (P mode)

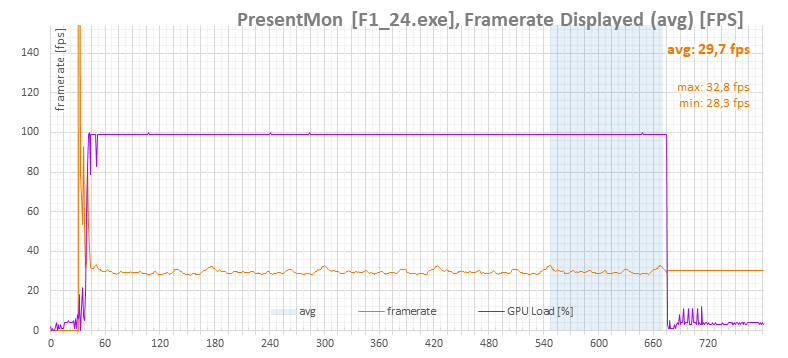

The next tests are from the F1 24 benchmark at 3840 × 2160 resolution with Ultra settings. This benchmark consists of five laps on the Singapore map in wet conditions. Unlike other benchmarks, it applies continuous load – there is no reduction in stress between loops, and the card remains heated throughout.

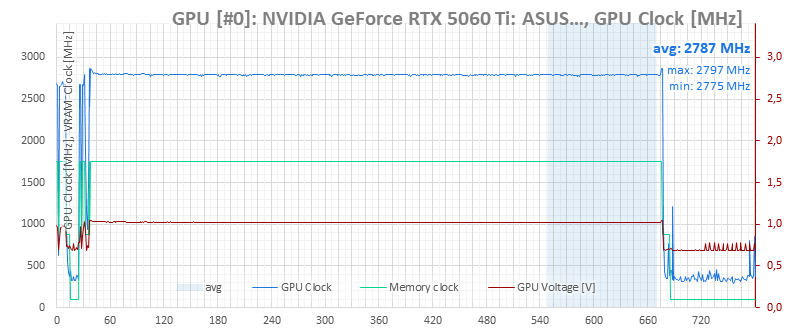

Clock behavior deviates only slightly from the Cyberpunk test, and clocks remain relatively stable.

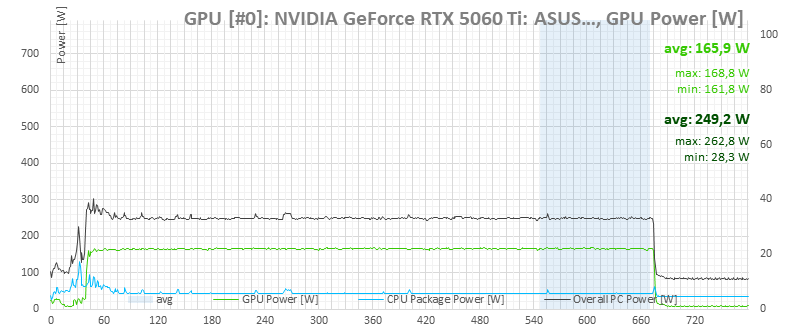

This can be seen in the card’s monitored power consumption (light green line). In this test, the chip is more heavily loaded than in Cyberpunk, still staying under the power limit.

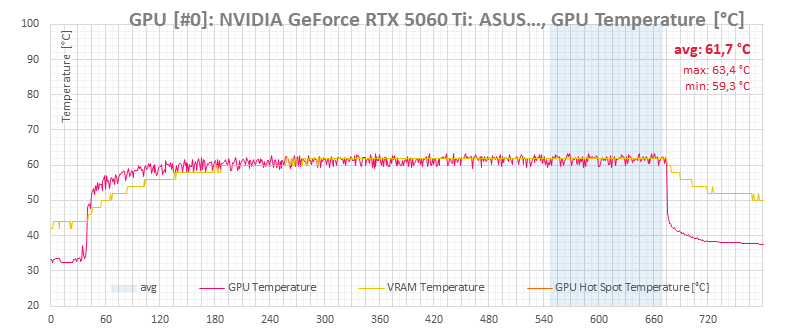

Temperatures of the GPU and memory remain excellent even under continuous load.

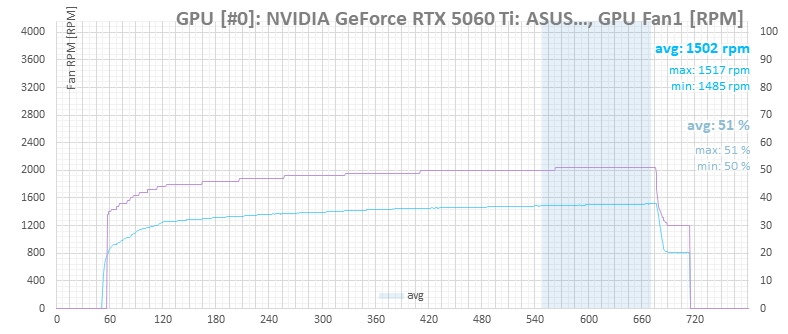

Fan speeds climb to around 1520 RPM. They create a decent airflow, and therefore are audible.

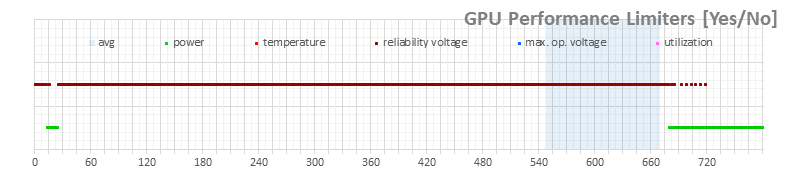

Monitoring indicates GPU Boost is limited by GPU voltage.
⠀
