Gelid Zodiac fan: ARGB LED and excellent price/performance ratio

Aside from whether the fan is named after the zodiac or a serial killer from California, we know all about Gelid’s latest fan. In the end, the inspiration may stem from the latter as well. After all, it has a backlight option and at the same time “kills”, performance-wise, the price-equivalent fans without it. And attractive models at that. But there is one thing that can erase all the good features.

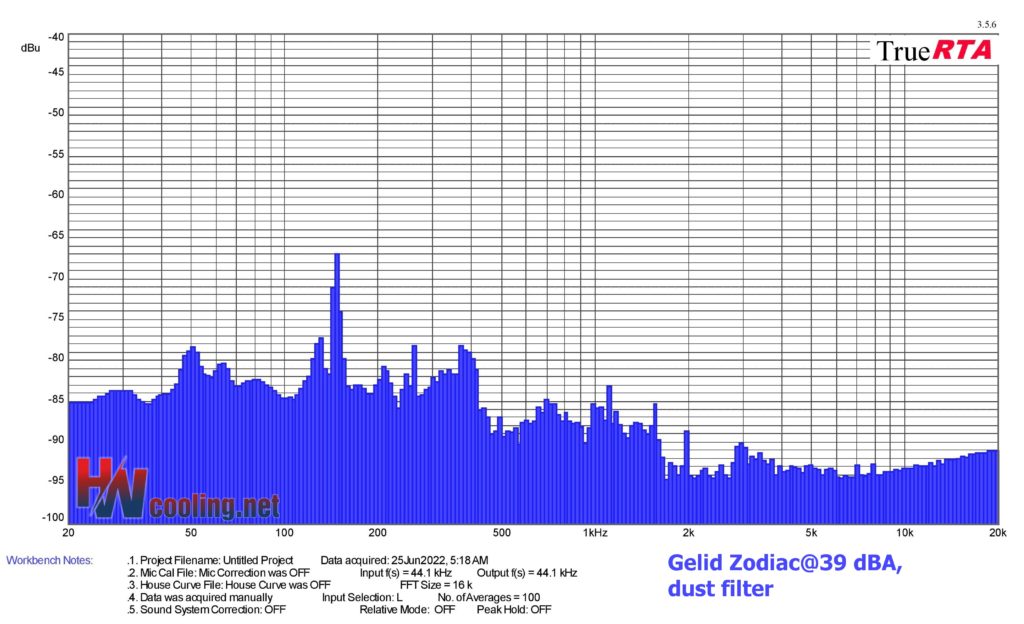

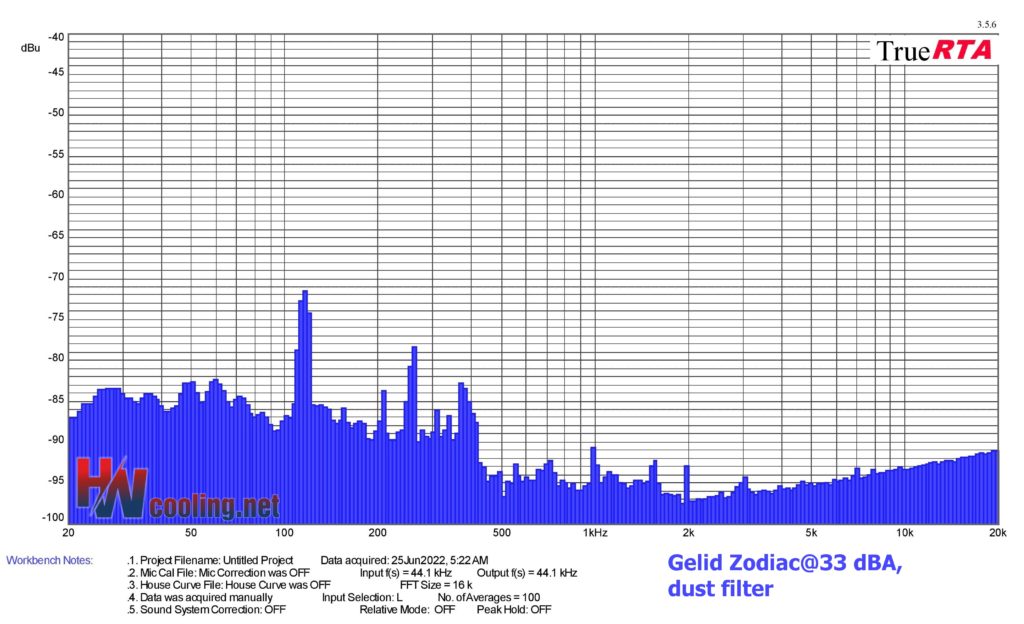

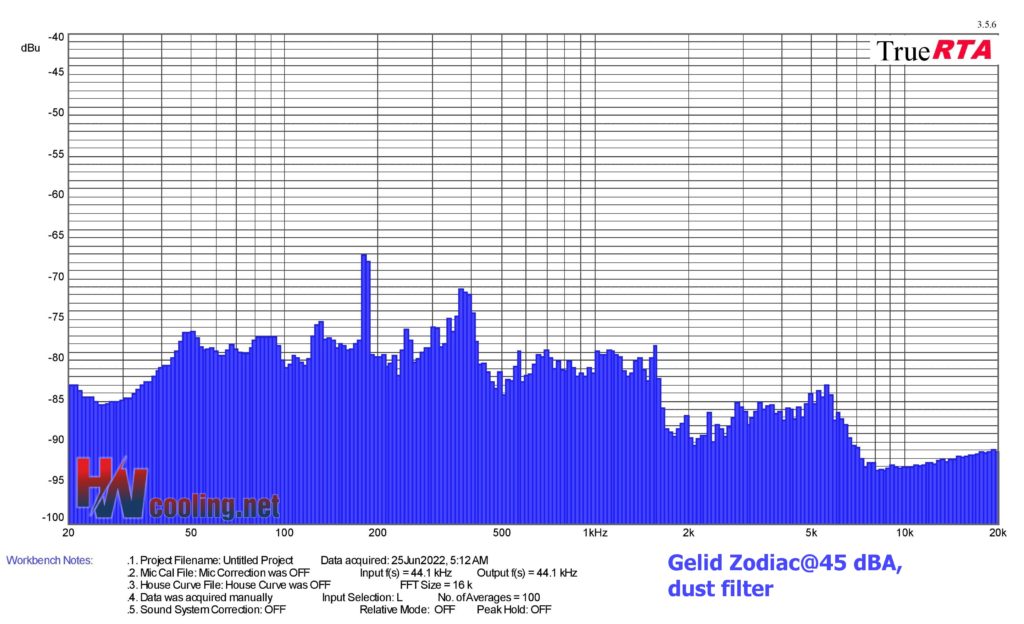

Results: Frequency response of sound with a dust filter

Measurements are performed in the TrueRTA application, which records sound in a range of 240 frequencies in the recorded range of 20–20,000 Hz. For the possibility of comparison across articles, we export the dominant frequency from the low (20–200 Hz), medium (201–2,000 Hz) and high (2,001–20,000 Hz) range to standard bar graphs.

However, for an even more detailed analysis of the sound expression, it is important to perceive the overall shape of the graph and the intensity of all frequencies/tones. If you don’t understand something in the graphs or tables below, you’ll find the answers to all your questions in this article. It explains how to read the measured data below correctly.

Noise levels in the tables below -85 dBu (but watch out for the negative sign, -70 dBu is louder than -80 dBu) can be ignored. They are in fact extremely weak and always far below the limit of human perception, and are often defined by the “noise” of the measurement string. Therefore, do not take even the dominant frequencies within the treble band that exceed 12 kHz too much into account.
