Arctic P14 Max: The best yet? Well, it depends…

Cooling, Extra tests, Fans | | Ľubomír Samák

The culmination of our trilogy of tests of Arctic’s 140mm fans is here. With the P14 Max, the designers have worked on improvements that change both the acoustic properties and performance of the fan. The main new feature, the hoop, allows for, among other things, a significant speed increase, due to which this fan can have a really high airflow. On the other hand, fans of extra low speeds will not be too pleased.

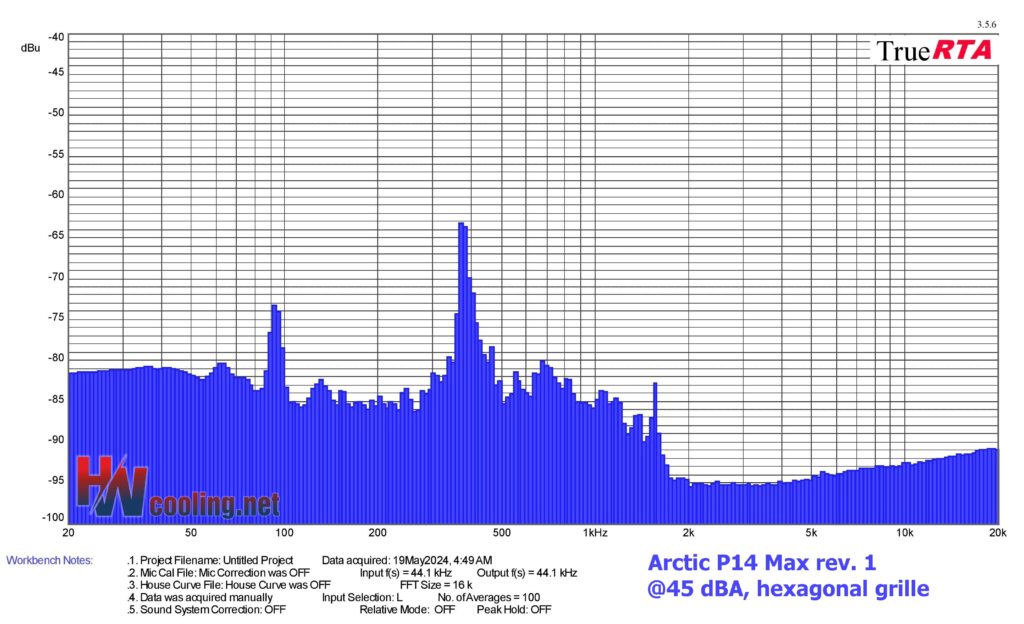

Results: Frequency response of sound with a hexagonal grille

Measurements are performed in the TrueRTA application, which records sound in a range of 240 frequencies in the recorded range of 20–20,000 Hz. For the possibility of comparison across articles, we export the dominant frequency from the low (20–200 Hz), medium (201–2,000 Hz) and high (2,001–20,000 Hz) range to standard bar graphs.

However, for an even more detailed analysis of the sound expression, it is important to perceive the overall shape of the graph and the intensity of all frequencies/tones. If you don’t understand something in the graphs or tables below, you’ll find the answers to all your questions in this article. It explains how to read the measured data below correctly.

The vast majority of fan sound operates in the 70–7000 Hz band. You can virtually ignore frequencies above 7000 Hz, they reflect electromagnetic noise from the measurement chain. This (electromagnetic noise) also extends to frequencies below 70 Hz, although there is still aerodynamic noise at these frequencies. These bands (below 70 Hz and above 7 kHz) could be safely “cut out”, but we do not. Just in case one of the fans does have an anomaly that needs to be controlled and visualized.


Wordpress Table Plugin



Wordpress Table Plugin



Wordpress Table Plugin

Why is there a missing value sometimes? There may be more reasons. Usually it is because the fan could not be adjusted to the target noise level. Some have a higher minimum speed (or the speed is low, but the motor is too noisy) or it is a slower fan that will not reach the higher decibels. But the results in the graphs are also missing if the impeller is brushing against the nylon filter mesh. In that case, we evaluate this combination as incompatible. And zero in the graphs is naturally also in situations where we measure 0.00. This is a common occurrence at extremely low speeds with obstructions or within vibration measurements.
