Before Arctic transitions to its new, 7-blade fan design, let’s take a closer look at the one that has characterized the company for many years. And even though the 5-blade fans of the “P” series had certain shortcomings, they demonstrated just how efficient even low-cost designs can be. In the case of high-speed models, such as the tested P12 Max, they also show how far cooling performance can be pushed.

Results: Frequency response of sound w/o obstacles

Measurements are conducted using TrueRTA, which captures audio data across 240 frequency bands within the 20–20,000 Hz range. To facilitate comparisons between articles, we extract and present the dominant frequency from each of three spectral bands: low (20–200 Hz), mid (201–2000 Hz), and high (2001–20,000 Hz) in standardized bar graphs.

However, for an even more detailed analysis of the sound expression, it is important to perceive the overall shape of the graph and the intensity of all frequencies/tones. If any aspects of the graphs or data tables are unclear, detailed interpretation guidelines are provided in this article.

Most fan-related acoustic activity occurs within the 70–7000 Hz range. Frequencies above 7000 Hz typically represent electromagnetic interference from the test environment, while the lowest bands below 70 Hz may also include such noise, albeit mixed with aerodynamic sound. Although we could exclude these frequency extremes, they are retained to detect and visualize potential anomalies.


Fan	Dominant sound freq. and noise level, no obstacle@33 dBA
	Low range		Mid range		High range
	Frequency [Hz]	Noise level [dBu]	Frequency [Hz]	Noise level [dBu]	Frequency [Hz]	Noise level [dBu]
Arctic P12 Max (Black) rev. 2	20,6	-58,2	369,7	-84,4	19330,5	-90,9
Arctic S12038-4K	130,7	-79,2	739,4	-78,8	18245,6	-91,2
Gigabyte Aorus EZ Chain Fan 120 Ice	123,4	-79,5	369,7	-79,1	19897,0	-91,0
BeQuiet! Pure Wings 3 (BL105)	130,7	-78,8	369,7	-79,9	19330,5	-90,9
Scythe Grand Tornado 120	23,1	-77,3	329,4	-78,0	19330,5	-90,9
DeepCool FT12	130,7	-75,1	369,7	-80,5	19897,0	-91,1
DeepCool FT14	92,4	-73,8	380,5	-83,5	19897,0	-90,7
Noctua NF-A14x25 G2 PWM	20,6	-74,0	380,5	-81,7	19330,5	-90,9
Asus TUF Gaming TR120 (Reverse)	50,4	-81,1	339,0	-78,1	19897,0	-90,8
BeQuiet! Pure Wings 3 (BL113)	50,4	-79,4	380,5	-81,1	19330,5	-90,7
Arctic P14 Max rev. 1	N/A	N/A	N/A	N/A	N/A	N/A
Arctic P14 PWM PST CO rev. 3	71,3	-70,4	380,5	-83,6	19330,5	-90,8
Arctic P14 PWM PST rev. 4	75,5	-69,5	369,7	-80,2	19330,5	-90,8
BeQuiet! Silent Wings 4 (BL117)	103,7	-74,7	391,7	-83,7	19330,5	-90,7
Endorfy Stratus 140 PWM	103,7	-71,5	391,7	-83,2	19897,0	-90,9
PCCooler CPS F5 R120 BK	127,0	-76,3	380,5	-81,0	19330,5	-90,8
Thermaltake Toughfan 14 Pro	20,3	-77,0	380,5	-82,3	18780,2	-90,9
Fractal Design Venturi HP-14 PWM	47,6	-78,1	380,5	-82,7	19330,5	-90,8
Seasonic MagFlow ARGB	50,4	-78,9	269,1	-79,5	19330,5	-90,9
Notua NF-A14 PWM	77,7	-70,8	254,0	-74,9	19897,0	-90,9
BeQuiet! Pure Wings 3 (BL108)	95,1	-78,7	391,7	-79,6	19330,5	-91,0
Endorfy Stratus 120 PWM	138,5	-71,7	380,5	-82,3	19330,5	-90,8
Phanteks PH-F120T30	116,5	-81,6	369,7	-83,0	19330,5	-90,8
BeQuiet! Light Wings White (BL101)	164,7	-78,8	369,7	-81,2	19897,0	-90,7
Scythe Kaze Flex II 120	130,7	-75,0	207,5	-82,1	19330,5	-90,6
Valkyrie X12	50,4	-81,2	479,5	-83,5	19330,5	-90,7
Fractal Design Silent R3 140 mm	97,9	-76,2	380,5	-85,6	19897,0	-90,6
Arctic P12 PWM PST A-RGB	89,8	-76,4	339,0	-86,5	19330,5	-90,7
Scythe Kaze Flex II 120 Slim	109,9	-79,4	391,7	-82,3	18780,2	-90,7
Seasonic MagFlow 1225 PWM	N/A	N/A	N/A	N/A	N/A	N/A
Arctic P12 PWM PST rev. 1	80,0	-72,4	201,6	-77,5	19897,0	-90,7
Cooler Master Mobius 120 OC	41,8	-76,0	1107,9	-78,2	19330,5	-90,7
Corsair AF120 RGB Elite	58,2	-80,9	269,1	-80,1	19330,5	-91,0
Enermax SquA RGB White	50,4	-80,6	369,7	-81,9	19330,5	-90,8
Endorfy Fluctus 140 PWM	20,6	-75,1	391,7	-83,3	19330,5	-90,9
Endorfy Fluctus 140 PWM ARGB	20,6	-74,7	403,2	-81,6	18780,2	-90,9
Arctic P12 Slim PWM PST	100,8	-83,4	369,7	-76,8	19330,5	-90,9
BeQuiet! Silent Wings Pro 4 (BL099)	109,9	-74,9	391,7	-80,0	18780,2	-90,9
Fractal Design Prisma AL-14 PWM	41,8	-80,3	1208,2	-77,5	19330,5	-90,8
Gigabyte Aorus 140 ARGB	92,4	-77,3	380,5	-80,3	19330,5	-91,0
BeQuiet! Light Wings (BL075)	138,5	-73,3	391,7	-80,5	19330,5	-90,8
Fractal Design Aspect 14 RGB PWM	50,4	-68,1	391,7	-78,5	18780,2	-90,8
DeepCool FK120	138,5	-77,5	246,8	-68,6	18780,2	-90,9
Asus TUF Gaming TF120	130,7	-82,8	369,7	-80,9	19897,0	-90,8
BeQuiet! Light Wings (BL072)	23,1	-71,7	380,5	-72,9	18780,4	-90,8
DeepCool FC120	195,8	-77,4	201,6	-78,5	19330,5	-90,7
Nidec Servo Gentle Typhoon D1225C (2150/12)	127,0	-78,2	339,0	-86,0	19330,5	-90,7
BeQuiet! Shadow Wings 2 (BL085)	151,0	-79,8	369,7	-79,0	19897,0	-90,8
Noctua NF-A12x25 PWM	50,4	-80,2	380,5	-80,6	19897,0	-90,8
Corsair AF120 Elite (black)	130,7	-76,9	369,7	-81,6	19330,5	-90,7
Cooler Master MasterFan SF120M	50,4	-80,9	1566,8	-87,5	4305,4	-89,2
Akasa Alucia SC12	50,4	-78,8	1566,8	-91,5	19330,5	-90,7
BeQuiet! Silent Wings Pro 4 (BL098)	50,4	-81,2	339,0	-80,8	2712,2	-87,1
Thermalright X-Silent 120	50,4	-79,0	369,7	-88,6	4974,2	87,1
Fractal Design Aspect 12 RGB PWM	20,7	-76,1	380,5	-80,5	19897,0	-90,9
BeQuiet! Silent Wings 3 (BL066)	97,9	-75,2	1107,9	-79,1	19897,0	-90,8
Gelid Zodiac	119,9	-71,1	380,5	-80,9	19897,0	-91,0
Fractal Design Dynamic X2 GP-12 PWM	47,6	-72,8	1015,4	-79,9	19897,0	-90,7
BeQuiet! Pure Wings 2 (BL039)	47,6	-78,3	958,9	-79,6	18780,2	-91,0
Gigabyte Aorus 120 ARGB	130,7	-82,8	369,7	-80,7	19330,5	-90,9
Arctic BioniX P120 A-RGB	127,0	-73,2	219,8	-70,4	19897,0	-90,9
Akasa OTTO SF12	N/A	N/A	N/A	N/A	N/A	N/A
Cooler Master SickleFlow 120 ARGB	59,9	-82,7	1076,3	-83,1	19330,5	-90,7
Alphacool SL-15 PWM	190,3	-79,1	380,5	-78,8	18245,6	-90,9
Arctic BioniX F120	123,4	-76,5	246,8	-80,0	19330,5	-90,9
SilverStone SST-AP123	100,8	-81,2	415,0	-78,6	19897,0	-90,8
Noctua NF-P12 redux-1700 PWM	103,7	-76,9	329,4	-73,2	19330,5	-90,9
SilentiumPC Fluctus 120 PWM	130,7	-76,5	369,7	-80,9	19897,0	-91,0
MSI MEG Silent Gale P12	50,4	-81,7	369,7	-81,0	19897,0	-90,8
Asus ROG Strix XF120	50,4	-80,2	329,4	-76,2	19330,5	-90,8
Akasa Vegas X7	123,4	-77,0	369,7	-83,3	19330,5	-90,7
Reeven Coldwing 12	38,9	-79,7	1317,5	-84,0	19330,5	-90,7
Reeven Kiran	138,5	-80,6	369,7	-83,3	19330,5	-90,8
SilentiumPC Sigma Pro 120 PWM	N/A	N/A	N/A	N/A	N/A	N/A
SilentiumPC Sigma Pro Corona RGB 120	92,4	-83,0	369,7	-78,0	18780,2	-90,8
SilverStone SST-AP121	47,6	-77,5	261,4	-86,4	19330,5	-91,0
SilverStone SST-FQ121	31,3	-87,5	1208,2	-79,9	19330,5	-90,9
Xigmatek XLF-F1256	41,8	-69,7	213,6	-77,3	19330,5	-91,0

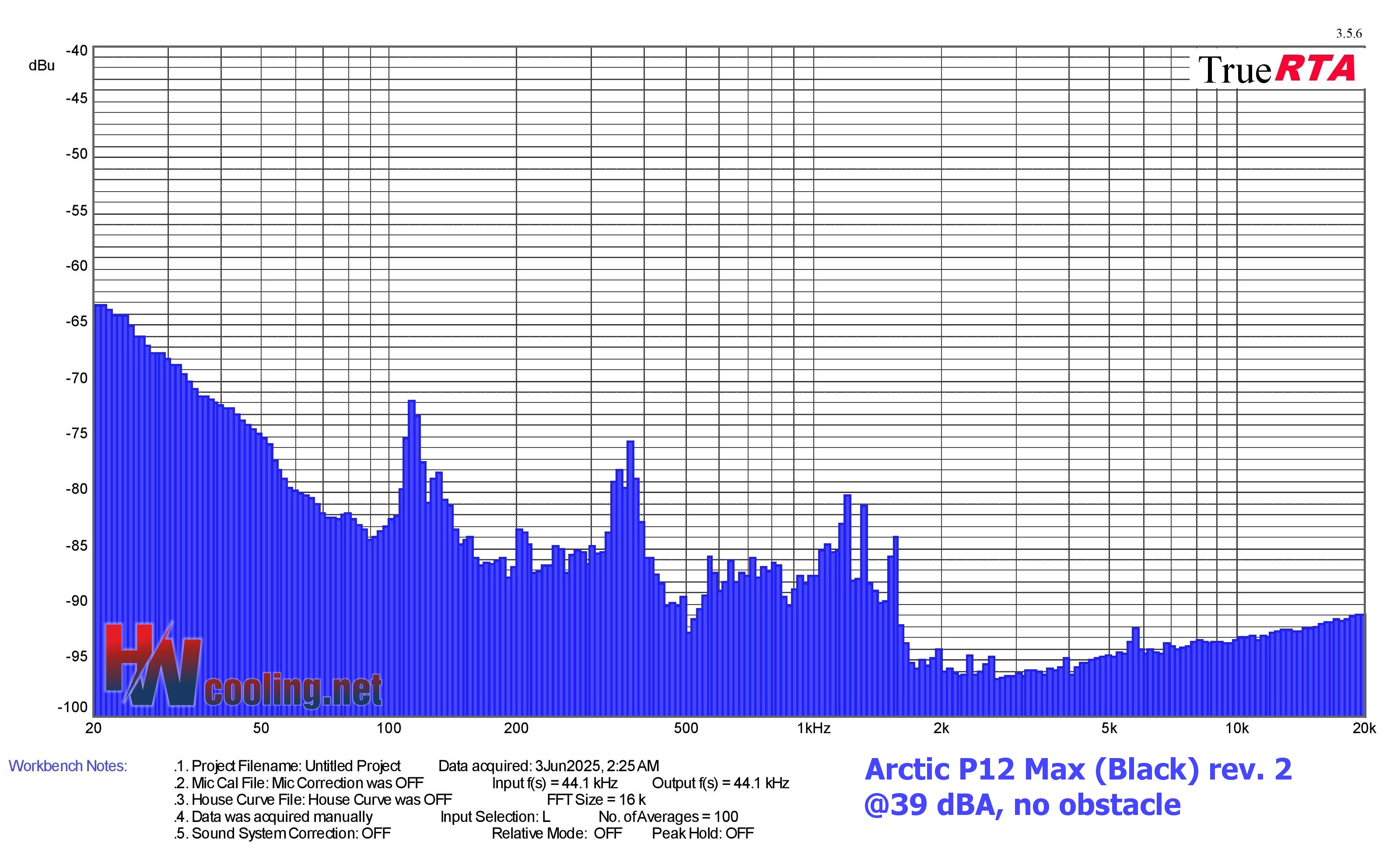

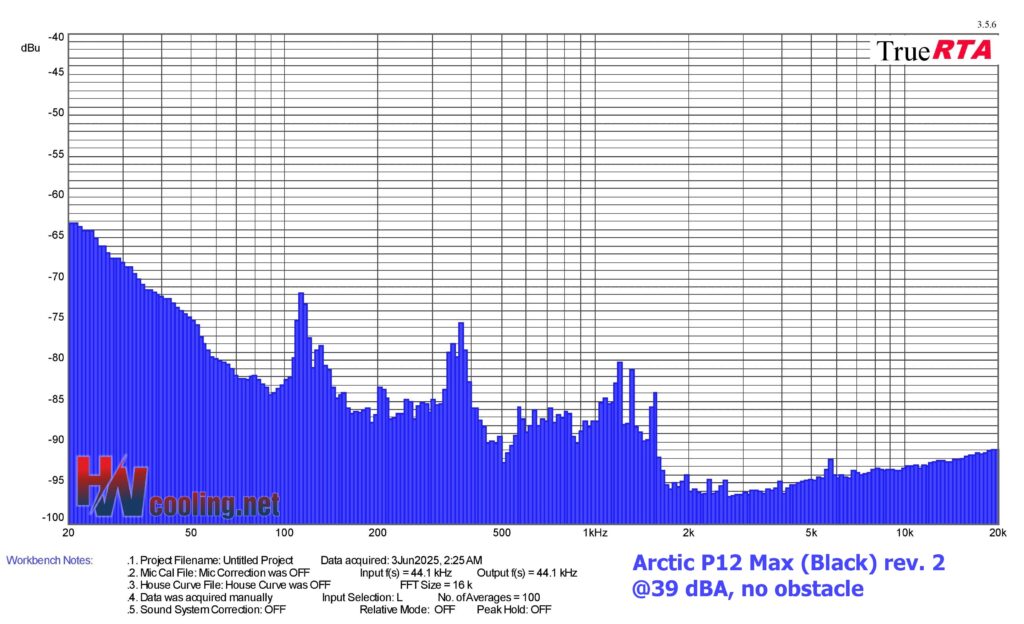

Fan	Dominant sound freq. and noise level, no obstacle@39 dBA
	Low range		Mid range		High range
	Frequency [Hz]	Noise level [dBu]	Frequency [Hz]	Noise level [dBu]	Frequency [Hz]	Noise level [dBu]
Arctic P12 Max (Black)	20,6	-63,2	369,7	-75,4	19897,0	-90,9
Arctic S12038-4K	160,0	-67,9	739,4	-72,9	2957,7	-85,3
Gigabyte Aorus EZ Chain Fan 120 Ice	127,0	-67,3	369,7	-73,2	19897,0	-91,5
BeQuiet! Pure Wings 3 (BL105)	130,7	-76,4	369,7	-74,2	19897,0	-91,0
Scythe Grand Tornado 120	320,0	-76,6	359,2	-67,6	19330,5	-90,9
DeepCool FT12	179,6	-70,0	369,7	-73,8	19897,0	-90,9
DeepCool FT14	123,4	-66,1	380,5	-74,0	18780,2	-90,9
Noctua NF-A14x25 G2 PWM	23,1	-67,0	380,5	-73,0	19897,0	-90,9
Asus TUF Gaming TR120 (Reverse)	123,4	-78,2	320,0	-74,1	19897,0	-90,9
BeQuiet! Pure Wings 3 (BL113)	50,4	-77,3	380,5	-74,2	19330,5	-90,6
Arctic P14 Max rev. 1	103,7	-68,3	380,5	-75,8	19897,0	-90,9
Arctic P14 PWM PST CO rev. 3	92,4	-65,0	380,5	-74,0	19330,5	-90,8
Arctic P14 PWM PST rev. 4	97,9	-65,8	349,0	-68,5	19897,0	-90,9
BeQuiet! Silent Wings 4 (BL117)	142,5	-66,5	391,7	-74,9	19330,5	-90,7
Endorfy Stratus 140 PWM	151,0	-64,2	403,2	-75,2	19897,0	-91,0
PCCooler CPS F5 R120 BK	20,6	-72,2	369,7	-70,8	19330,5	-90,8
Thermaltake Toughfan 14 Pro	146,7	-69,0	380,5	-75,4	19897,0	-90,8
Fractal Design Venturi HP-14 PWM	109,9	-74,2	380,5	-72,3	19330,5	-90,8
Seasonic MagFlow ARGB	20,6	-74,2	380,5	-73,9	19897,0	-90,9
Noctua NF-A14 PWM	103,7	-64,3	391,7	-72,9	19330,5	-90,9
BeQuiet! Pure Wings 3 (BL108)	123,4	-74,5	380,5	-73,8	19330,5	-90,8
Endorfy Stratus 120 PWM	179,6	-66,9	380,5	-75,8	19330,5	-90,8
Phanteks PH-F120T30	130,7	-76,0	369,7	-77,3	18780,2	-90,7
BeQuiet! Light Wings White (BL101)	226,3	-71,5	380,5	-78,7	19330,5	-90,6
Scythe Kaze Flex II 120	146,7	-78,4	380,5	-73,0	19330,5	-90,6
Valkyrie X12	20,6	-74,7	1045,7	-76,1	19897,0	-90,7
Fractal Design Silent R3 140 mm	130,7	-67,8	380,5	-75,4	2031,9	-87,0
Arctic P12 PWM PST A-RGB	116,5	-72,8	339,0	-80,0	19330,5	-90,6
Scythe Kaze Flex II 120 Slim	146,7	-71,2	329,4	-67,7	19897,0	-90,7
Seasonic MagFlow 1225 PWM	138,5	-74,5	1015,9	-69,6	19330,5	-90,6
Arctic P12 PWM PST rev. 1	113,1	-65,4	369,7	-73,2	18780,2	-90,8
Cooler Master Mobius 120 OC	130,7	-72,0	1107,9	-71,7	19897,0	-90,8
Corsair AF120 RGB Elite	169,5	-73,5	339,0	-69,7	19330,5	-90,7
Enermax SquA RGB White	146,7	-69,4	369,7	-74,6	18245,6	-91,0
Endorfy Fluctus 140 PWM	151,0	-66,2	380,5	-75,9	19330,5	-91,0
Endorfy Fluctus 140 PWM ARGB	138,5	-72,6	391,7	-72,7	19330,5	-90,8
Arctic P12 Slim PWM PST	127,0	-75,6	380,5	-72,0	19330,5	-90,9
BeQuiet! Silent Wings Pro 4 (BL099)	138,5	-69,5	380,5	-75,1	2416,3	-86,2
Fractal Design Prisma AL-14 PWM	109,9	-75,3	391,7	-73,9	5583,4	-90,0
Gigabyte Aorus 140 ARGB	116,5	-71,7	391,7	-73,0	3225,4	-90,9
BeQuiet! Light Wings (BL075)	184,9	-69,8	391,7	-73,5	19330,5	-90,8
Fractal Design Aspect 14 RGB PWM	92,4	-76,0	391,7	-70,8	17726,2	-91,0
DeepCool FK120	38,9	-78,8	246,8	-67,0	19330,5	-90,9
Asus TUF Gaming TF120	127,0	-76,0	380,5	-74,6	19330,5	-90,8
BeQuiet! Light Wings (BL072)	138,5	-80,1	369,7	-78,4	18780,4	-90,9
DeepCool FC120	195,8	-71,5	201,6	-68,0	3620,4	-89,7
Nidec Servo Gentle Typhoon D1225C (2150/12)	190,3	-69,7	380,5	-73,8	18780,2	-91,0
BeQuiet! Shadow Wings 2 (BL085)	N/A	N/A	N/A	N/A	N/A	N/A
Noctua NF-A12x25 PWM	23,1	-73,9	369,7	-74,1	19897,0	-90,7
Corsair AF120 Elite (black)	164,7	-79,2	339,0	-72,8	19897,0	-90,7
Cooler Master MasterFan SF120M	146,7	-78,8	380,5	-77,9	2635,0	-83,9
Akasa Alucia SC12	151,0	-80,6	226,3	-73,4	19897,0	-90,7
BeQuiet! Silent Wings Pro 4 (BL098)	20,3	-76,0	339,0	-73,9	2791,7	-83,3
Thermalright X-Silent 120	119,9	-74,0	369,7	-75,0	10540,1	-88,4
Fractal Design Aspect 12 RGB PWM	20,7	-70,4	380,5	-72,4	18780,2	-90,8
BeQuiet! Silent Wings 3 (BL066)	130,7	-70,1	369,7	-75,2	18780,2	-90,9
Gelid Zodiac	146,7	-66,0	369,7	-73,4	19330,5	-90,9
Fractal Design Dynamic X2 GP-12 PWM	113,1	-78,5	329,4	-74,6	18780,2	-90,9
BeQuiet! Pure Wings 2 (BL039)	130,7	-76,1	369,7	-75,3	19330,5	-90,7
Gigabyte Aorus 120 ARGB	127,0	-63,9	380,5	-74,2	19330,5	-90,6
Arctic BioniX P120 A-RGB	50,4	-77,9	439,7	-72,4	18780,2	-91,1
Akasa OTTO SF12	155,4	-67,1	380,5	-75,2	4431,5	-87,2
Cooler Master SickleFlow 120 ARGB	109,9	-72,8	1076,3	-72,4	18245,6	-90,9
Alphacool SL-15 PWM	184,9	-73,4	380,5	-73,1	19897,0	-90,8
Arctic BioniX F120	151,0	-69,3	369,7	-75,3	18780,2	-91,0
SilverStone SST-AP123	164,7	-75,1	369,7	-74,7	19330,5	-90,9
Noctua NF-P12 redux-1700 PWM	146,7	-68,0	329,4	-66,7	18245,6	-91,1
SilentiumPC Fluctus 120 PWM	190,3	-69,2	380,5	-68,8	19897,0	-90,9
MSI MEG Silent Gale P12	23,1	-73,5	380,5	-73,3	18780,2	-90,9
Asus ROG Strix XF120	130,7	-70,9	369,7	-75,2	19330,5	-91,0
Akasa Vegas X7	127,0	-77,8	369,7	-76,1	19330,5	-90,9
Reeven Coldwing 12	160,0	-74,0	369,7	-76,8	19330,5	-90,9
Reeven Kiran	184,9	-75,2	369,7	-75,2	17726,2	-89,8
SilentiumPC Sigma Pro 120 PWM	97,9	-81,7	369,7	-78,1	2635,0	-86,2
SilentiumPC Sigma Pro Corona RGB 120	20,3	-67,8	380,5	-77,3	2487,1	-85,6
SilverStone SST-AP121	103,7	-76,2	339,0	-73,4	2031,9	-86,5
SilverStone SST-FQ121	138,5	-75,2	1208,2	-71,1	18780,2	-90,9
Xigmatek XLF-F1256	190,3	-77,1	761,1	-75,5	19897,0	-91,1

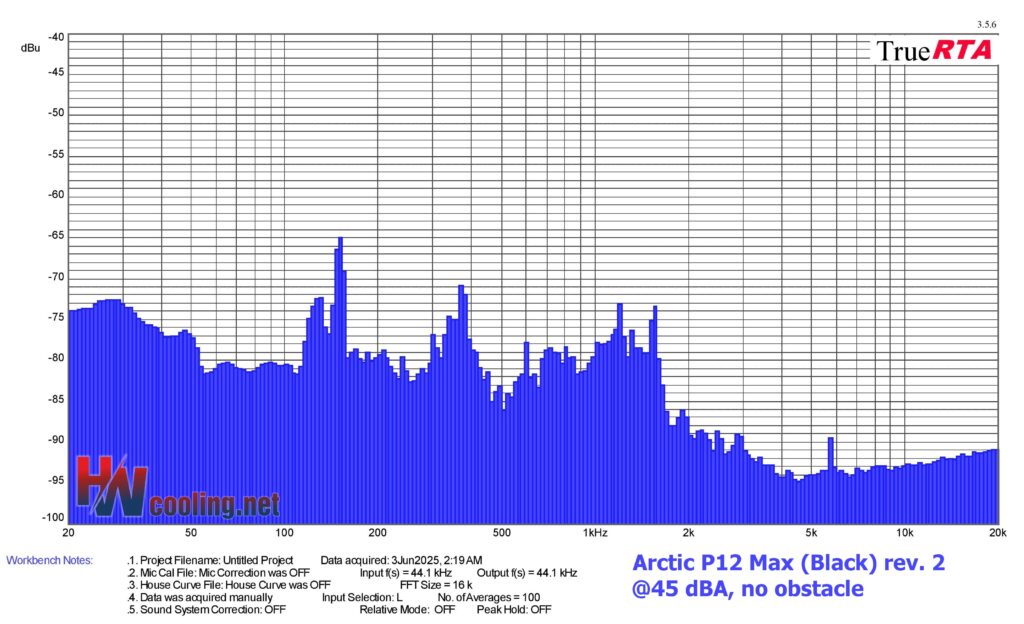

Fan	Dominant sound freq. and noise level, no obstacle@45 dBA
	Low range		Mid range		High range
	Frequency [Hz]	Noise level [dBu]	Frequency [Hz]	Noise level [dBu]	Frequency [Hz]	Noise level [dBu]
Arctic P12 Max (Black) rev. 2	151,0	-65,0	369,7	-70,9	5747,0	-89,4
Arctic S12038-4K	127,0	-59,3	201,6	-61,8	2957,7	-84,8
Gigabyte Aorus EZ Chain Fan 120 Ice	164,7	-67,5	369,7	-67,7	2487,1	-87,9
BeQuiet! Pure Wings 3 (BL105)	130,7	-70,4	369,7	-69,6	2487,1	-89,3
Scythe Grand Tornado 120	23,1	-68,6	369,7	-67,3	18780,2	-91,1
DeepCool FT12	130,7	-65,5	369,7	-69,7	19330,5	-90,9
DeepCool FT14	20,6	-61,2	391,7	-67,0	18245,6	-91,0
Noctua NF-A14x25 G2 PWM	20,6	-60,6	380,5	-70,3	19897,0	-91,0
Asus TUF Gaming TR120 (Reverse)	123,4	-70,7	369,7	-59,6	19330,5	-90,7
BeQuiet! Pure Wings 3 (BL113)	213,6	-72,3	391,7	-69,4	2487,1	-87,6
Arctic P14 Max rev. 1	123,4	-60,1	391,7	-70,4	2487,1	-90,5
Arctic P14 PWM PST CO rev. 3	119,9	-59,8	380,5	-67,6	19330,5	-90,8
Arctic P14 PWM PST rev. 4	116,5	-59,3	380,5	-69,1	18780,2	-90,8
BeQuiet! Silent Wings 4 (BL117)	174,5	-63,0	403,2	-71,2	19330,5	-90,7
Endorfy Stratus 140 PWM	179,6	-59,9	391,7	-69,1	2560,0	-87,8
PCCooler CPS F5 R120 BK	23,1	-66,3	207,5	-74,0	2487,1	-90,7
Thermaltake Toughfan 14 Pro	184,9	-64,9	391,7	-70,1	19330,5	-90,8
Fractal Design Venturi HP-14 PWM	130,7	-66,9	380,5	-68,0	7240,8	-90,8
Seasonic MagFlow ARGB	25,6	-67,8	239,7	-63,9	2347,5	-90,1
Noctua NF-A14 PWM	130,7	-59,7	391,7	-65,9	19897,0	-91,0
BeQuiet! Pure Wings 3 (BL108)	N/A	N/A	N/A	N/A	N/A	N/A
Endorfy Stratus 120 PWM	23,1	-73,7	219,8	-61,9	2487,1	-90,5
Phanteks PH-F120T30	190,3	-69,0	380,5	-71,5	2957,7	-90,8
BeQuiet! Light Wings White (BL101)	123,4	-68,0	285,1	-64,2	2215,8	-89,3
Scythe Kaze Flex II 120	130,7	-69,5	380,5	-69,3	19330,5	-90,8
Valkyrie X12	23,1	-69,6	879,3	-68,7	19330,5	-90,7
Fractal Design Silent R3 140 mm	N/A	N/A	N/A	N/A	N/A	N/A
Arctic P12 PWM PST A-RGB	146,7	-64,2	1566,8	-74,5	19330,5	-90,7
Scythe Kaze Flex II 120 Slim	184,9	-65,9	391,7	-69,7	2031,9	-90,8
Seasonic MagFlow 1225 PWM	195,8	-63,8	958,9	-67,0	18780,2	-90,8
Arctic P12 PWM PST rev. 1	130,7	-57,9	415,0	-59,1	19897,0	-90,6
Cooler Master Mobius 120 OC	20,6	-68,1	369,7	-71,3	3417,2	-89,3
Corsair AF120 RGB Elite	134,5	-67,3	269,1	-62,2	19330,5	-90,9
Enermax SquA RGB White	184,9	-67,4	369,7	-70,4	19897,0	-90,9
Endorfy Fluctus 140 PWM	20,6	-60,9	195,8	-64,3	2487,1	-85,5
Endorfy Fluctus 140 PWM ARGB	20,6	-62,0	391,7	-68,9	19330,5	-90,8
Arctic P12 Slim PWM PST	155,4	-67,8	380,5	-63,5	2031,9	-89,0
BeQuiet! Silent Wings Pro 4 (BL099)	179,6	-65,5	380,5	-69,3	2487,1	-83,2
Fractal Design Prisma AL-14 PWM	138,5	-68,1	391,7	-65,6	5583,4	-87,2
Gigabyte Aorus 140 ARGB	151,0	-68,4	391,7	-66,5	2280,7	-89,8
BeQuiet! Light Wings (BL075)	130,7	-78,8	232,9	-62,1	19330,5	-90,9
Fractal Design Aspect 14 RGB PWM	134,5	-70,9	391,7	-65,8	17726,2	-91,1
DeepCool FK120	23,1	-68,0	604,1	-65,8	19897,0	-91,0
Asus TUF Gaming TF120	23,1	-66,2	380,5	-70,6	2957,7	-88,1
BeQuiet! Light Wings (BL072)	N/A	N/A	N/A	N/A	N/A	N/A
DeepCool FC120	195,8	-71,5	380,5	-72,8	3417,2	-85,7
Nidec Servo Gentle Typhoon D1225C (2150/12)	25,6	-68,0	239,7	-62,3	2280,7	-84,1
BeQuiet! Shadow Wings 2 (BL085)	N/A	N/A	N/A	N/A	N/A	N/A
Noctua NF-A12x25 PWM	28,3	-72,5	269,1	-69,8	2215,8	-89,6
Corsair AF120 Elite (black)	130,7	-78,5	369,7	-70,9	19330,5	-90,9
Cooler Master MasterFan SF120M	184,9	-69,7	369,7	-67,9	4305,4	-73,8
Akasa Alucia SC12	130,7	-70,3	380,5	-68,6	2031,9	-90,4
BeQuiet! Silent Wings Pro 4 (BL098)	47,6	-75,5	339,0	-60,5	2791,7	-83,3
Thermalright X-Silent 120	82,3	-74,9	369,7	-91,1	18780,2	-91,1
Fractal Design Aspect 12 RGB PWM	130,7	-69,5	285,1	-67,2	19330,5	-90,8
BeQuiet! Silent Wings 3 (BL066)	164,7	-64,2	339,0	-69,1	18780,2	-90,8
Gelid Zodiac	184,9	-61,8	380,5	-68,7	18780,2	-90,8
Fractal Design Dynamic X2 GP-12 PWM	146,7	-72,2	391,7	-71,5	2280,7	-83,1
BeQuiet! Pure Wings 2 (BL046)	130,7	-71,3	369,7	-69,3	19330,5	-90,6
Gigabyte Aorus 120 ARGB	160,0	-61,9	369,7	-70,4	2487,1	-88,3
Arctic BioniX P120 A-RGB	151,0	-67,6	369,7	-72,0	2873,5	-90,6
Akasa OTTO SF12	190,3	-66,7	380,5	-67,7	4695,1	-86,3
Cooler Master SickleFlow 120 ARGB	138,5	-66,7	1076,3	-67,1	3835,7	-89,2
Alphacool SL-15 PWM	151	-71,5	232,9	-66,5	2280,7	-89,6
Arctic BioniX F120	195,8	-68	201,6	-62,2	19330,5	-90,7
SilverStone SST-AP123	130,7	-70,9	369,7	-67,7	19897	-90,9
Noctua NF-P12 redux-1700 PWM	184,9	-62,2	369,7	-67,0	19897	-91,1
SilentiumPC Fluctus 120 PWM	25,6	-69,6	239,7	-62,0	2957,7	-90,0
MSI MEG Silent Gale P12	28,3	-73,5	380,5	-71,0	2487,1	-85,9
Asus ROG Strix XF120	23,1	-62,9	369,7	-71,7	2347,5	-89,1
Akasa Vegas X7	N/A	N/A	N/A	N/A	N/A	N/A
Reeven Coldwing 12	195,8	-68,3	380,5	-71,3	2031,9	-90
Reeven Kiran	130,7	-73,1	219,8	-70,2	17726,2	-89,4
SilentiumPC Sigma Pro 120 PWM	138,5	-70,0	1522,2	-71,9	2560	-82,9
SilentiumPC Sigma Pro Corona RGB 120	190,3	-70,5	369,7	-66,5	2416,3	-82,4
SilverStone SST-AP121	130,7	-66,8	439,7	-66,1	2347,5	-90,9
SilverStone SST-FQ121	127	-71,2	369,7	-66,5	2031,8	-81,4
Xigmatek XLF-F1256	130,7	-71,5	239,7	-60,9	18780,2	-91,1

Why is a value sometimes missing for a fan? There can be several reasons. Most commonly, it’s because the fan couldn’t be regulated to the target noise level. Some fans have higher minimum RPM (or they spin slowly but have an excessively noisy motor), or they are simply slower models that can’t reach higher decibel thresholds. Results are also omitted from graphs if the rotor scrapes against the mesh of a nylon filter. In such cases, we classify the combination as incompatible. And of course, a zero in the graphs naturally appears in situations where we record an actual 0.00. This often occurs at extremely low speeds when obstacles are present or during vibration measurements.

Primarily quieter operation: Arctic P12 Pro (A-RGB) LN fans

Cooling, Fans, News | 22. 5. 202622. 5. 2026 | Ľubomír Samák

Arctic has expanded its fan portfolio with new P12 Pro (A-RGB) models carrying the “LN” suffix in their designation. This stands for “low-noise” and in practice mainly means that maximum speeds are capped lower than on the original (P12 Pro/A-RGB) fans. However, the aerodynamic design itself remains unchanged, with the primary difference being the motor. At the same time, these are still affordable fans. Read more “Primarily quieter operation: Arctic P12 Pro (A-RGB) LN fans” »

The end, or just the beginning? 100 fans in HWCooling tests

Cooling, Extra tests, Fans | 12. 2. 202620. 2. 2026 | Ľubomír Samák

Our database now includes one hundred fans—75 in the 120 mm format and 25 models with a physical size of 140 mm. In this article, we have compiled all data into unified charts. What was once separated for clarity is now brought together again, and the commentary will also include a… look ahead regarding fan testing. But we can already reveal that there is still a lot more to come. Read more “The end, or just the beginning? 100 fans in HWCooling tests” »

Arctic P12 Pro Reverse A-RGB: Looking good, working well!

Cooling, Extra tests, Fans | 9. 2. 202613. 2. 2026 | Ľubomír Samák

The impeller is oriented so that, in the installed position, nothing visually obstructs the view. This refers to the stator struts, which can otherwise “spoil” the appearance. But this is not just about looks—it is about combining them with the efficient geometry of the proven five-blade design with a stabilizing ring (familiar from the P12 A-RGB). It is not exactly the same design, though, if only because what used to be behind the impeller is now in front of it. Read more “Arctic P12 Pro Reverse A-RGB: Looking good, working well!” »

Comments (6) Add comment

M says:

4. 6. 2025 at 5:02

Overall quite similar behaviour (at same noise levels) vs the ARGB variant. Not too much compromise at lower speeds unlike the P14 Max, which is good to see.

One thing I just noticed is the different stator ribs compared to other fans in the Arctic P family. Now they’re thicker and straight (like many other fans) rather than thin and curved. This perhaps sacrifices a tiny amount of airflow but is needed for supporting the higher RPM and rotor weight.

Reply
1. Ľubomír Samák says:

  4. 6. 2025 at 12:24

  Good point. The P12 Max fan is about 20 grams heavier than the P12 A-RGB. And it doesn’t even have any LEDs, which also add some weight. While we don’t know the exact difference in material density – since the P12 Max uses PBT for its rotor and the P12 A-RGB likely uses polycarbonate – there’s definitely some variation happening at that level too. 🙂

  Reply
  1. Bufo says:

    15. 7. 2025 at 9:03

    it seems the spam filter worked better with the older version… the Indonesian university bot seems pretty persistent (that’s the 3rd time I’ve noticed it) 😉
    … I’m attaching the response to this thread so you don’t have a problem deleting it

    Reply
    1. Bufo says:

      15. 7. 2025 at 18:25

      so now, I’m really curious if there will be any answer 😀
      …now you chose a different approach instead of deleting… we’ll see 😉

      Reply
Universitas Telkom says:

15. 7. 2025 at 0:43

Are there more information regarding about this topic for us to research for? Thank you, Regard Telkom University

Reply
1. Ľubomír Samák says:

  15. 7. 2025 at 17:14

  Is there any other information you’re interested in? Let us know, and we’ll do our best to provide whatever is within our capabilities. 🙂

  Reply

Arctic P12 Max: Five blades pushed to the limit

Results: Frequency response of sound w/o obstacles

Contents

Primarily quieter operation: Arctic P12 Pro (A-RGB) LN fans

Contents

The end, or just the beginning? 100 fans in HWCooling tests

Contents

Arctic P12 Pro Reverse A-RGB: Looking good, working well!

Contents

Comments (6) Add comment

Leave a Reply Cancel reply

Latest comments

Results: Frequency response of sound w/o obstacles

Contents

Related articles

Comments (6) Add comment

Leave a Reply Cancel reply

Latest comments
